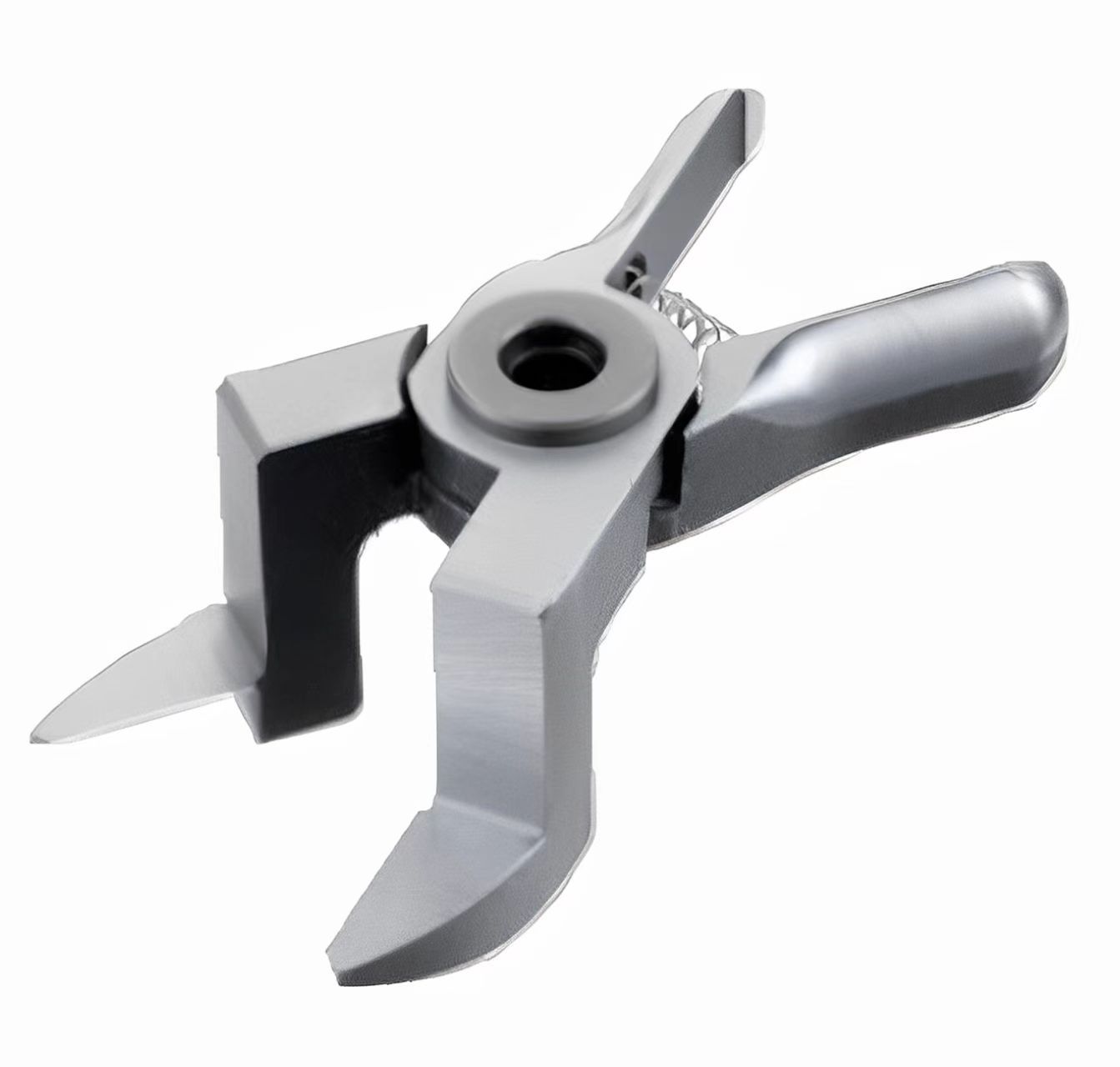

AH Crank blades for plastic-pull

The pneumatic scissors are an efficient and precise processing tool for the flow ports in industrial automation, especially in the field of injection molding. It is usually a key component of the end effector (EOAT, End Of Arm Tooling) of the mechanical arm and is used to automatically trim the gate (or called the runner) of plastic products.

Product Details

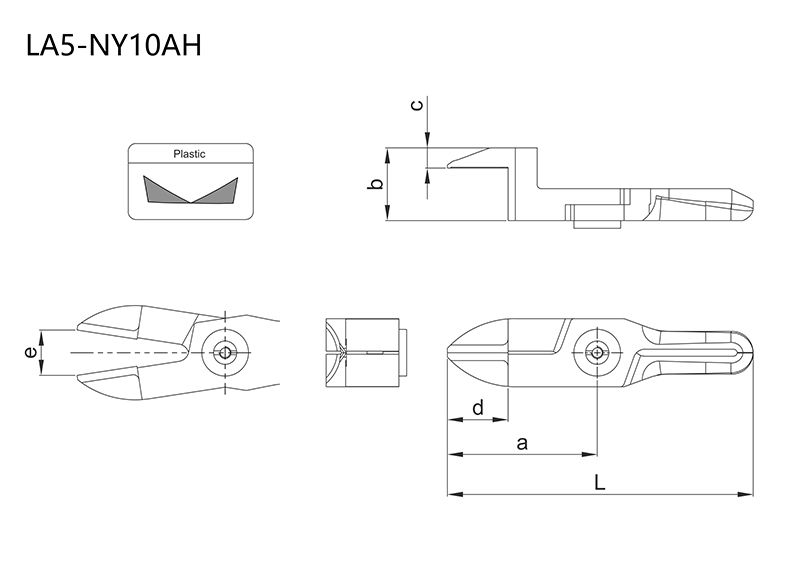

                          Model NO. Size(mm) Weight(g) Material Application model
  a b c d e L
0
LA5-NY10AH
33 20 5 12 8 66 43 Special alloy steel LA5-NY10
0
LA5-NY15AH
38 21.5 5.5 13 11 76 63 Special alloy steel LA5-NY15
0
LA5-NY25AH
46 24 6 17 13 92 110 Special alloy steel LA5-NY20
