AMR Cross shank bits for resin-pull

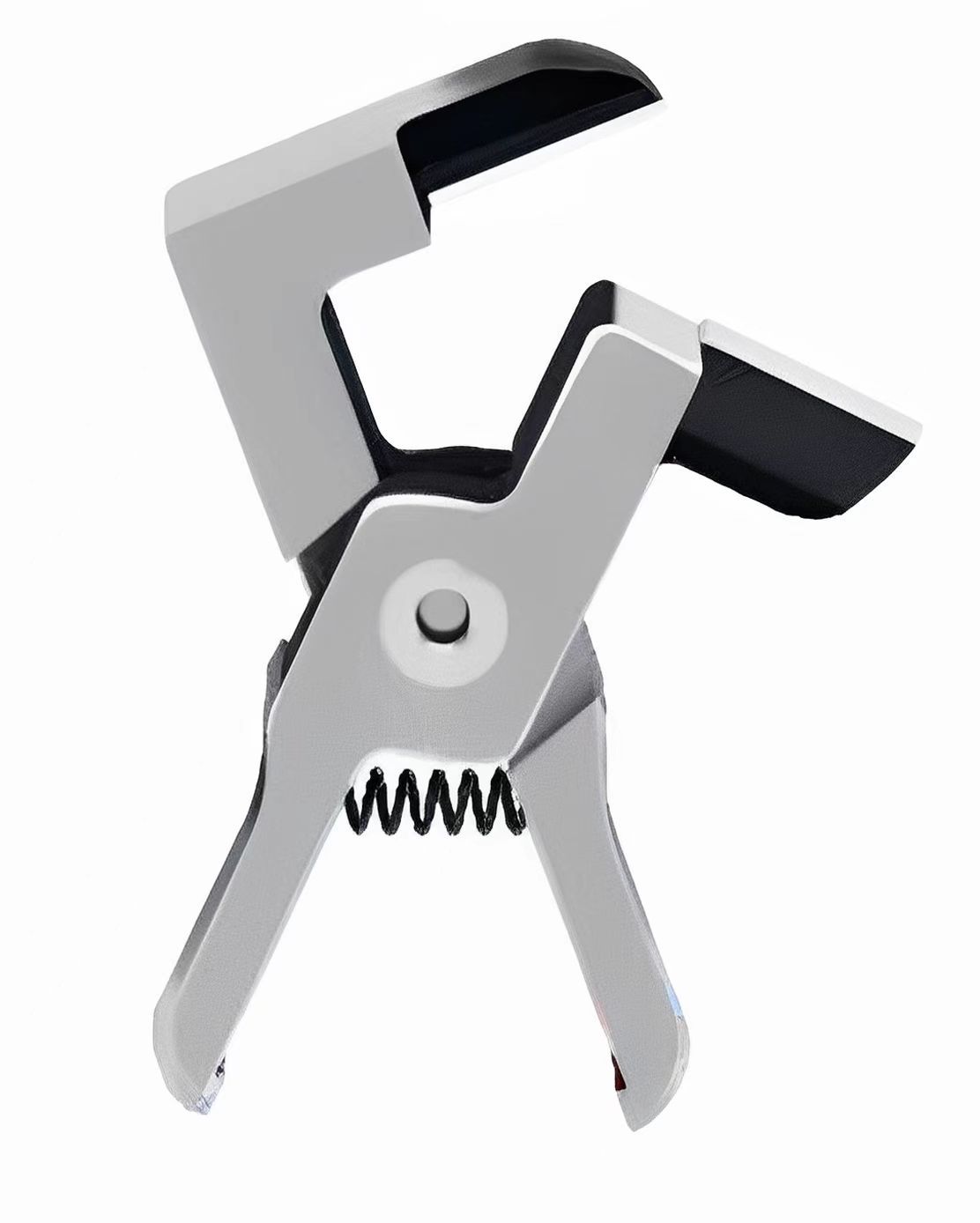

The pneumatic scissors are an efficient and precise processing tool for the flow orifices in industrial automation, especially in the field of injection molding. It is usually a key component of the end effector (EOAT, End Of Arm Tooling) of the mechanical arm and is used to automatically trim the gates (or called runners) of plastic products.

Product Details

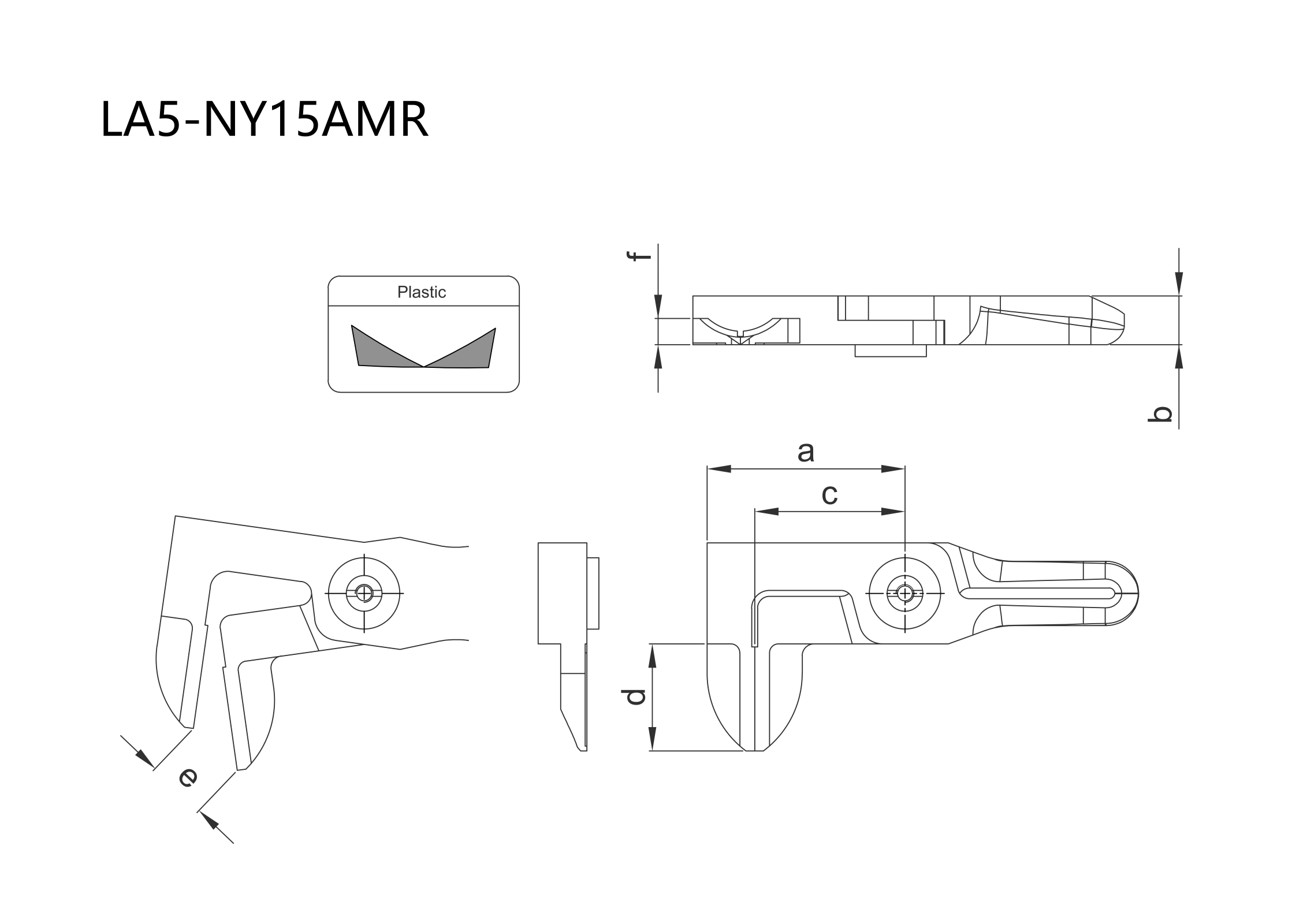

                          Model NO. Size(mm) Weight(g) Material Application model
  a b c d e f
0
LA5-NY15AMR
33 8.2 25 16 10 4.5 120 Special alloy steel LA5-NY15
0
LA5-NY25AMR
37 10 28 19 12 6 120 Special alloy steel LA5-NY25
