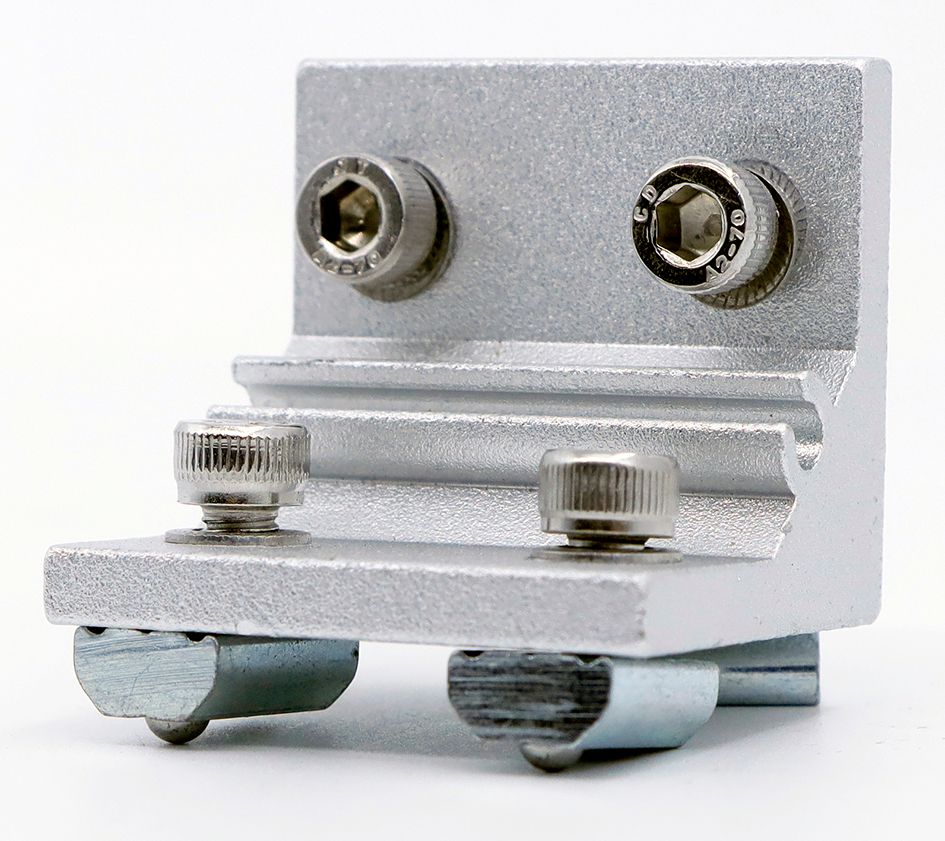

Angle Bracket For Profiles
Corner brackets are one of the most common and intuitive connectors in aluminum profile frame systems. They are mainly used to firmly connect two or three profiles at 90° right angles (or other angles) to form the corners of the frame. Its core function is to enhance structural stability and prevent twisting or disassembly at connection points.

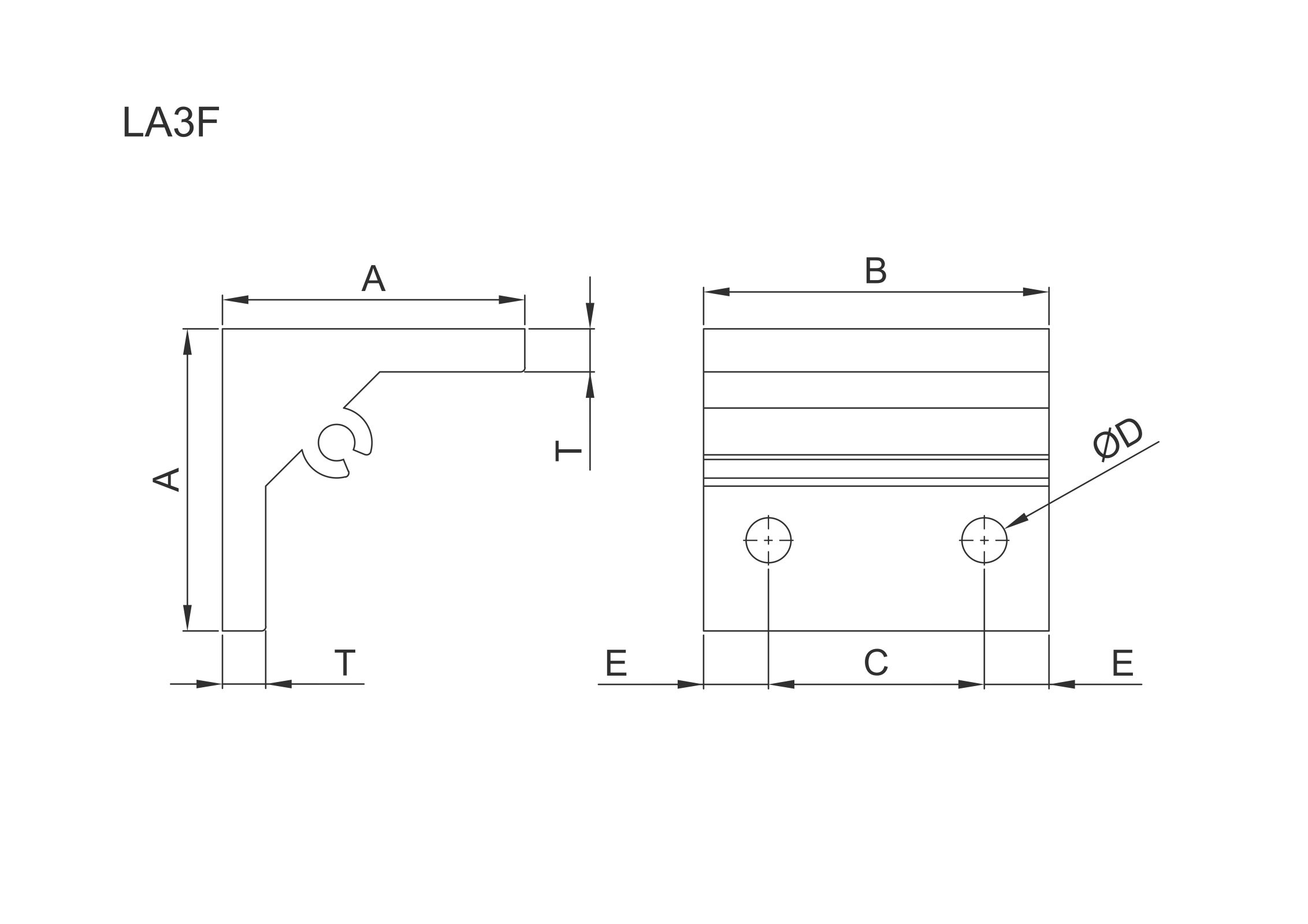

Product Details
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Weight |
|
0
|
35 | 18 | － | Ø5.2 | 9 | 5 | 26g |
|
0
|
35 | 40 | 25 | Ø5.2 | 7.5 | 5 | 53g |
