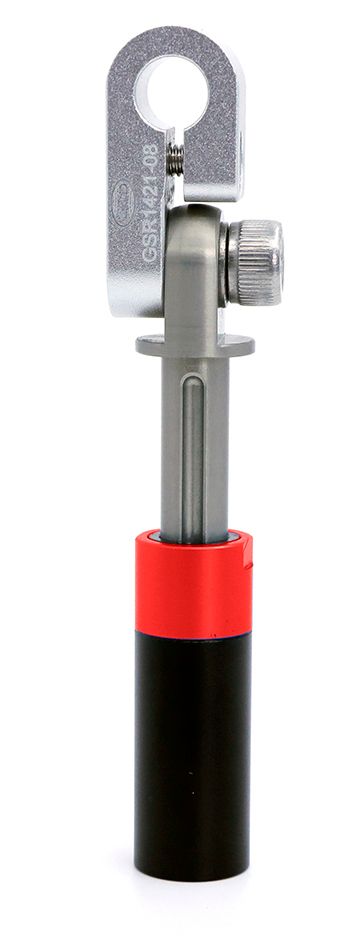

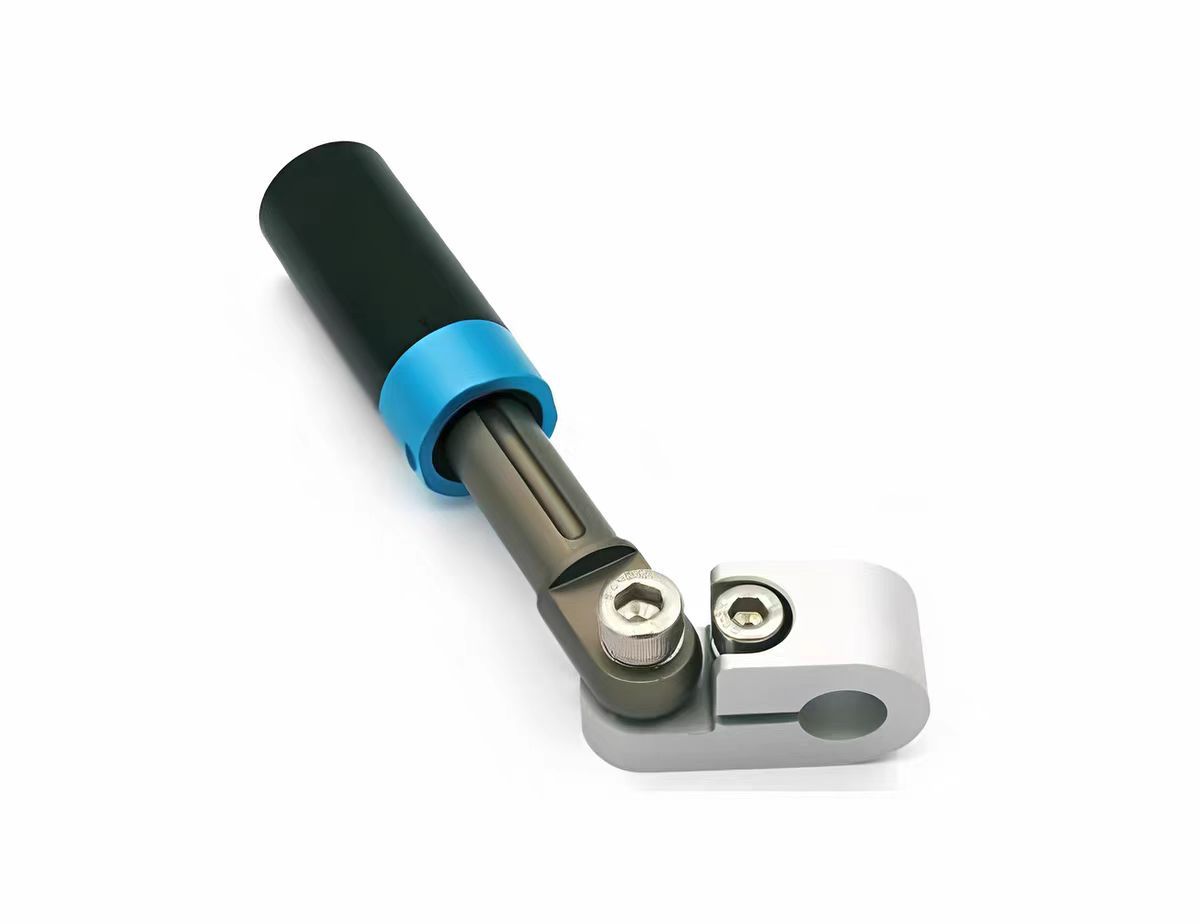

Buffer Support LA4M
The buffer support is a crucial safety component on the end-of-arm tooling (EOAT) of industrial robots. It is usually installed between the robot flange and the execution tool (such as a gripper, suction cup, welding gun, etc.). Its core function is like a "shock absorber", used to absorb, buffer and dissipate the unexpected impact energy generated during the robot's movement, thereby protecting the expensive robot body and the precise end tools from damage.
Product Details

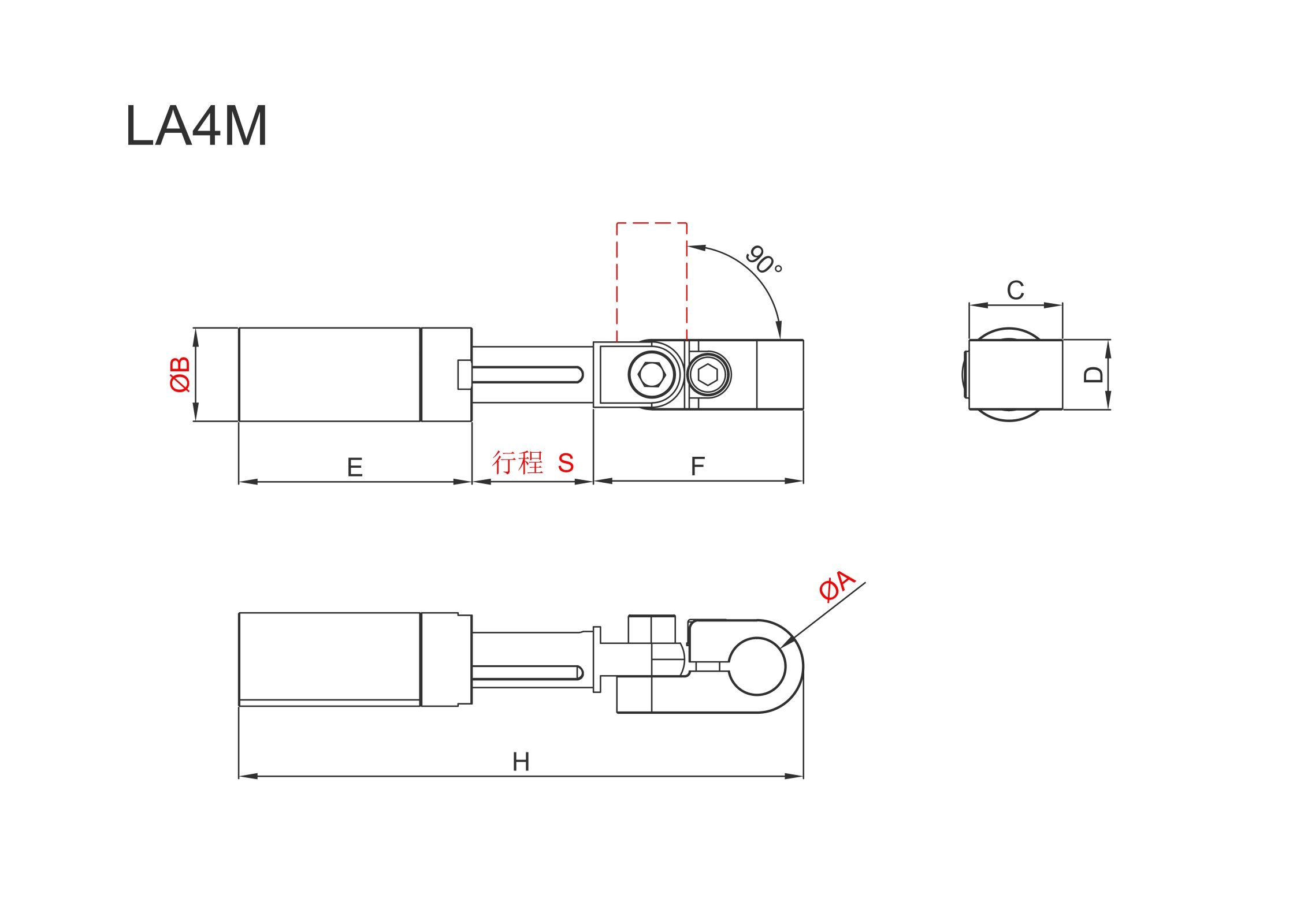

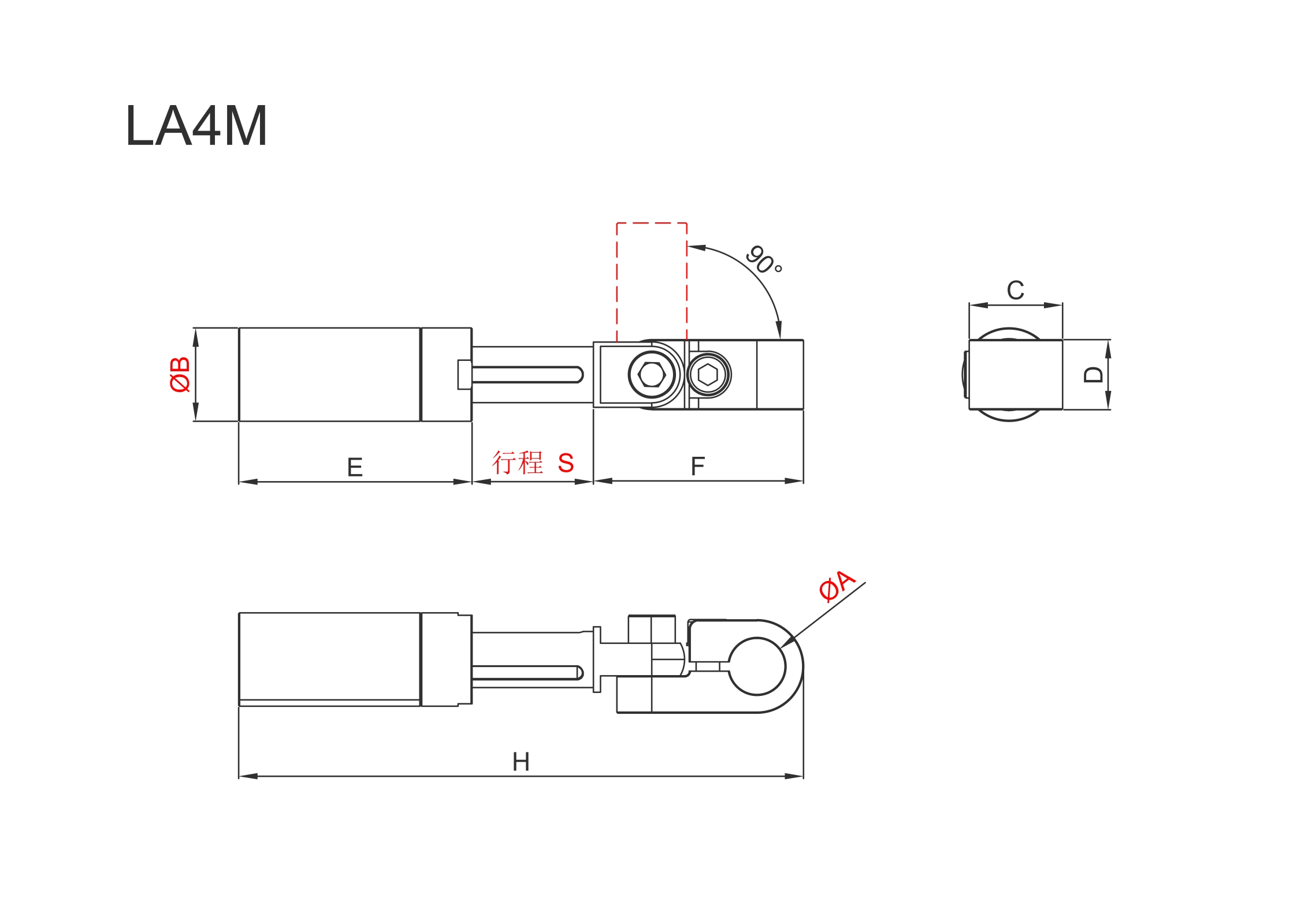

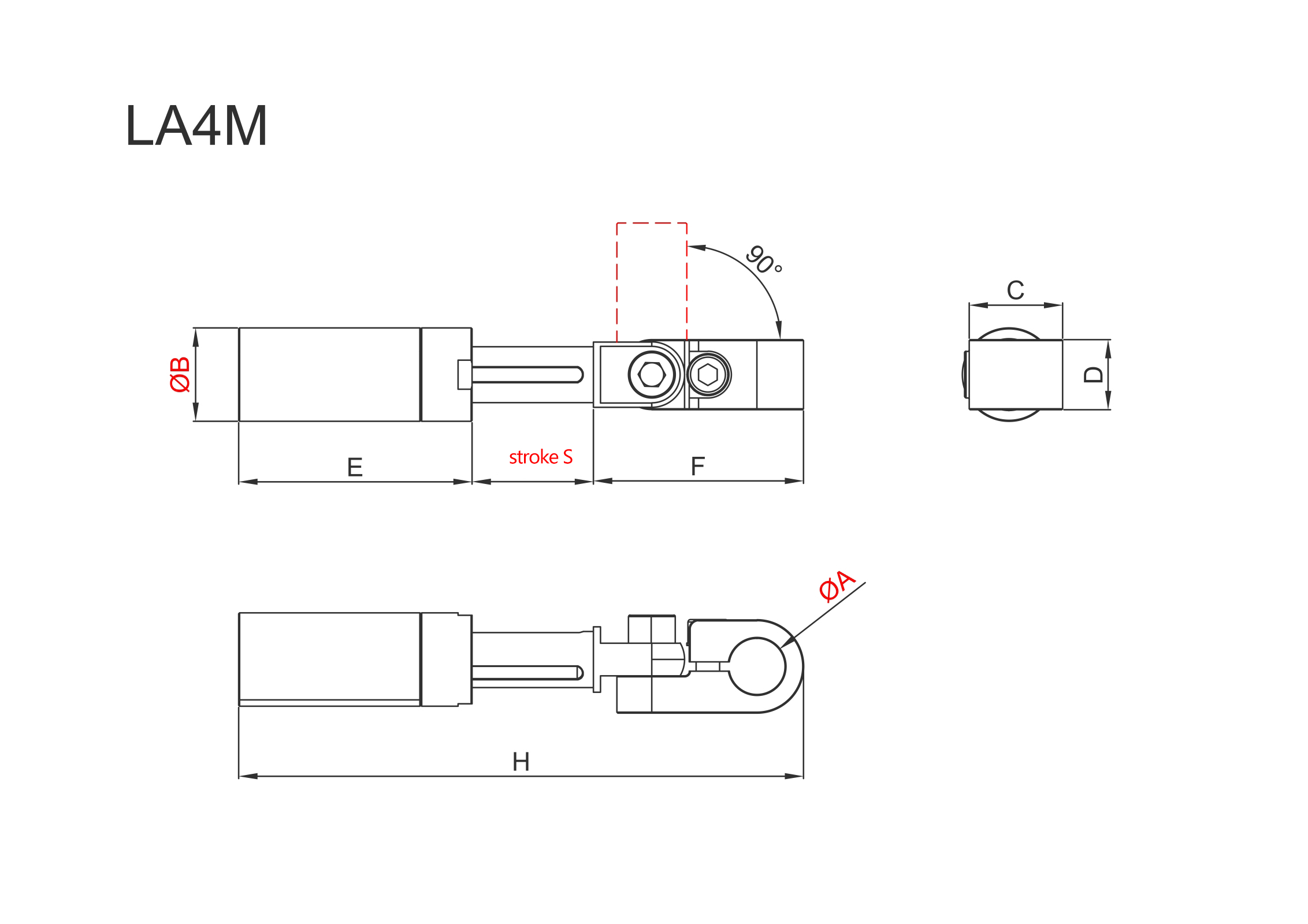

| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | H(mm) | S(mm) | Weight |
|
0
|
8 | 14 | 15 | 12.5 | 40 | 36.75 | 97.75 | 21 | 36g |
|
0
|
10 | 14 | 15 | 12.5 | 40 | 36.75 | 97.75 | 21 | 36g |
|
0
|
10 | 14 | 20 | 15 | 60 | 45.5 | 139 | 36.5 | 54g |
|
0
|
10 | 20 | 20 | 15 | 50 | 45.5 | 121.5 | 26 | 74g |
|
0
|
12 | 20 | 20 | 15 | 50 | 45.5 | 121.5 | 26 | 73g |
|
0
|
10 | 20 | 20 | 15 | 84 | 45.5 | 180.5 | 51 | 111g |
|
0
|
12 | 20 | 20 | 15 | 84 | 45.5 | 180.5 | 51 | 110g |
