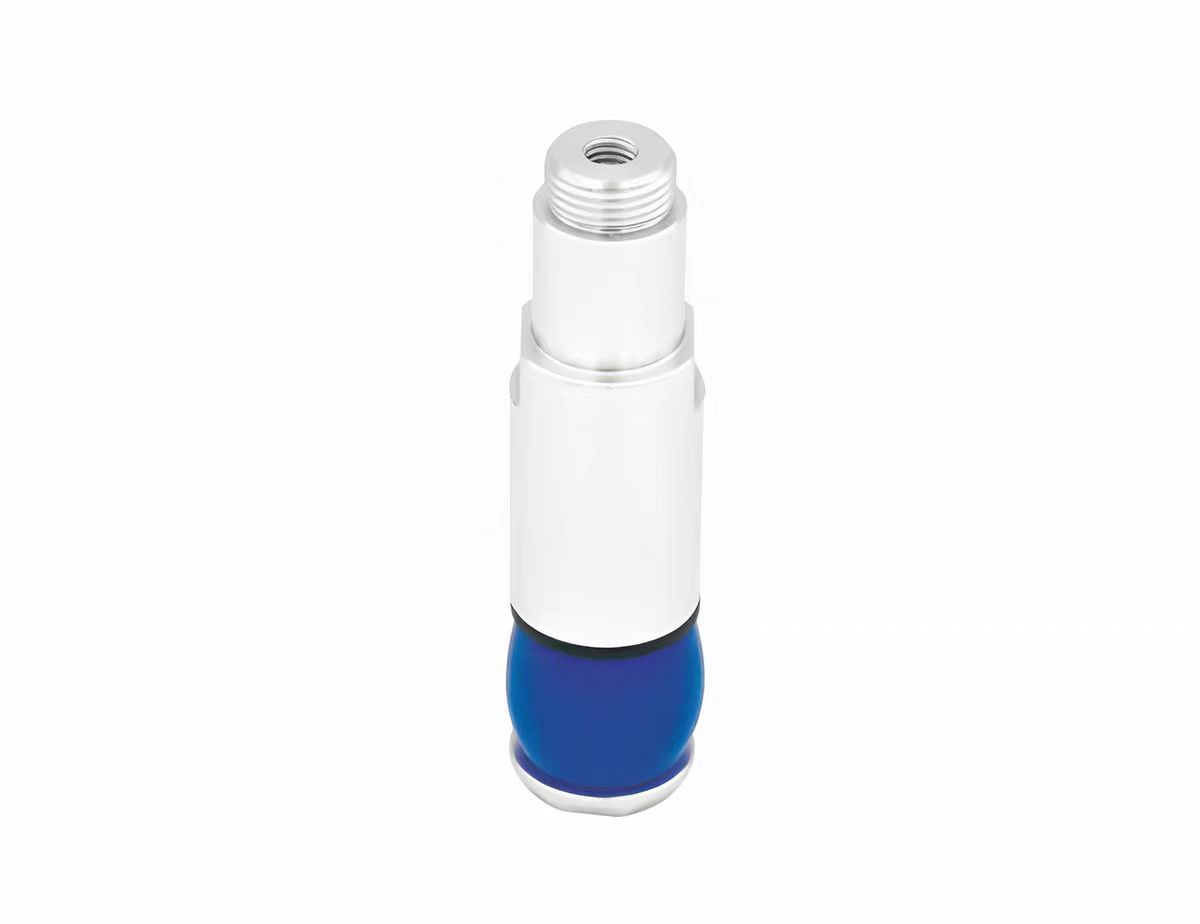

Bulging Device LA4-F18HT

The bulginger is a powerful, efficient and reliable cold assembly tool. It causes permanent plastic deformation of metal pipe fittings through the internal hydraulic pressure, thereby creating highly strong and highly sealed permanent connections. It is an indispensable key process equipment in modern manufacturing, especially in the fields of heat exchange and pressure vessels.

Product Details

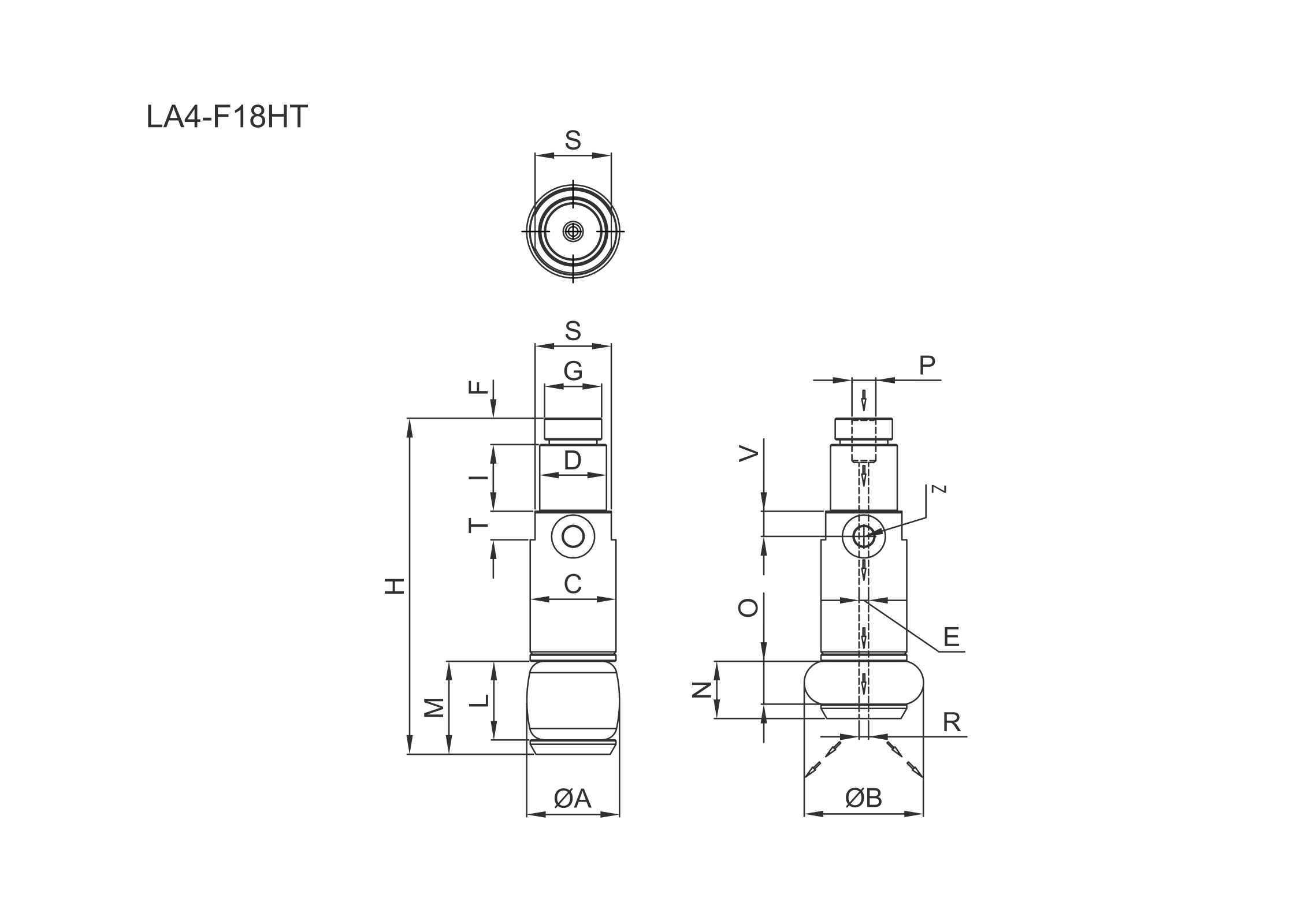

                          Model ØA ØB ØC ØD ØE F G H I L M N O P R S T V Z Weight
0
LA4-F18HT
19.5 25 18 14 2.5 5.5 M12x1 70.5 14 16.5 19.5 12 9 M5 M3 16 6 5.3 M5 27.4g
