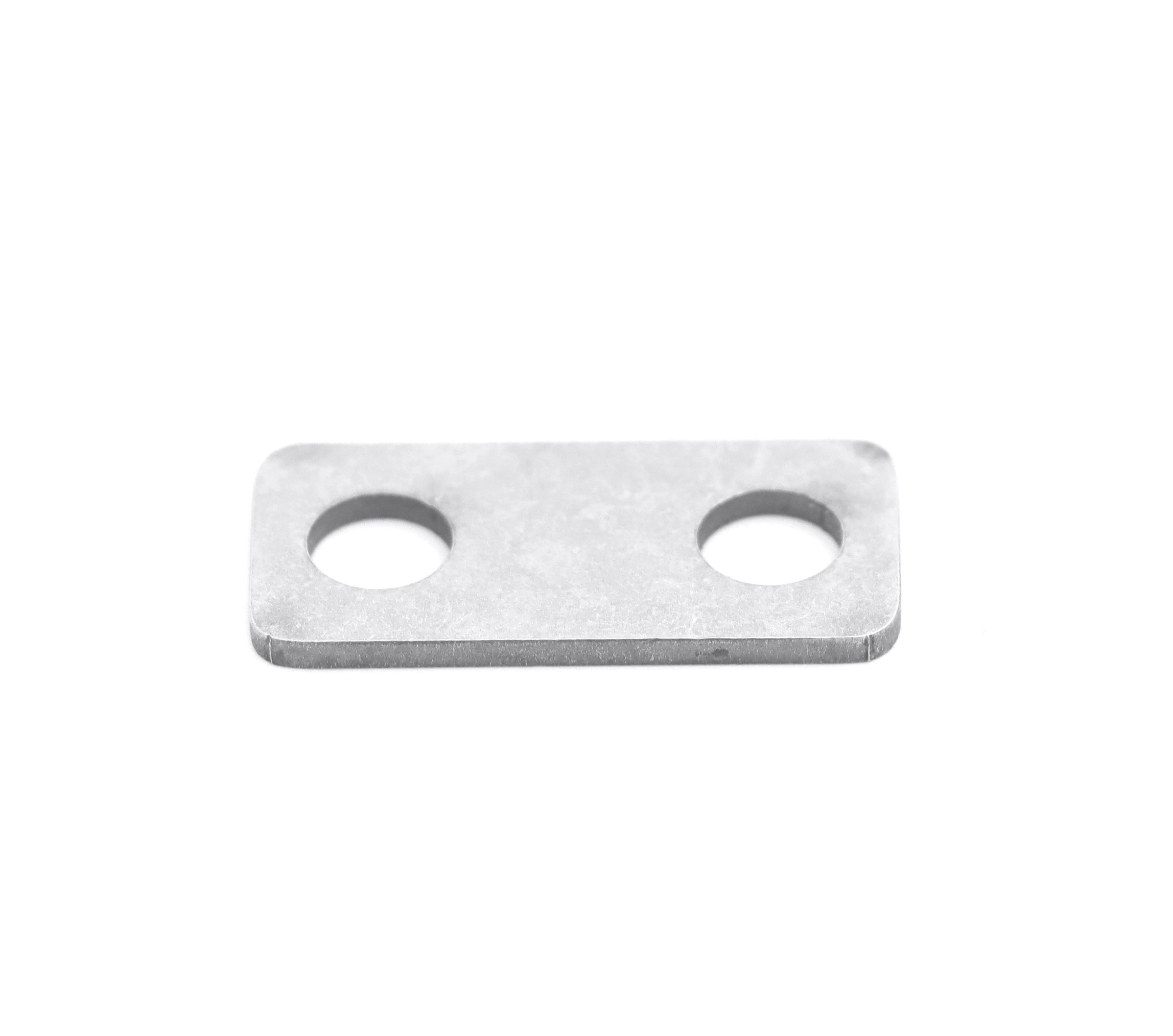

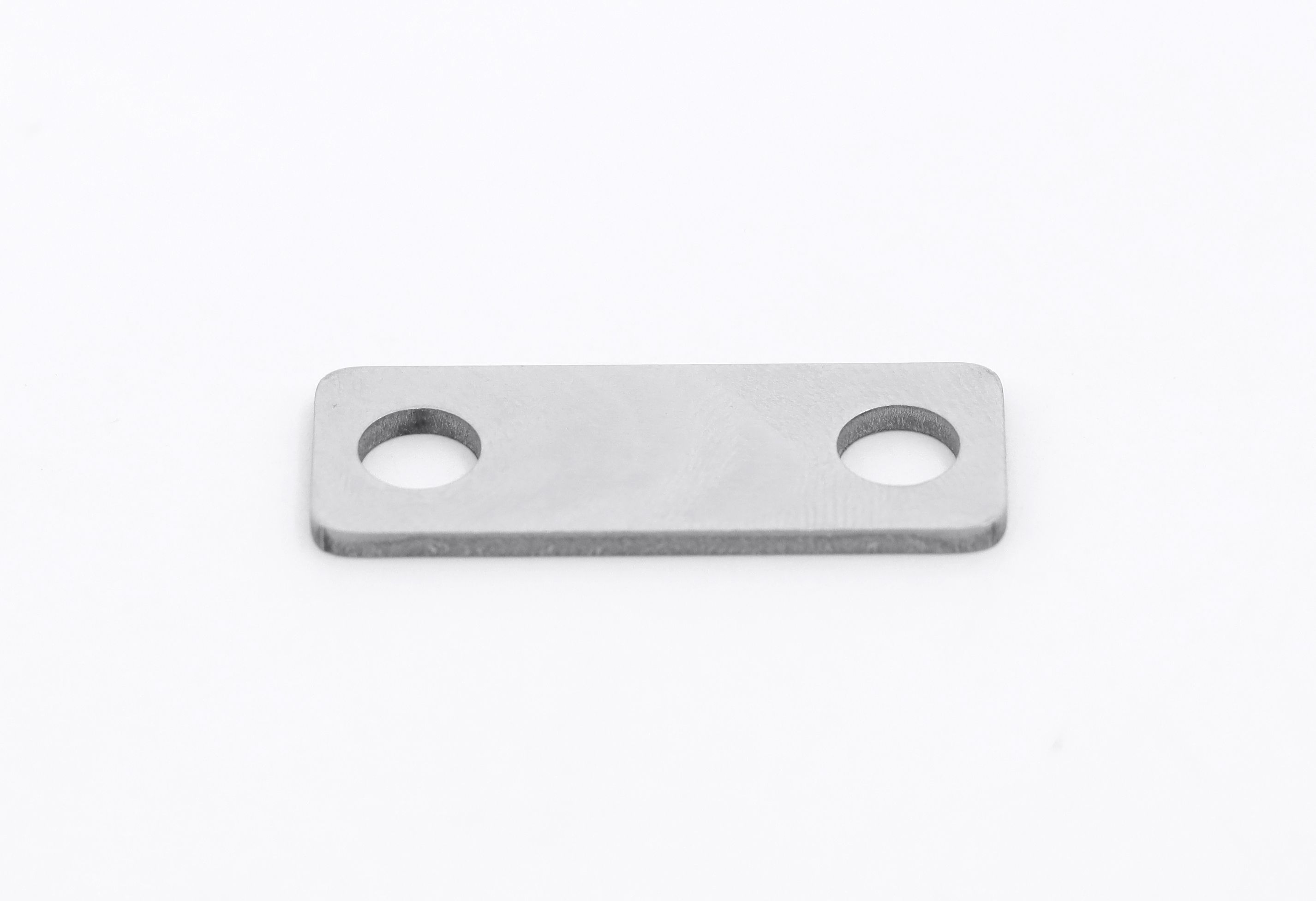

Double Holes Shim
The double-hole flat pad is a compact yet powerful "master of adjustment and locking". It transforms simple physical principles into extremely practical engineering solutions, perfectly solving the problems of precise positioning and anti-vibration locking on modular aluminum profile systems. It is an indispensable tool for any engineer and technician engaged in equipment assembly, fixture design and automation integration.
Product Details

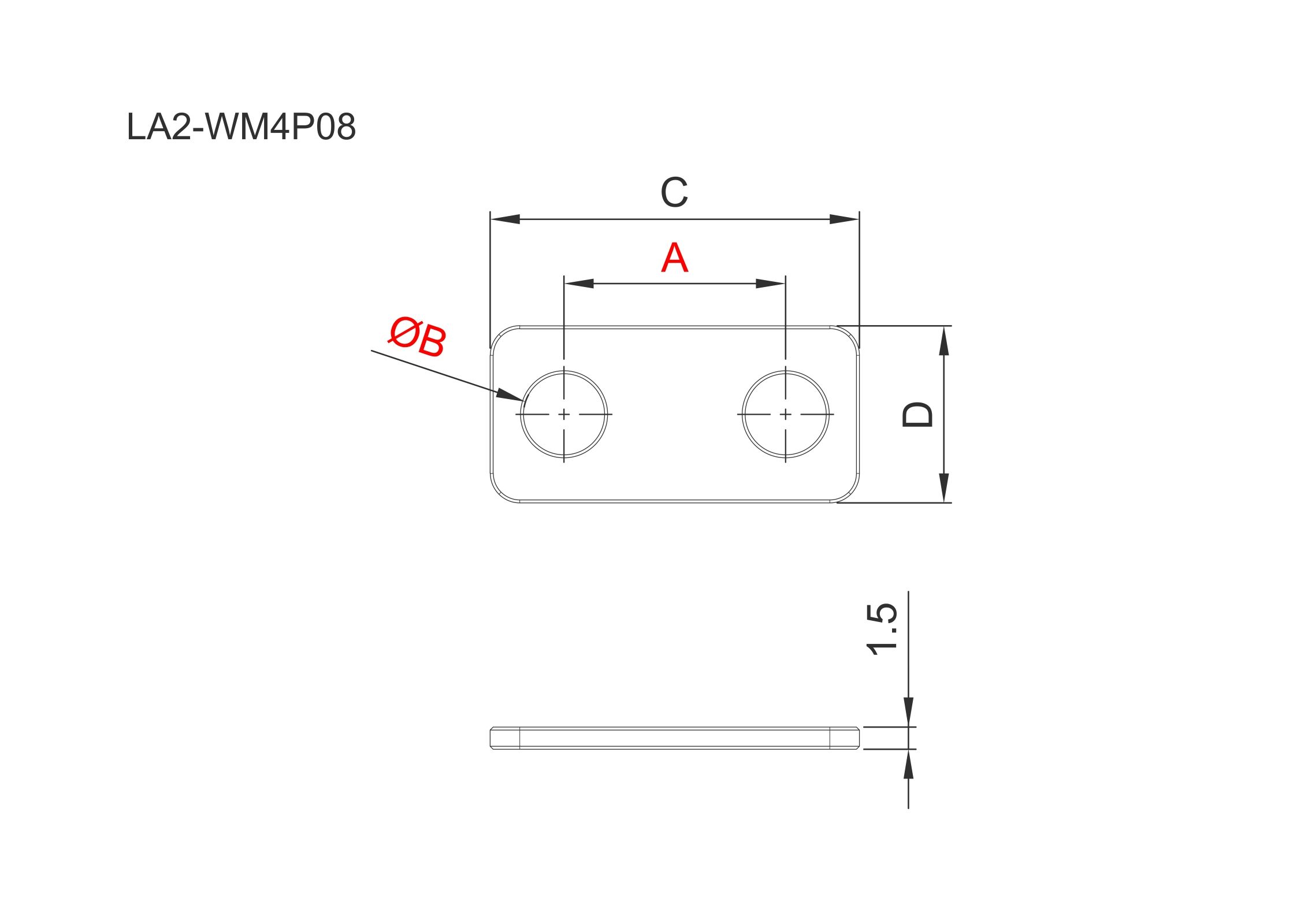

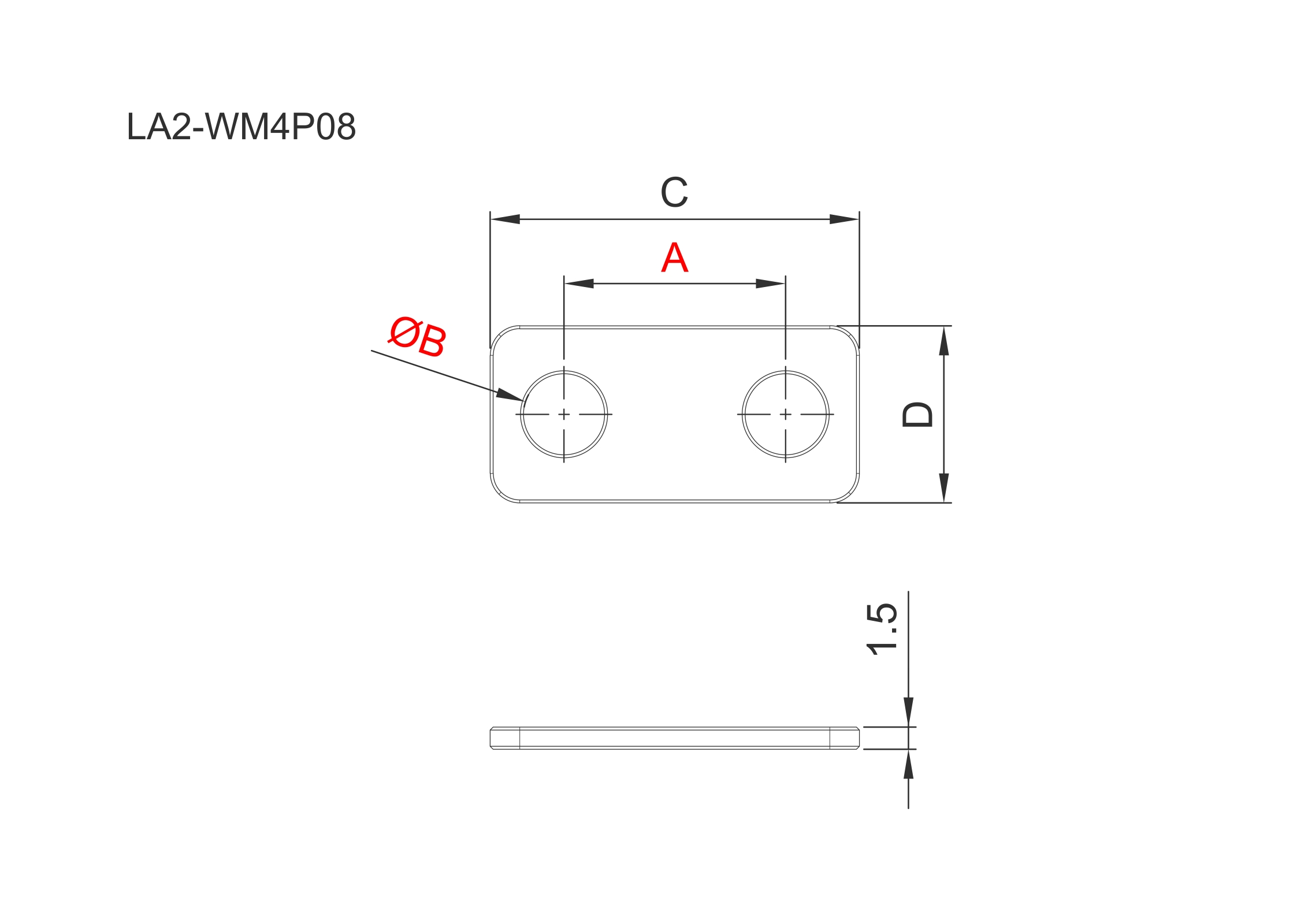

| Model | A(mm) | B(mm) | C(mm) | D(mm) | Weinght |
|
0
|
8 | 4.5 | 16 | 12 | 1.8g |
|
0
|
10 | 5.5 | 20 | 12 | 2.2g |
|
0
|
15 | 5.5 | 25 | 12 | 2.5g |
|
0
|
17 | 5.5 | 25 | 12 | 3.0g |
|
0
|
22 | 5.5 | 32 | 12 | 3.3g |
|
0
|
25 | 5.5 | 35 | 12 | 3.5g |
