ElbowArm

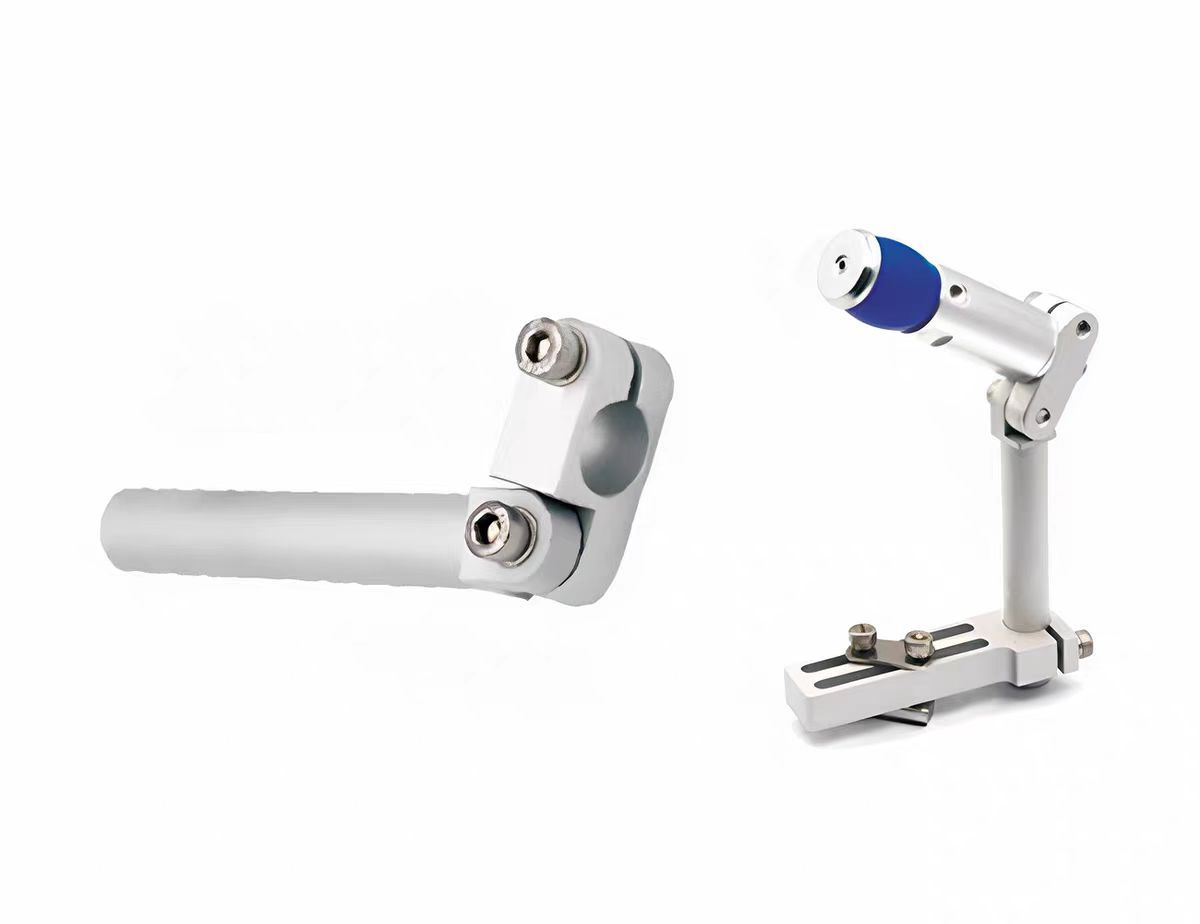

The bent arm is a typical mechanical support and positioning device, usually consisting of one or more arm rods connected through hinge points. Its core function is to flexibly extend, position and fix equipment or objects in three-dimensional space, and provide stable support at the required position. It perfectly resolves the contradiction between "extension" and "stability".
Product Details

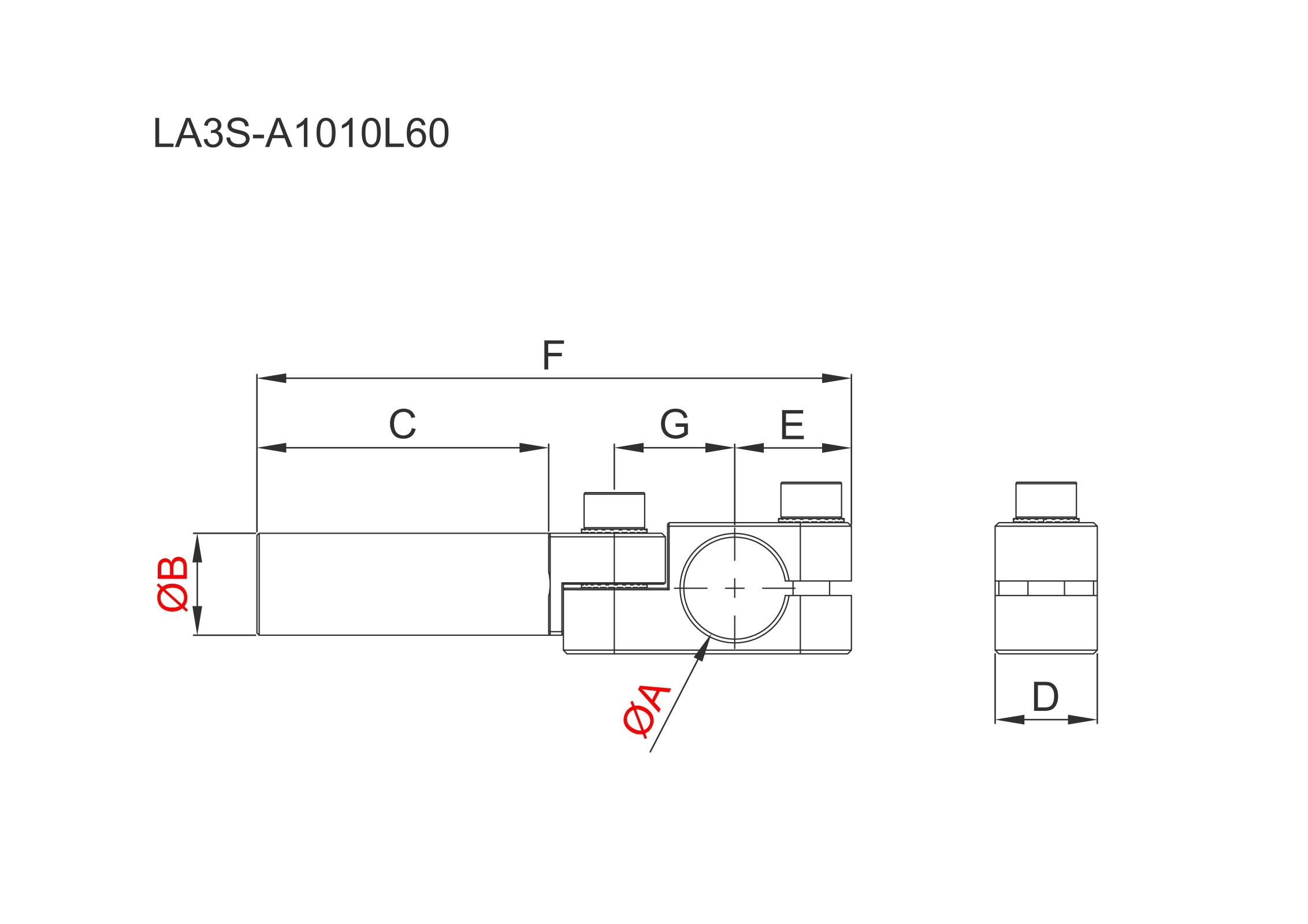

| Model | A(mm) | B(mm) | c(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight |
|
0
|
Ø10 | Ø10 | 60 | 10 | 13 | 93 | 12.5 | 20g |
|
0
|
Ø12 | Ø12 | 60 | 12 | 15 | 98 | 14.5 | 22g |
|
0
|
Ø14 | Ø14 | 40 | 14 | 16 | 82 | 16.5 | 32g |
|
0
|
Ø14 | Ø14 | 80 | 14 | 16 | 122 | 16.5 | 42g |
|
0
|
Ø14 | Ø14 | 120 | 14 | 16 | 162 | 16.5 | 50g |
|
0
|
Ø20 | Ø20 | 50 | 20 | 19 | 104 | 22.5 | 70g |
|
0
|
Ø20 | Ø20 | 100 | 20 | 19 | 154 | 22.5 | 90g |
|
0
|
Ø20 | Ø20 | 150 | 20 | 19 | 204 | 22.5 | 120g |
