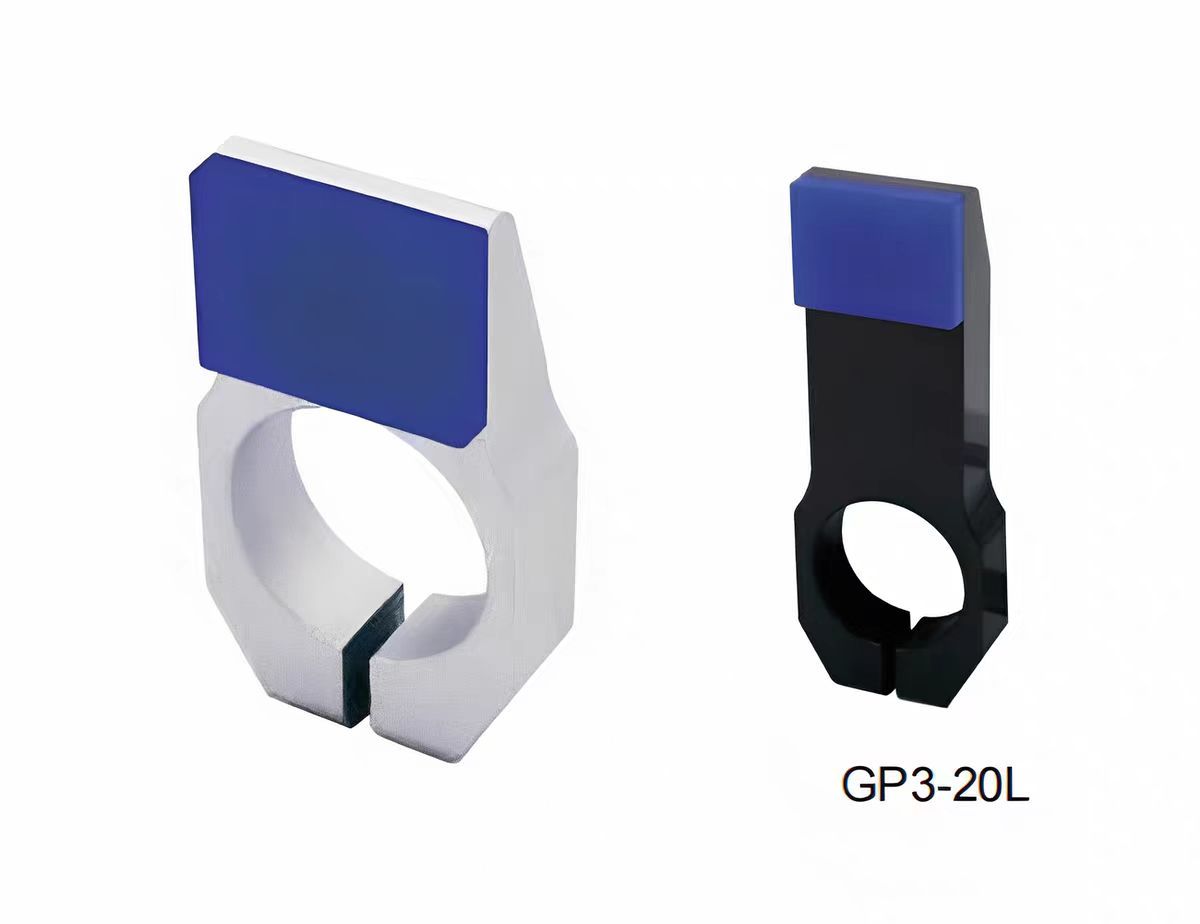

Finger Gripper Options LA4-J

The single-action indexing component refers to the replaceable and adjustable accessories or components configured for the single-action indexing mechanism in order to adapt to different workpieces, optimize the feeding performance, or achieve rapid production changeover. The core purpose of these options is to expand the application scope, enhance the feeding stability, protect the workpiece surface and improve the flexibility of the equipment while retaining the basic principle of the single-action lever (one-way drive, reverse return).

Product Details

                          Model A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) H(mm) G(mm) Weight
0

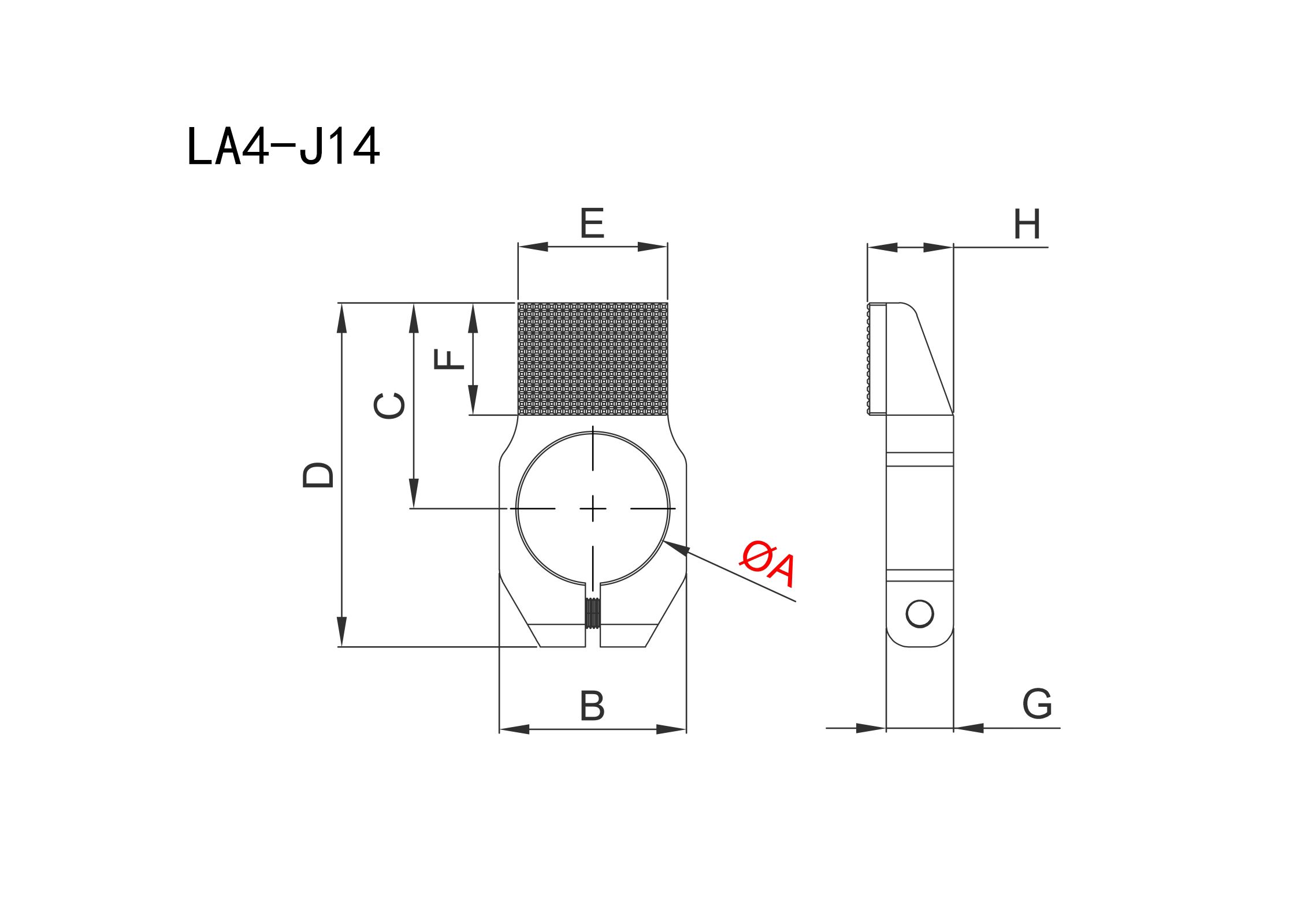

LA4-J14
Ø14 19 14 32 19 10 11 6 6g
0
LA4-J20
Ø20 25 20 43.5 27.5 27.5 15 7 12g
0

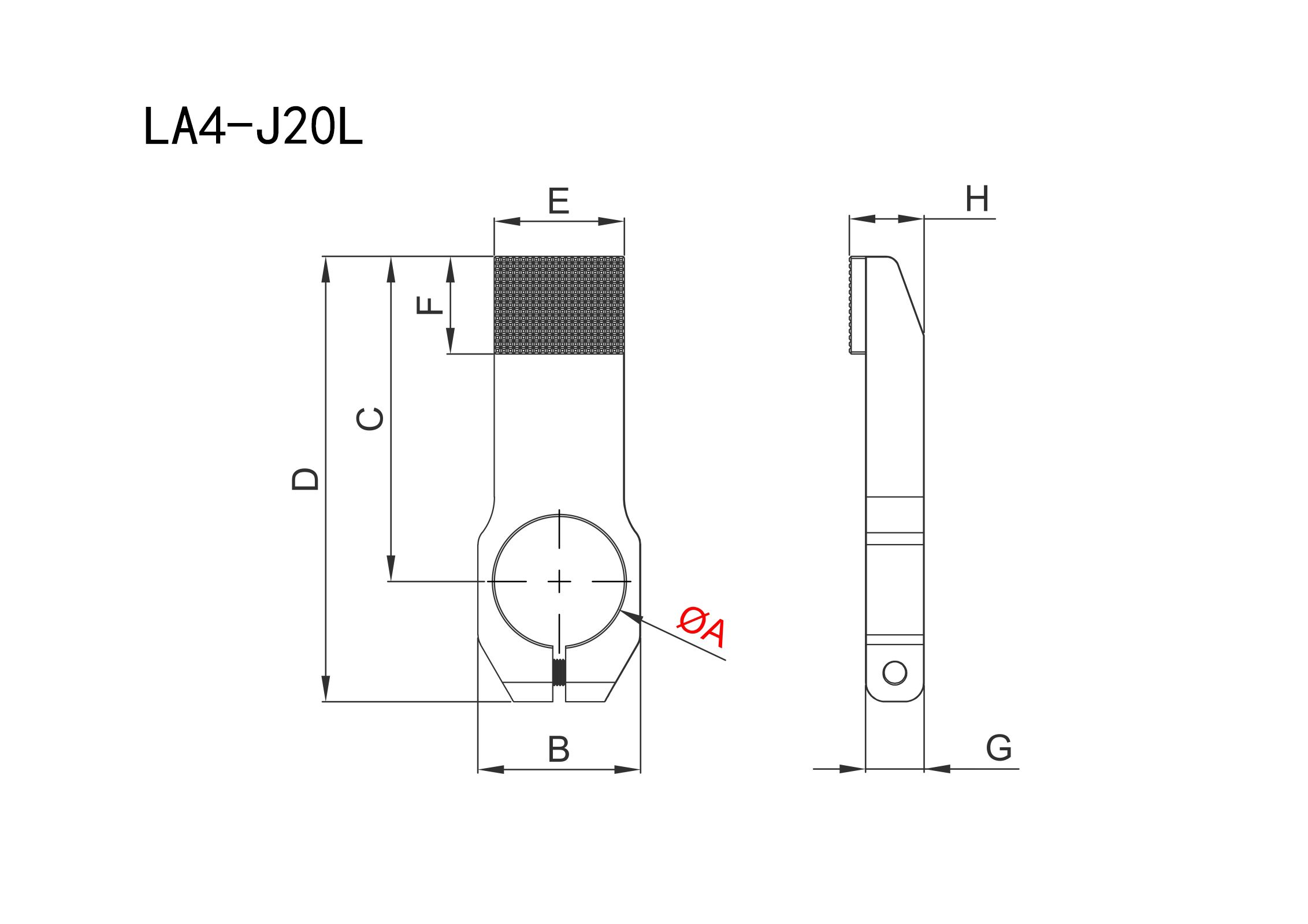

LA4-20L
Ø20 25 50 68.5 20 20 11.5 9 19.8g
0
LA4-30
Ø30 30 37 63 40 40 20 9 30g
