For Plastic LA5-F10P
An air-powered shearing tool is a type of pneumatic cutting device specifically integrated onto the end of the robotic arm (EOAT, End Of Arm Tooling). It utilizes compressed air as its power source and is precisely controlled by the robot controller, being used to perform automated, high-precision, and high-efficiency cutting tasks.
Product Details

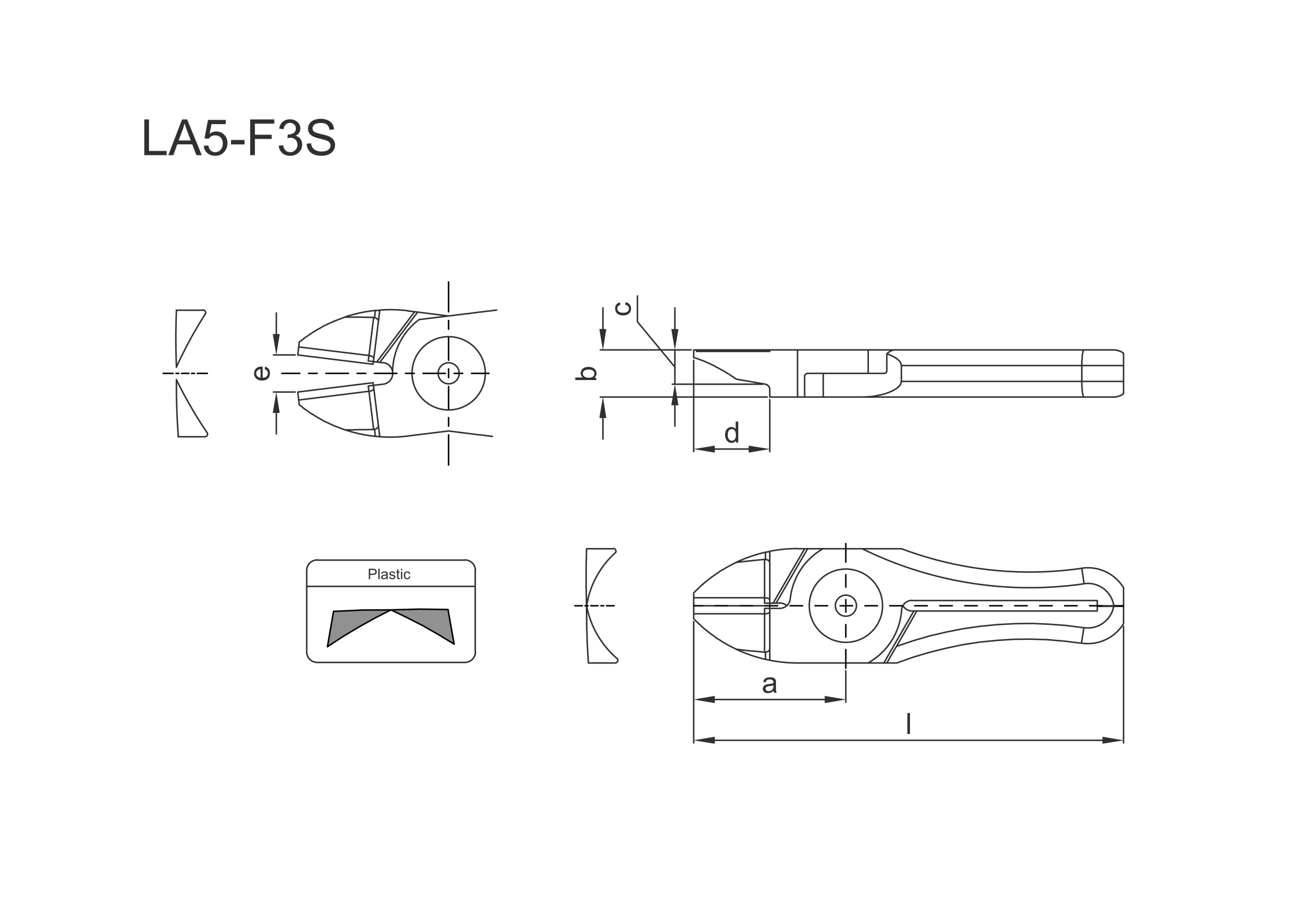

| Model NO. | Size(mm) | Weight(g) | Material | Application model | |||||
| a | b | c | d | e | L | ||||
|
0
|
24 | 7 | 4 | 12 | 4.2 | 64 | 35 | Special alloy steel | LA5-A3/LA5-B3/LA5-A3A/LA5-B3A/LA5-C3A/LA5-B3AL |
|
0
|
25 | 7 | 4 | 12 | 5 | 65 | 40 | Special alloy steel | LA5-B5/LA5-C5 |
|
0
|
28 | 9 | 6.5 | 13 | 6 | 82 | 80 | Special alloy steel | LA5-A10/LA5-B10/LA5-C10 |
|
0
|
35 | 12 | 8 | 18 | 10 | 95 | 135 | Special alloy steel | LA5-A20/LA5-B20/LA5-C20/LA5-A25/LA5-B25 |
|
0
|
65 | 17 | 11 | 35 | 16 | 150 | 450 | Special allov steel | LA5-A30/LA5-B30/LA5-C30 |
