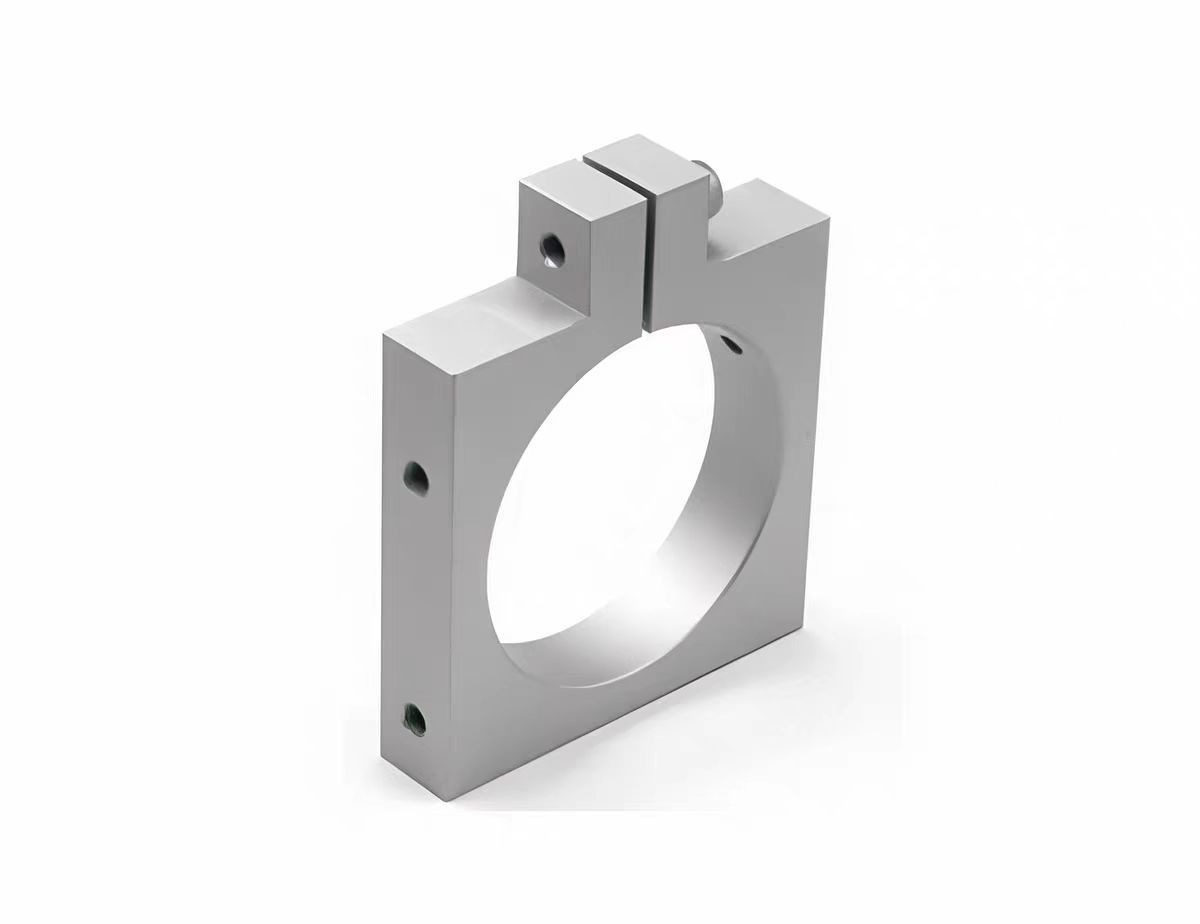

Gas Cut Bracket
The pneumatic cutter fixing bracket is a specialized workholding fixture designed specifically for fixing pneumatic shears (pneumatic cutters). Its core function is to securely attach the handheld pneumatic shears to the workbench, production line, or automated equipment, thereby transforming it into a small semi-automatic or fully automatic fixed cutting station.
Product Details

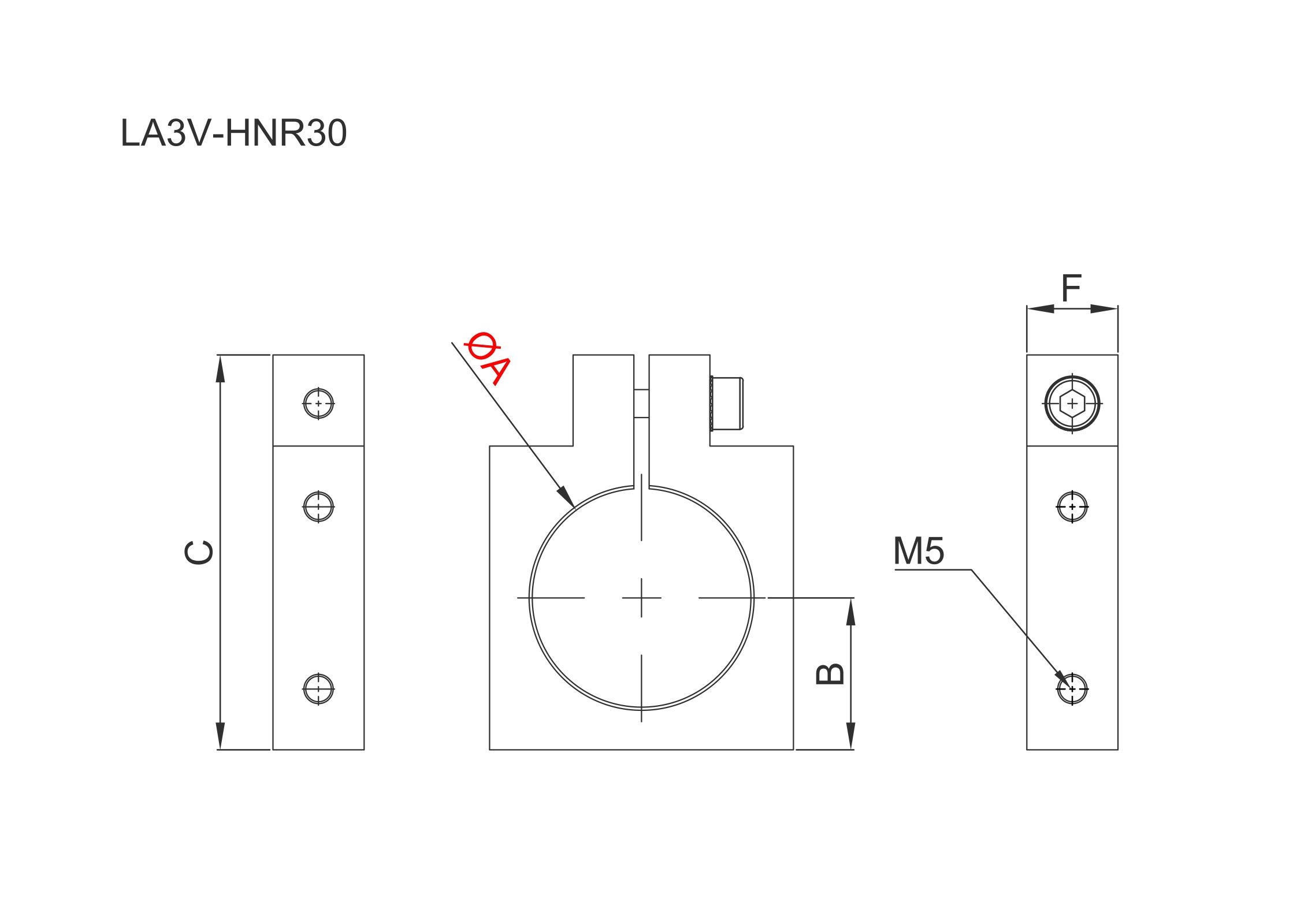

| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Weight | Application model |
|
0
|
56 | 35 | 85 | 10 | 40 | 15 | 111g | LA5-B30/LA5-B25/LA5-A30 |
|
0
|
45 | 30 | 75 | 10 | 40 | 15 | 93g | LA5-B20/LA5-A20 |
|
0
|
35 | 25 | 65 | 10 | 30 | 15 | 72g | LA5-B/LA5-A10 |
