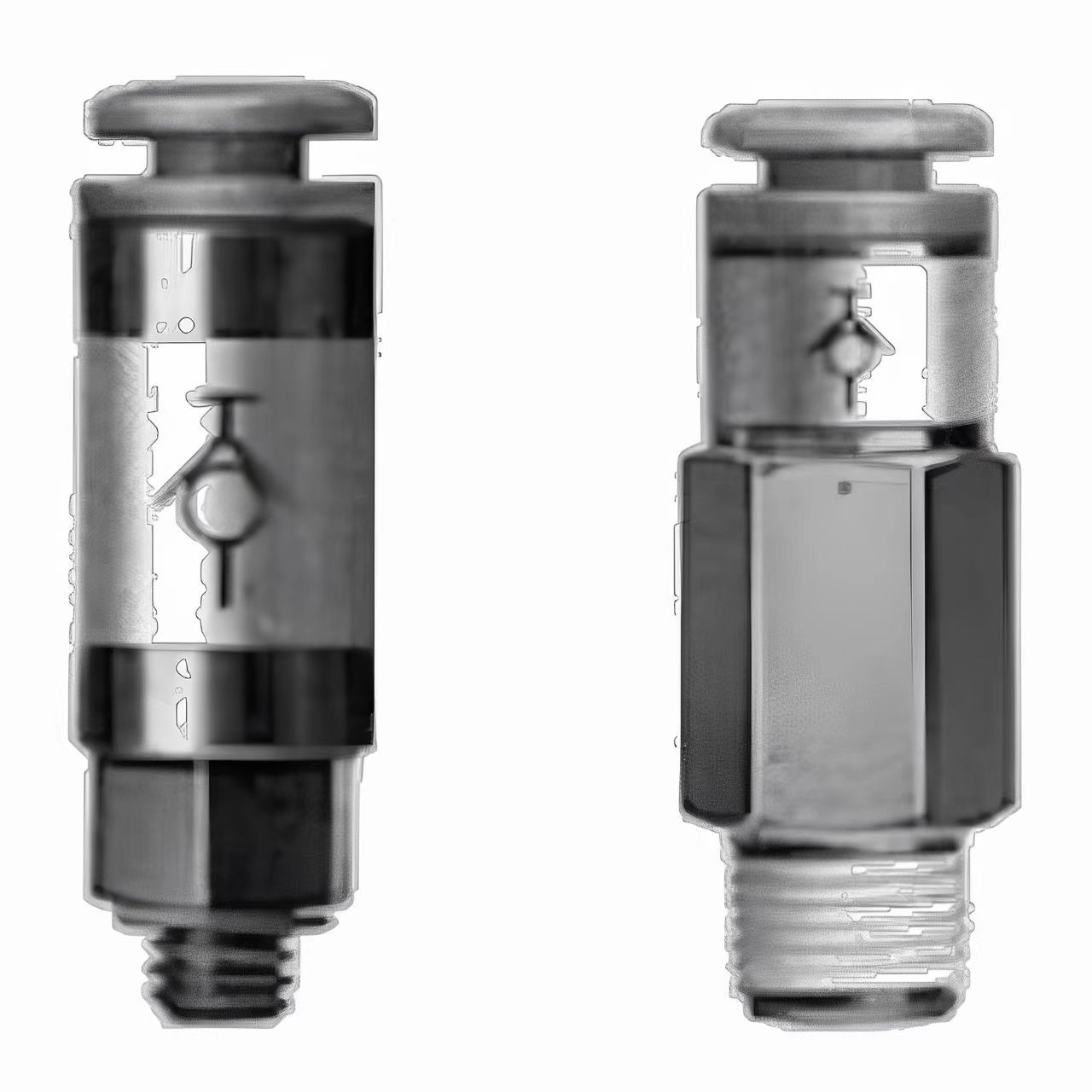

Joint LA7-KCH04-M5
The air pipe connector is a crucial pneumatic component connecting the end of the industrial robot arm with the end effector. It is a specially designed and optimized pneumatic connector specifically for the EOAT application scenarios of robots. They are responsible for transmitting the main air source from the internal or external pipelines of the robot arm to the end tool, and are the "last link" of the robot pneumatic system.
Product Details

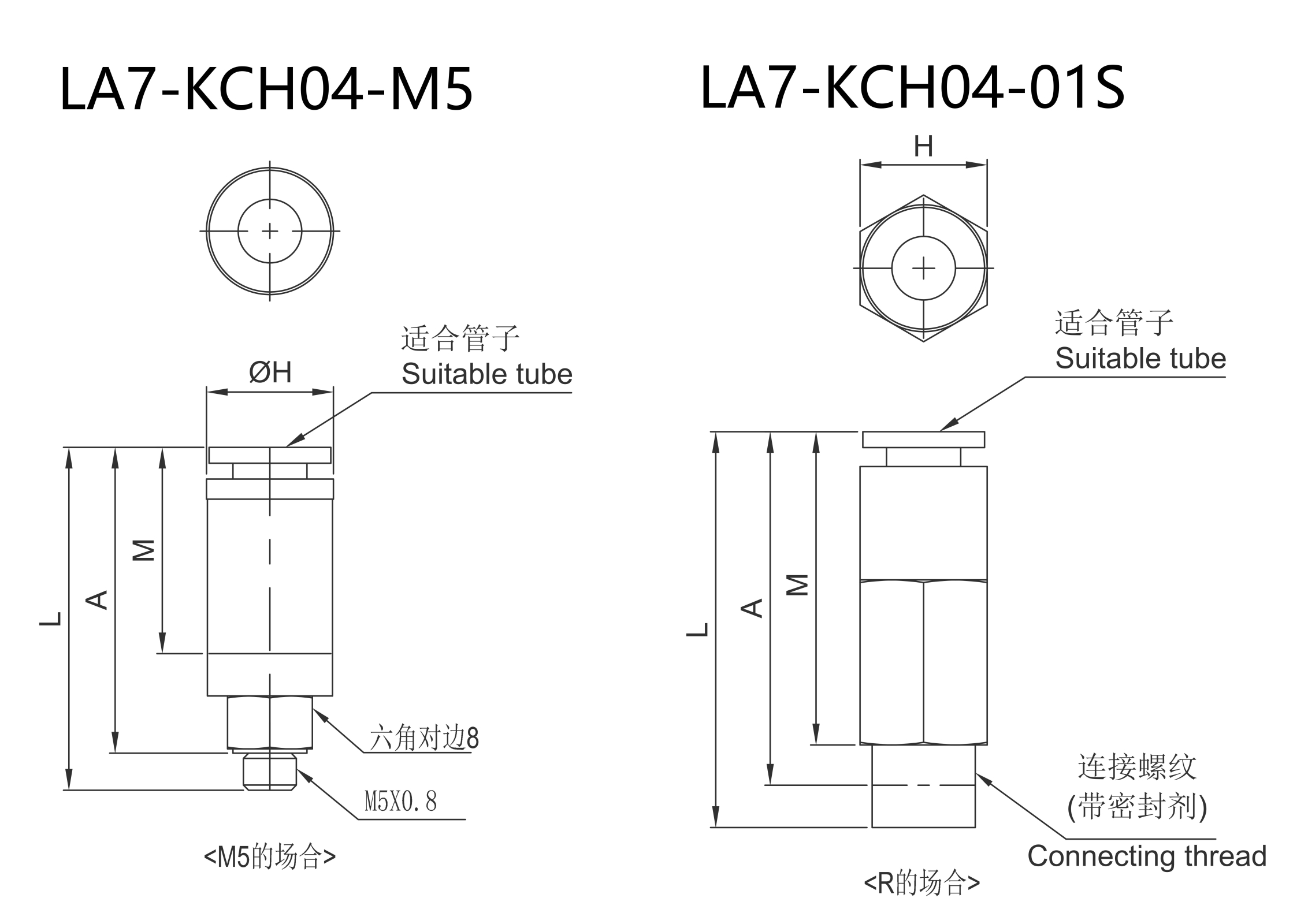

| Tube O.D.mm | Model | Connection thread M | H(mm) | L(mm) | A(mm) | M(mm) | Effective cross-sectional area mm | Weight | |
| Nylon | Polyurethane | ||||||||
| Ø4 |
0
|
M5x0.8 | 9.8 | 30.8 | 27.3 | 18 | 2.1 | 2.1 | 8g |
|
0
|
1/8 | 10 | 26.1 | 22.1 | 18 | 2.6 | 2.6 | 8g | |
| Ø6 |
0
|
M5x0.8 | 11.8 | 32.4 | 28.9 | 19.5 | 2.4 | 2.4 | 10g |
|
0
|
1/8 | 12 | 37.5 | 33.4 | 19 | 6.8 | 6.8 | 16g | |
| Ø8 |
0
|
1/8 | 14 | 42.4 | 38.4 | 21.5 | 16.2 | 13.1 | 20g |
| Reference size after R thread is screwed in | |||||||||
