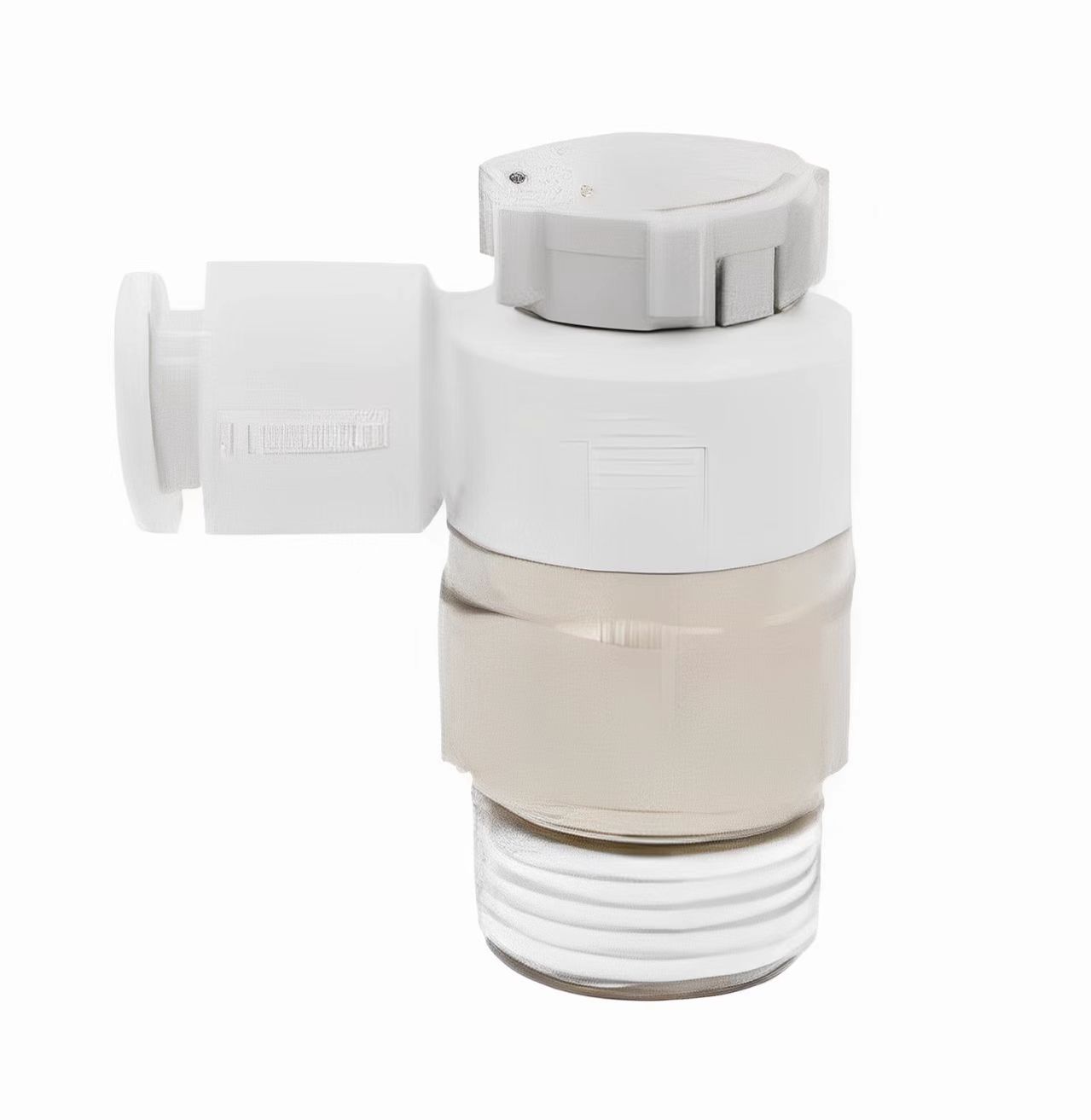

Joint LA722□1F-01-04SA

The air pipe connector is a crucial pneumatic component connecting the end of the industrial robot arm with the end effector. It is a specially designed and optimized pneumatic connector specifically for the EOAT application scenarios of robots. They are responsible for transmitting the main air source from the internal or external pipelines of the robot arm to the end tool, and are the "last link" of the robot pneumatic system.

Product Details

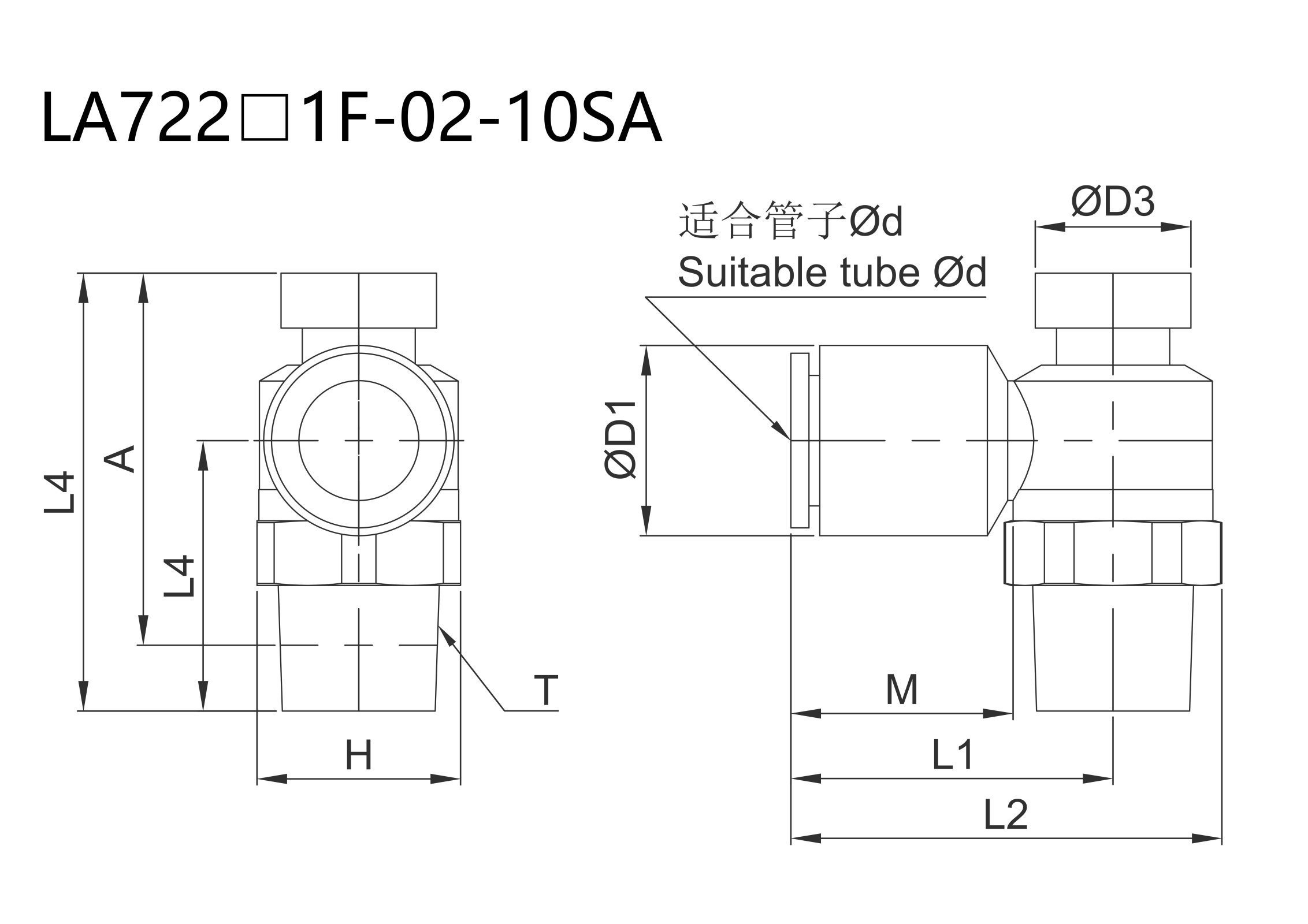

Ød(mm)	Model	T	H(mm)	ØD1(mm)	ØD3(mm)	L1(mm)	L2(mm)	L3(mm)	L4¹(mm)		A² (mm)		M(mm)	Weight
									Unlock	Lock in	Unlock	Lock in
Ø4	0 LA712□1F-01-04SA	1/8	13	8.2	12	19.1	26.2	19.1	30.6	29.2	27.5	26.1	13.3	9g
Ø6	0 LA712□1F-01-06SA	1/8	13	10.4	12	19.1	26.2	19.1	30.6	29.2	27.5	26.1	13.3	10g
Ø8	0 LA712□1F-01-08SA	1/8	13	132	12	22.4	29.5	19.1	30.6	29.2	27.5	26.1	14.2	11g
Ø10	0 LA712□1F-01-10SA	1/8	13	15.9	12	25.3	32.4	19.1	30.6	29.2	27.5	26.1	15.6	12g
Ø4	0 LA712□1F-02-04SA	1/4	17	8.2	13	20.9	30.2	22.6	36.6	35	31.1	29.5	13.3	18g
Ø6	0 LA712□1F-02-06SA	1/4	17	10.4	13	23.4	32.7	22.6	36.6	35	31.1	29.5	13.3	18g
Ø8	0 LA712□1F-02-08SA	1/4	17	13.2	13	23.9	33.2	22.6	36.6	35	31.1	29.5	14.2	19g
Ø10	0 LA712□1F-02-10SA	1/4	17	15.9	13	26.9	36.2	22.6	36.6	35	31.1	29.5	15.6	20g
Ø6	0 LA712□1F-02-06SA	1/4	19	10.4	16.6	21.8	32.1	36.4	50	48.4	44.5	42.9	13.3	40g
Ø8	0 LA712□1F-02-08SA	1/4	19	13.2	16.6	22.7	33	36.4	50	48.4	44.5	42.9	14.2	41g
Ø10	0 LA712□1F-02-10SA	1/4	19	15.9	16.6	26.7	37	35.7	50	48.4	44.5	42.9	15.6	42g
Ø6	0 LA712□1F-03-06SA	3/8	19	10.4	16.6	21.8	32.1	28.7	42.3	40.7	37.1	35.5	13.3	31g
Ø8	0 LA712□1F-03-08SA	3/8	19	13.2	16.6	22.7	33	28.7	42.3	40.7	37.1	35.5	14.2	31g
Ø10	0 LA712□1F-03-10SA	3/8	19	15.9	16.6	26.7	37	28	42.3	40.7	37.1	35.5	15.6	32g
Ø10	0 LA712□1F-04-10SA	1/2	24	15.9	18.8	27.4	40.3	36.2	50.8	49.2	43.7	42.1	15.6	54g
□ Symbol / Outlet throttling, 1 Inlet throttling.
