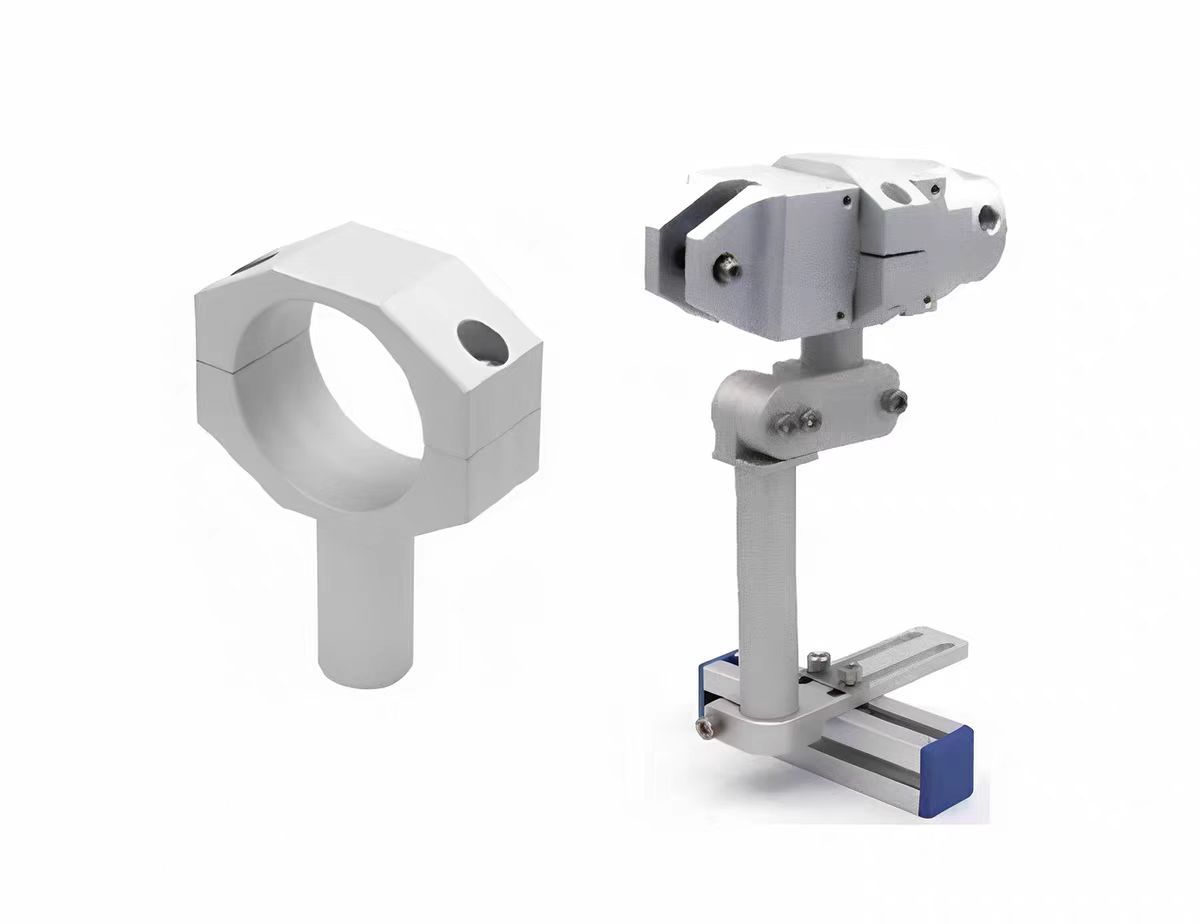

LA5-A Nipper Mounting Bracket
The scissors fixing bracket is specifically designed for installing, fixing and supporting the "X-shaped" scissors fork type lifting mechanism. It serves as the base or frame component for the entire scissors lifting system. Its core function is to ensure that the scissors mechanism operates stably, safely and precisely.
Product Details

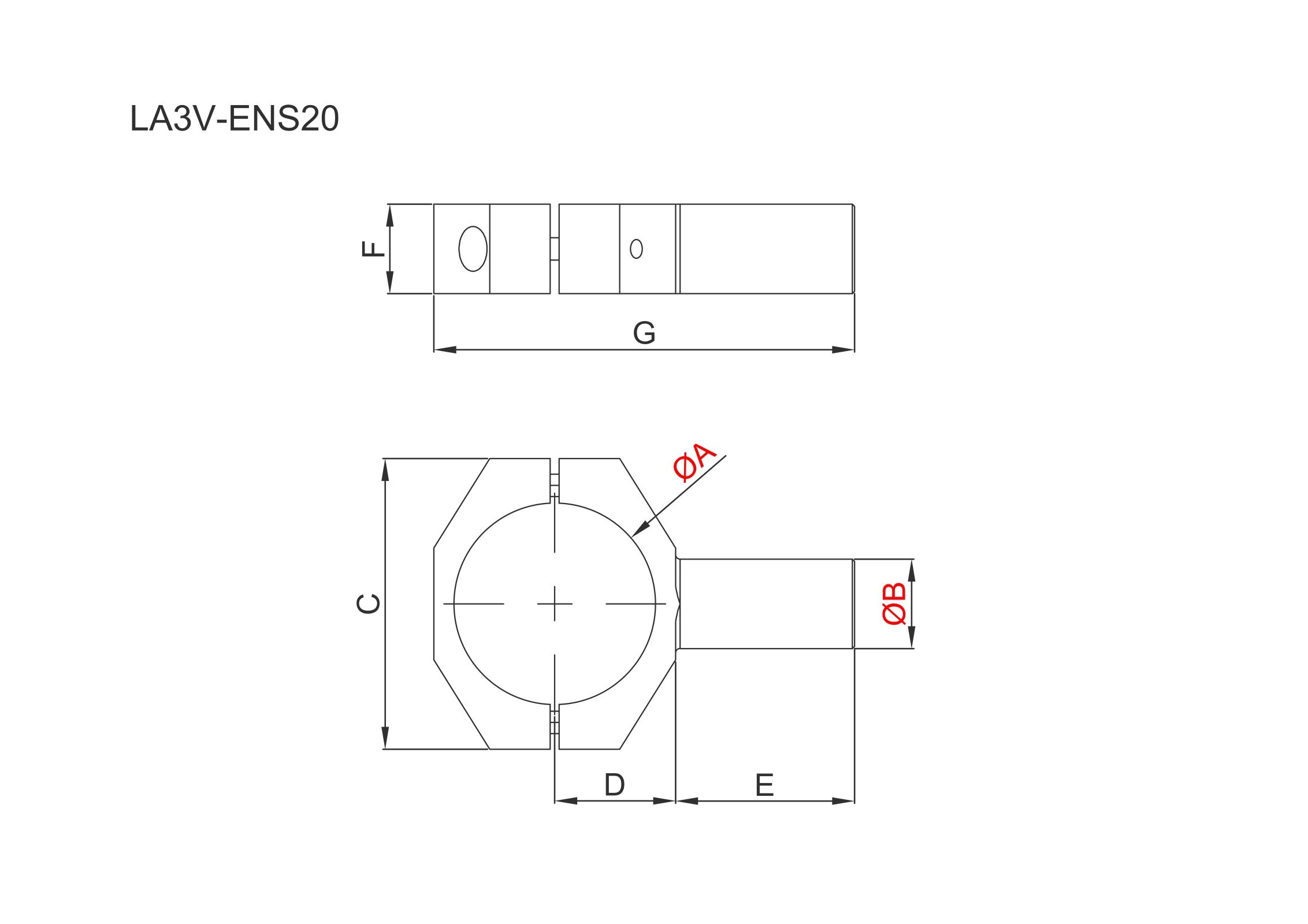

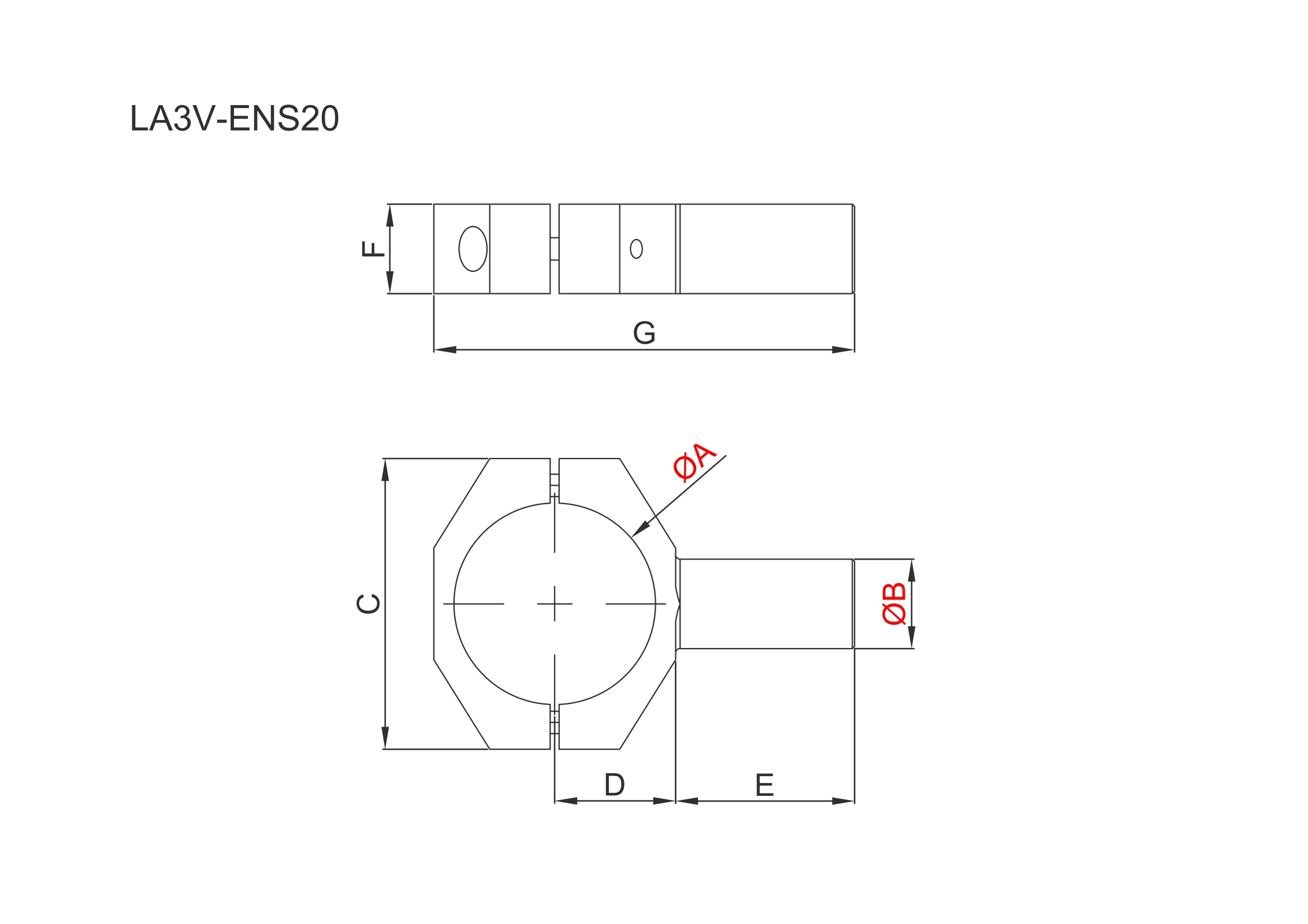

| Model | A(mm) | B(mm) | c(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight | Application mode |
|
0
|
Ø45 | Ø20 | 65 | 27 | 40 | 20 | 94 | 111g | LA5-A20 |
|
0
|
Ø56 | Ø20 | 75 | 33 | 40 | 25 | 106 | 123g | LA5-A30 |
