Leg For Vacuum Cup

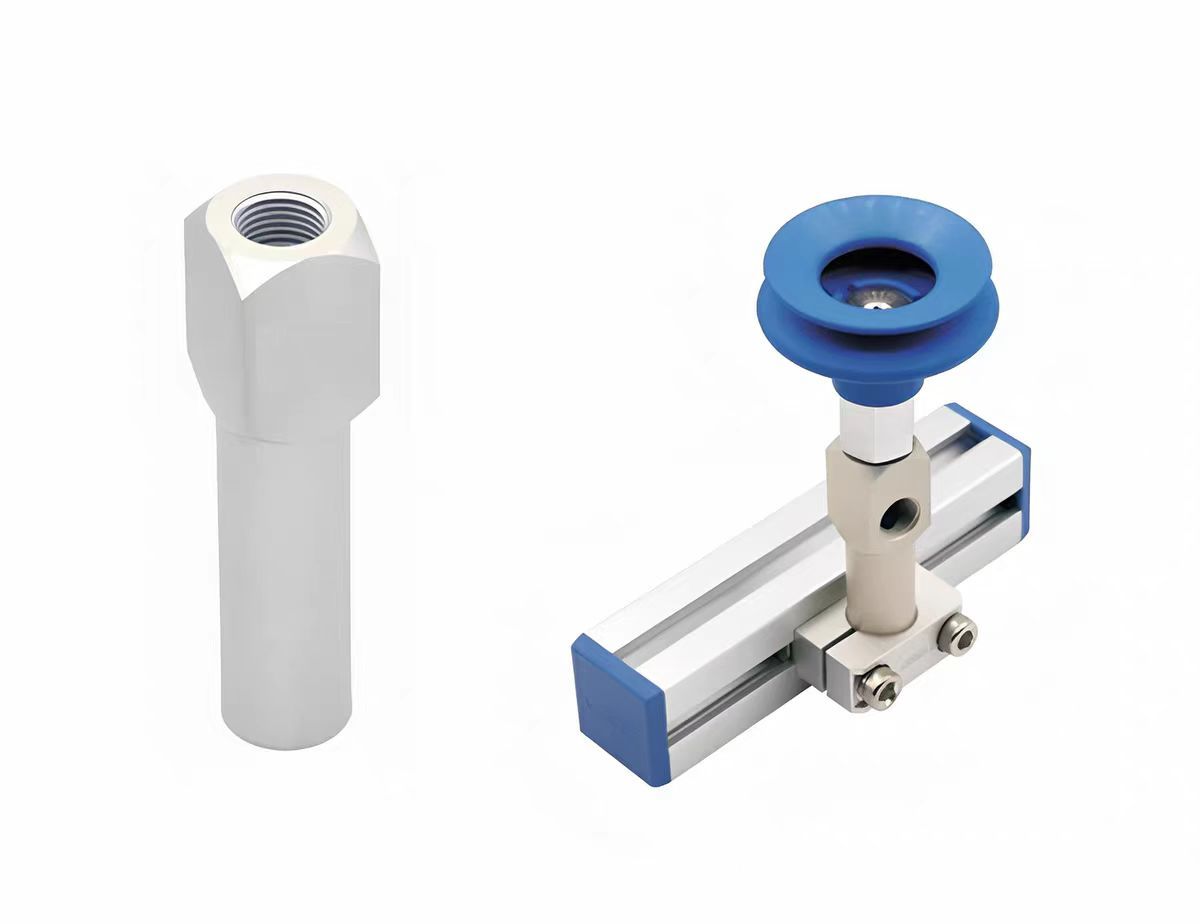

The suction cup mounting rod is a device that combines the convenience of a vacuum suction cup with the flexibility of a rigid support pole. It is typically composed of two core components: the bottom suction cup base and the extended pole that is rigidly connected to it. The top of the extended pole usually has a standard threaded interface for installing various devices. Its core function is to quickly create a temporary, stable, and adjustable installation support point on smooth surfaces that are either difficult or inappropriate for drilling (such as glass, tiles, and polished metals).
Product Details

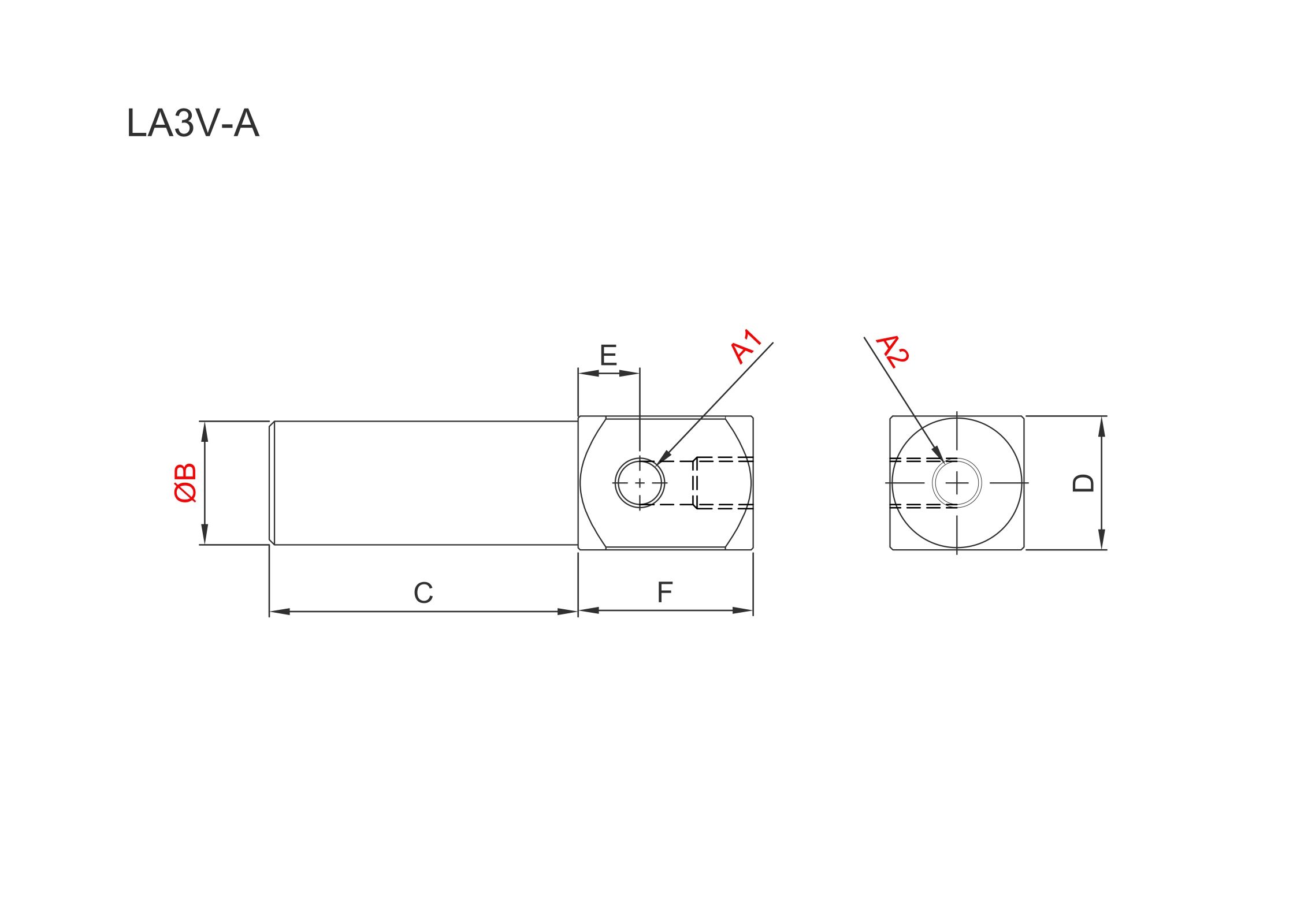

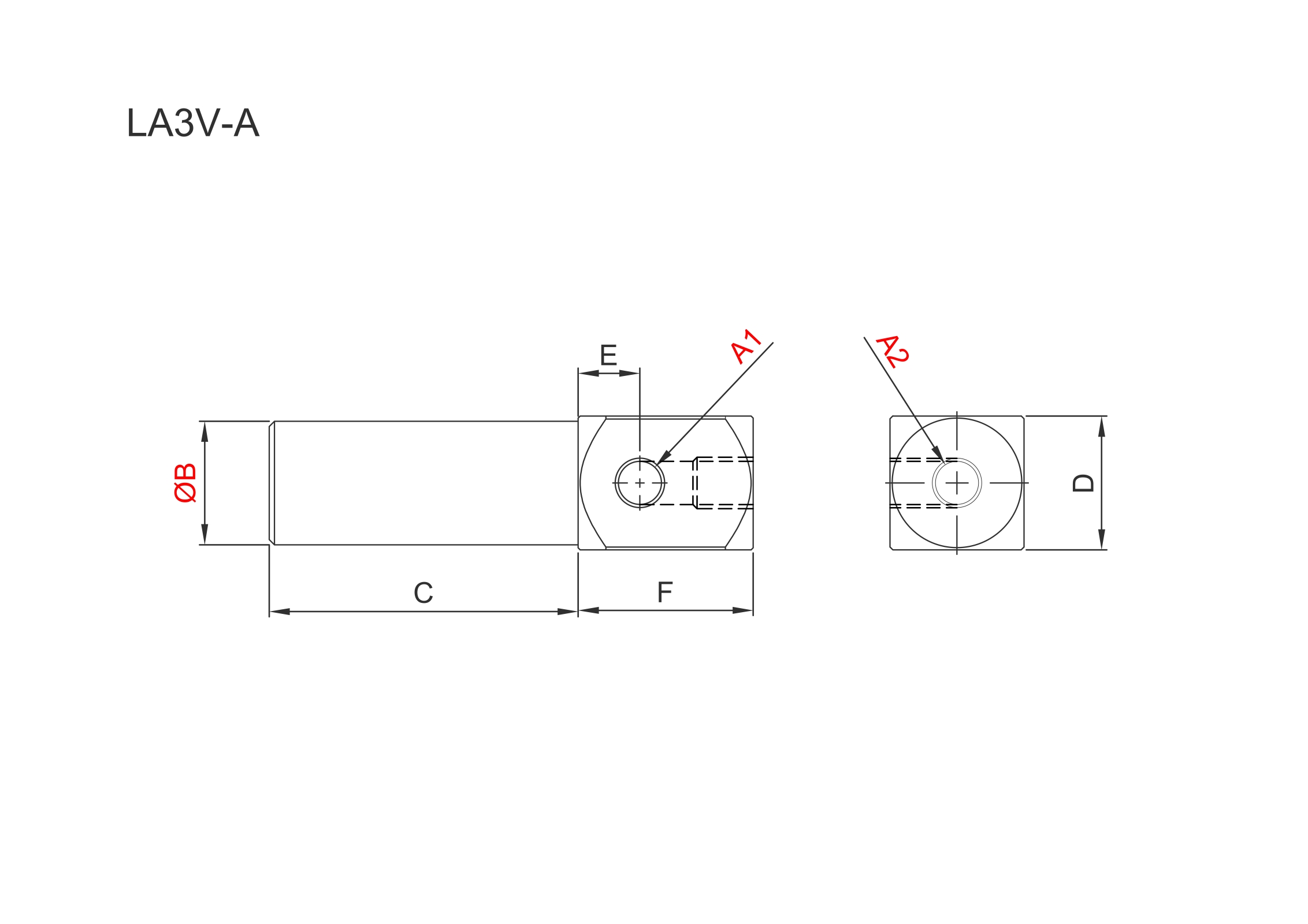

| Model | A(mm) | A2(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Weight |
|
0
|
M5 | M5 | Ø10 | 30 | 11 | 6 | 16 | 10g |
|
0
|
M5 | M5 | Ø10 | 60 | 11 | 6 | 16 | 13g |
|
0
|
M5 | M5 | Ø10 | 90 | 11 | 6 | 16 | 17g |
|
0
|
M5 | M5 | Ø12 | 30 | 13 | 7 | 17 | 12g |
|
0
|
M5 | M5 | Ø12 | 60 | 13 | 7 | 17 | 15g |
|
0
|
M5 | M5 | Ø12 | 90 | 13 | 1 | 17 | 19g |
|
0
|
G1/8 | G1/8 | Ø14 | 40 | 15 | 8 | 22 | 17g |
|
0
|
G1/8 | G1/8 | Ø14 | 80 | 15 | 8 | 22 | 25g |
|
0
|
G1/8 | G1/8 | Ø14 | 120 | 15 | 8 | 22 | 32g |
|
0
|
G1/8 | G1/8 | Ø20 | 50 | 20 | 8 | 23 | 40g |
|
0
|
G1/8 | G1/8 | Ø20 | 100 | 20 | 8 | 23 | 60g |
|
0
|
G1/8 | G1/8 | Ø20 | 150 | 20 | 8 | 23 | 75g |
