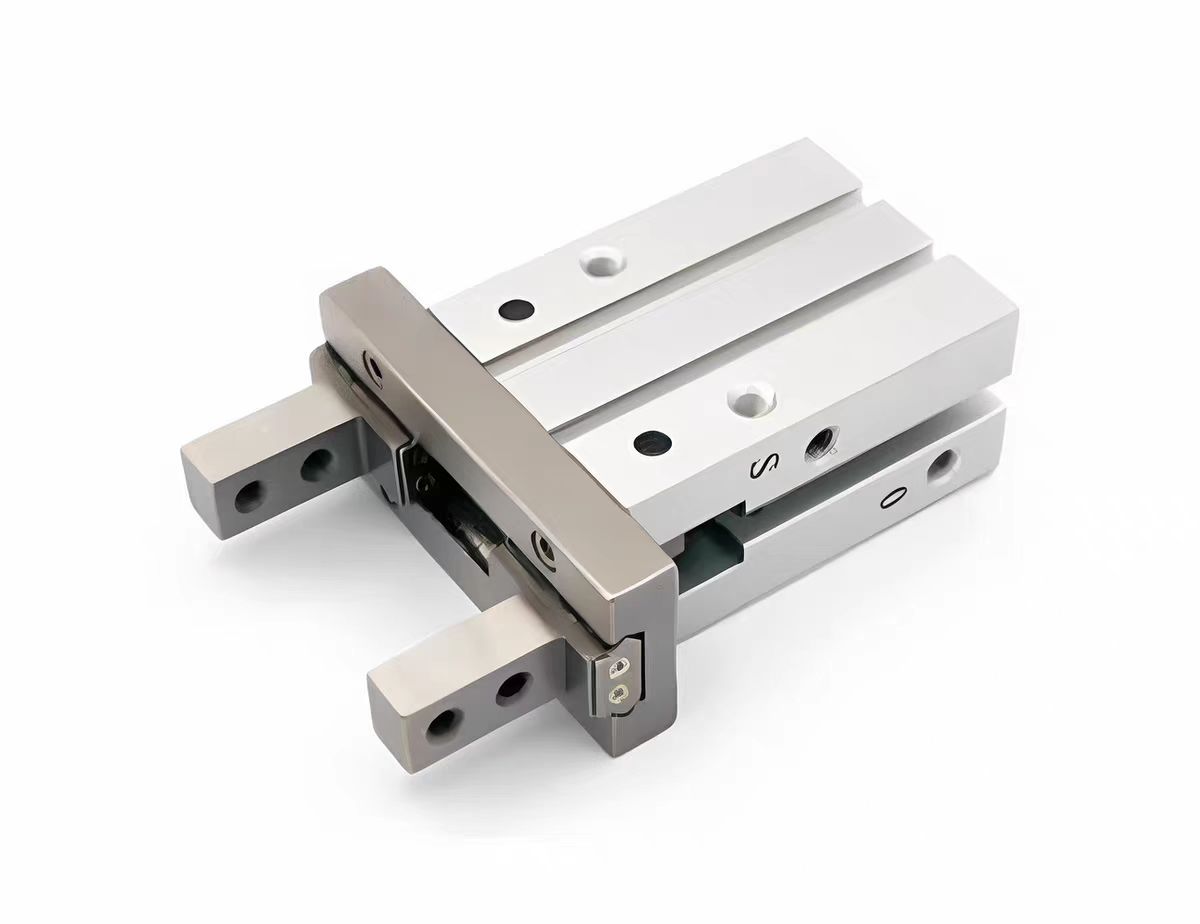

Lengthen Parallel Gripper

The extended parallel clamp is a specialized subclass of the ordinary parallel clamp. Its core feature lies in having extremely long clamping arms (throat depth) and/or extremely long screw stroke, enabling it to easily grip workpieces that are extremely wide or far from the edge, while maintaining the inherent advantages of the parallel clamp, such as uniform pressure and no damage to the workpiece. You can understand it as: a "long-arm ape"-style parallel clamp specifically designed to solve the gripping problem where "hands cannot reach".

Product Details

                          Model Action mode Opening force N closing force N stroke (mm) Weight
0
LA4-E10LS
Singleaction 7.1 7.1 8 63g
0
LA4-E10LD
Double action 11 17 8 59g
0
LA4-E16LS
Singleaction 27 27 12 139g
0
LA4-E16LD
Double action 34 45 12 130g
0
LA4-E20LS
Singleaction 33 33 18 218g
0
LA4-E20LD
Double action 42 66 18 221g
