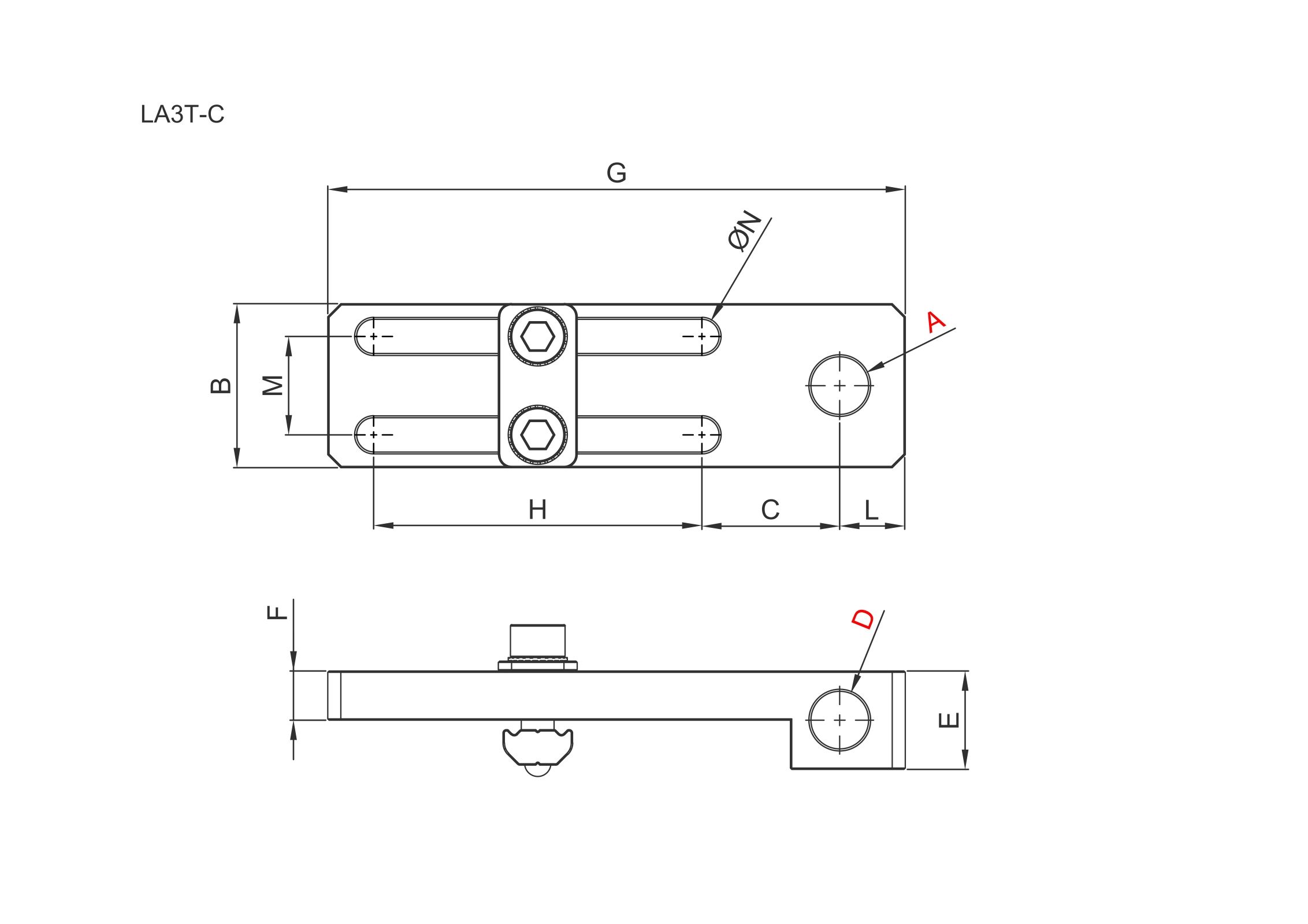

| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | L(mm) | M(mm) | N(mm) | Weight |
|
0
|
M5 | 16 | 14 | M5 | 8 | 4 | 65 | 40 | 6 | 8 | Ø4.2 | 20g |
|
0
|
G1/8 | 25 | 21 | G1/8 | 15 | 7.5 | 88 | 50 | 10 | 15 | Ø5.2 | 60g |
|
0
|
G1/4 | 25 | 21 | G1/8 | 15 | 7.5 | 88 | 50 | 10 | 15 | Ø5.2 | 60g |
