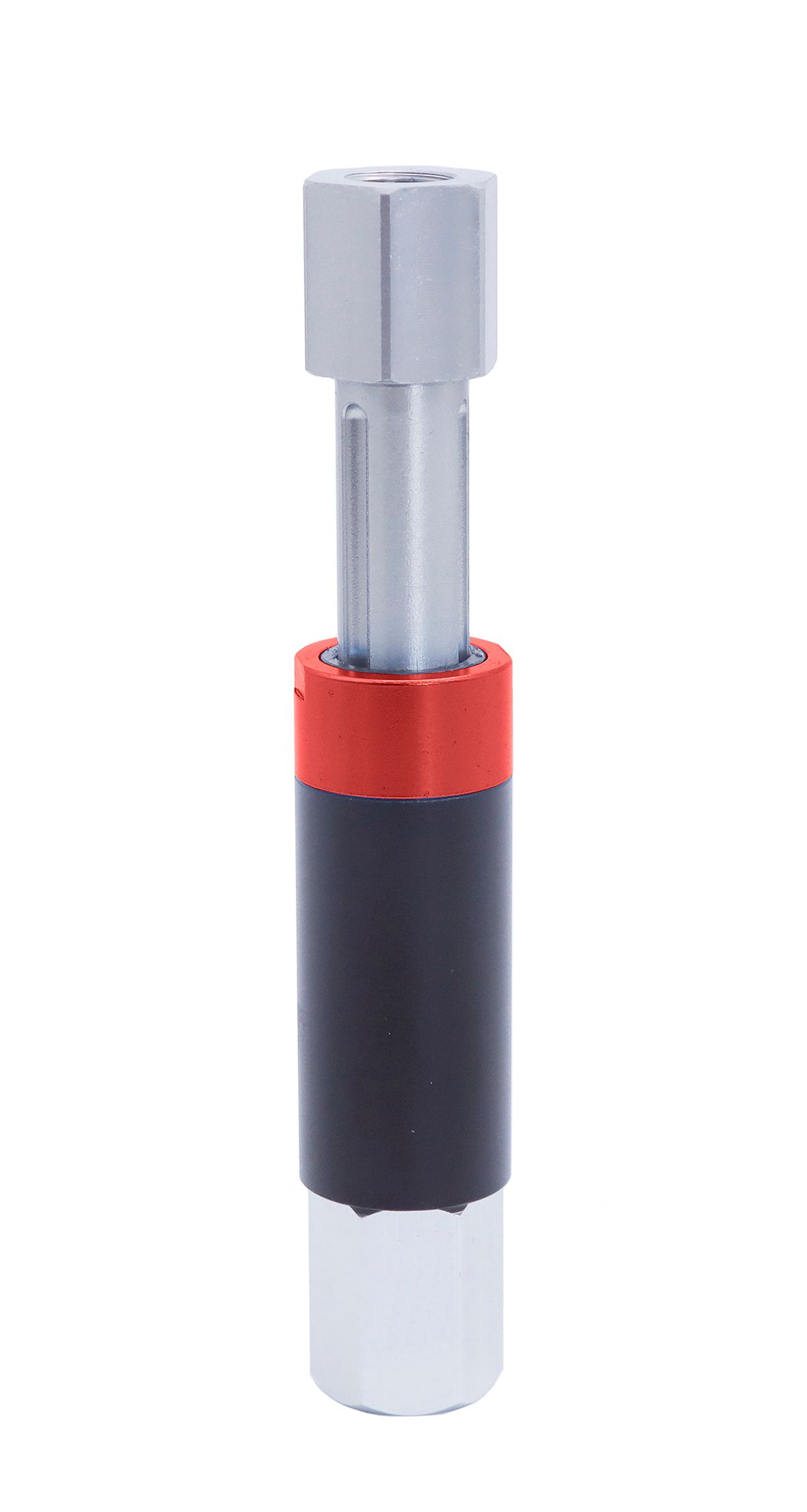

Non-rotative Suspensions LA6J
The buffer support is a crucial auxiliary component installed between the end of the industrial robot arm and the end effector. You can consider it as an advanced "shock absorber" or "buffer". Its main function is to absorb the impact energy caused by mechanical movements, compensate for minor positional deviations, and protect the expensive robot and the end tool.
Product Details

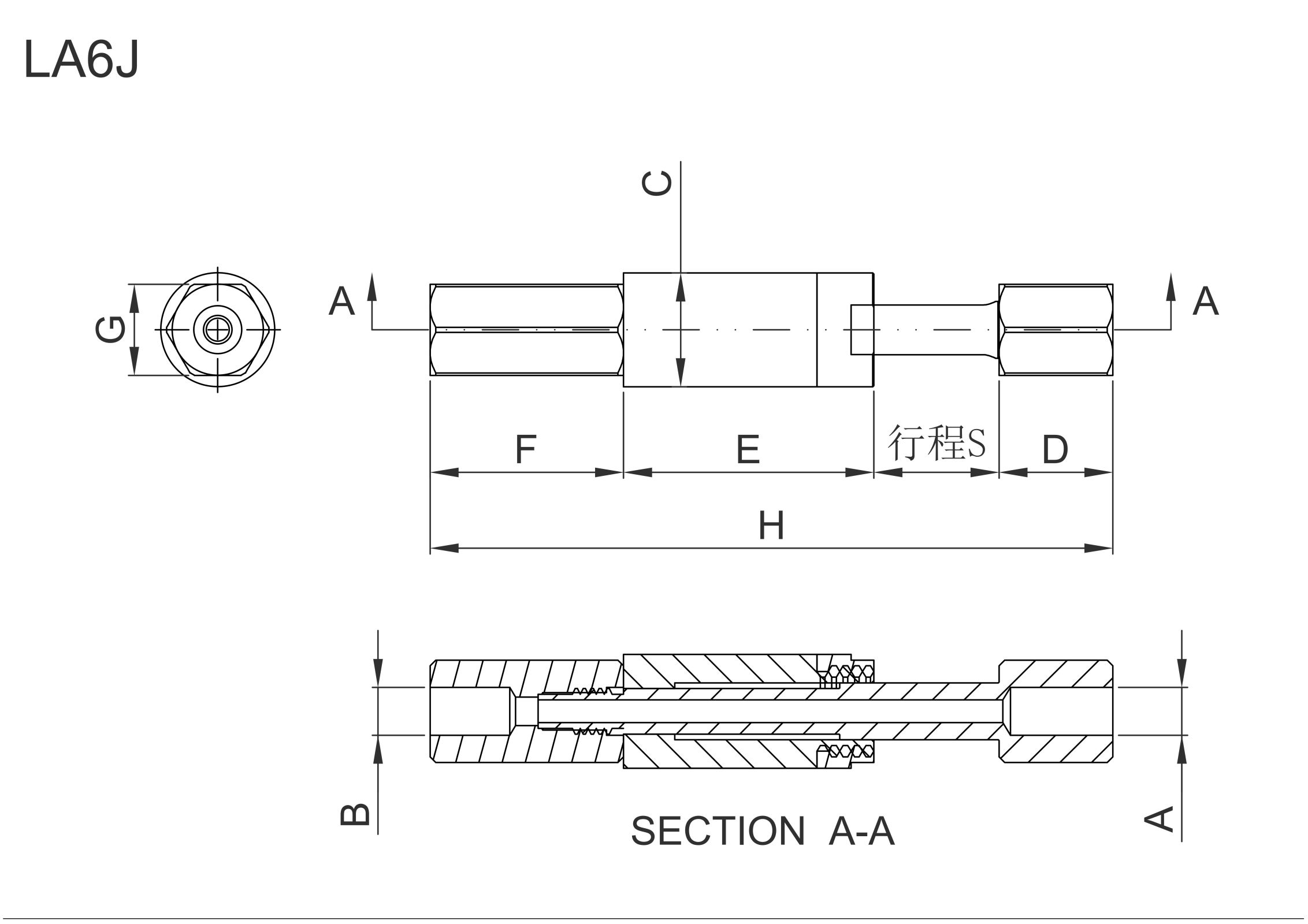

| Model | A(mm) | B(mm) | c(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | S(mm) | Weight |
|
0
|
M5 | M5 | Ø10 | 10 | 22 | 17 | 8 | 60 | 11 | 7g |
|
0
|
M5 | M5 | Ø10 | 10 | 41 | 17 | 8 | 89 | 21 | 11g |
|
0
|
G1/8 | G1/8 | Ø14 | 12 | 40 | 20 | 12 | 93 | 21 | 24g |
|
0
|
G1/8 | G1/8 | Ø14 | 12 | 60 | 20 | 12 | 128 | 36 | 44g |
|
0
|
G1/8 | G1/8 | Ø20 | 15 | 50 | 21 | 16 | 112 | 26 | 54g |
|
0
|
G1/8 | G1/8 | Ø20 | 15 | 84 | 21 | 16 | 171 | 51 | 80g |
