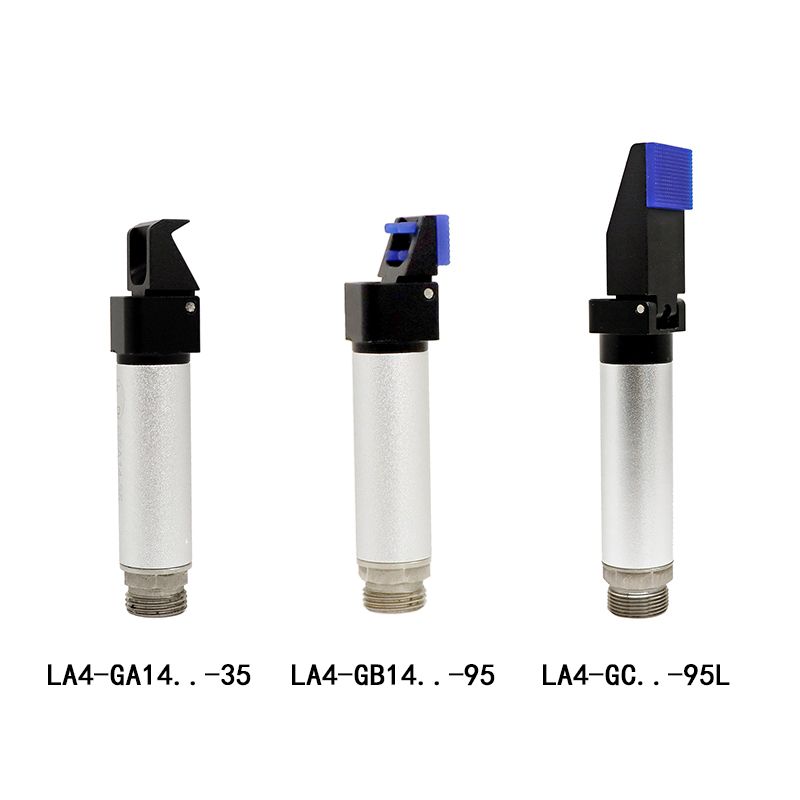

One Finger Angular Pneumatic Grippers LA4-G

The single-action finger-pull is a simple feeding mechanism that utilizes the principle of a mechanical one-way clutch. Its core value lies in its ultimate simplicity, reliability, and low cost, making it an enduring basic design in countless industrial automation equipment, especially in the fields of stamping and feeding. When your application does not require extremely high efficiency but places great emphasis on stability and cost, the single-action finger-pull is often the optimal solution.

Product Details

Model	Closing torque at 6 bar	Piston bore	Stroke	Weight	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	\|(mm)	J(mm)	K(mm)	M(mm)

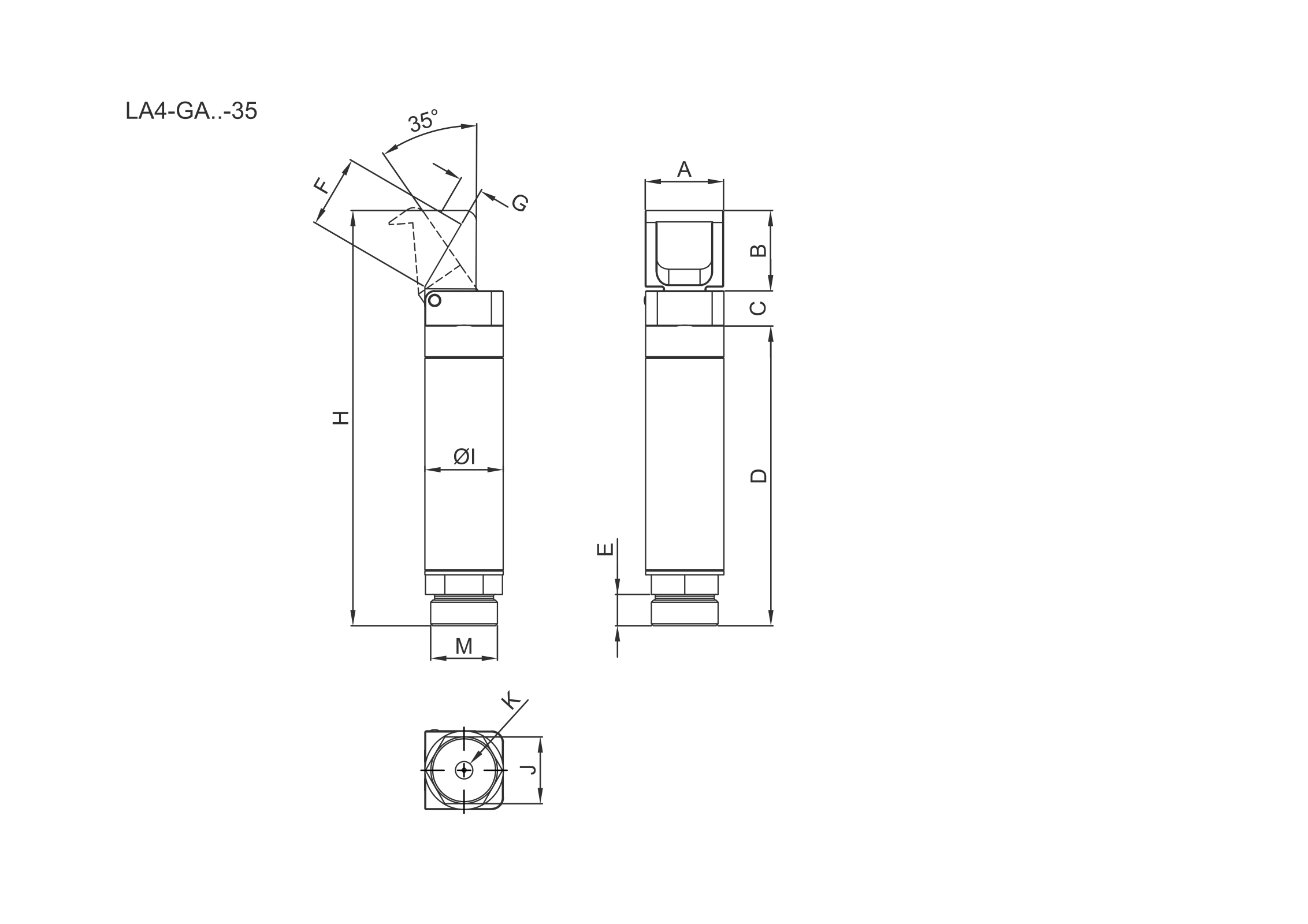

0 LA4-GA14-35	26Ncm	Ø10mm	35°	25g	14	14	10.5	49.5	5.5	13.5	4.5	74	Ø14	12	M5	M12x1
0 LA4-GA20-35	100Ncm	Ø16mm	35°	65g	20	20.5	9	76.5	8	20.2	6	106	Ø20	17	M5	G17x1
0 LA4-GA30-35	430Ncm	Ø25mm	35°	206g	30	30	12	111	11	30.5	8	153	Ø30	27	G1/8	G27x1

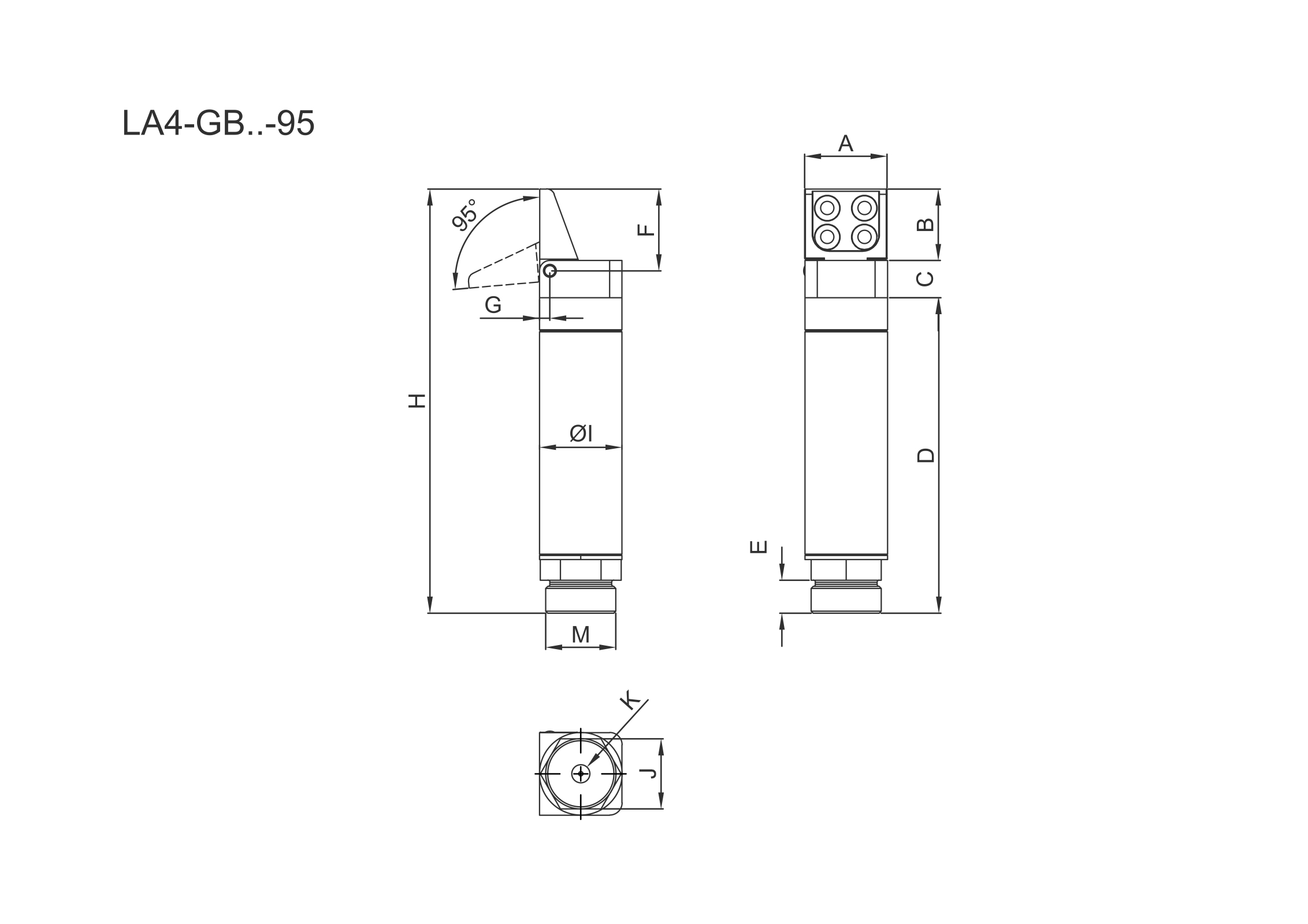

0 LA4-GB14-95	19Ncm	Ø10mm	95°	25g	14	12	10.5	49.5	5.5	14	2	72	Ø14	12	M5	G12x1
0 LA4-GB20-95	70Ncm	Ø16mm	95°	60g	20	17.5	9	76.5	8	20	2.5	103	Ø20	17	M5	G17x1
0 LA4-GB30-95	300Ncm	Ø25mm	95°	193g	30	25	12	111	11	29	4	148	Ø30	27	G1/8	G27x1

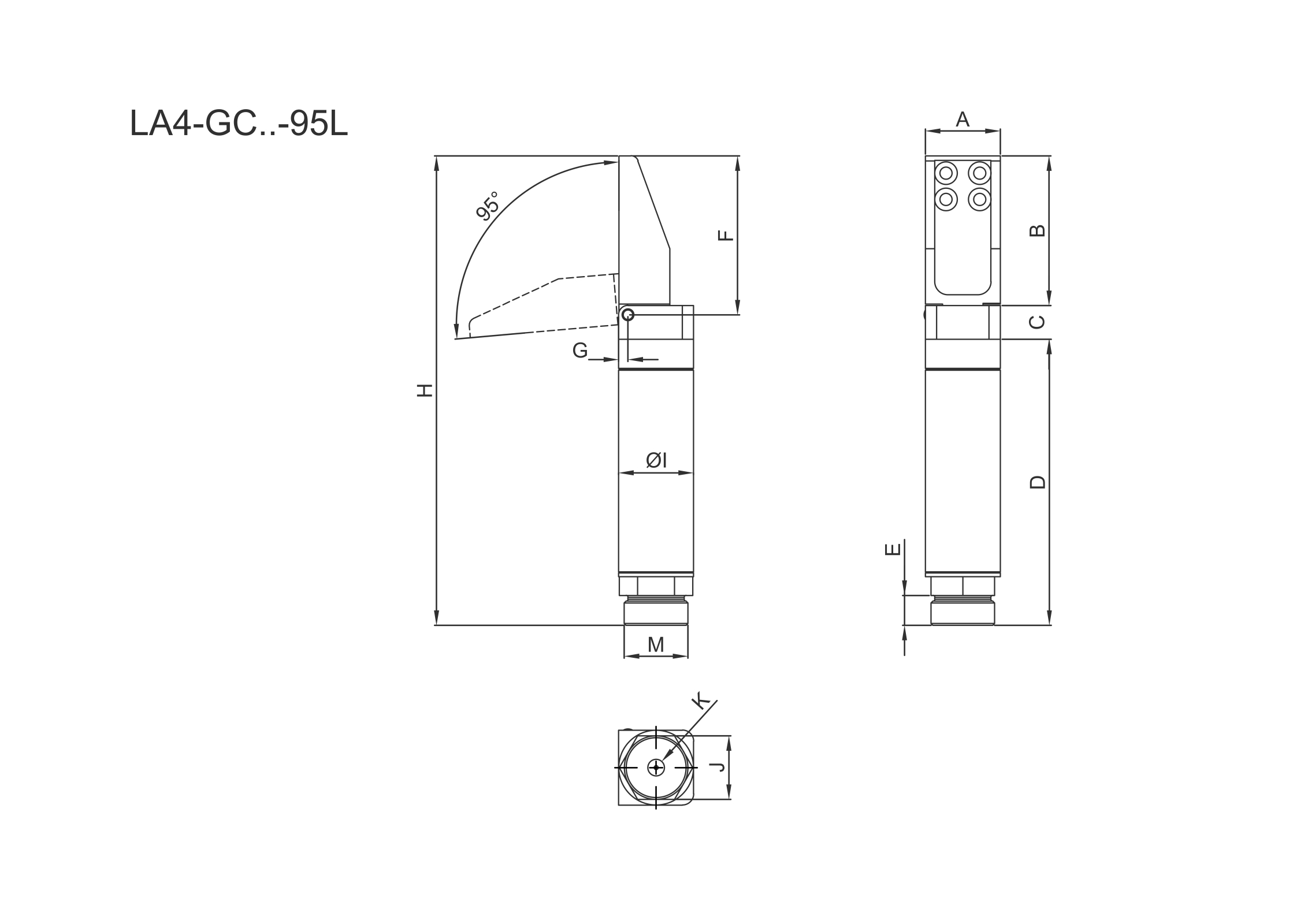

0 LA4-GC20-95L	70Ncm	Ø16mm	95°	81.4g	20	40	9	85.5	8	42.5	2.5	125.5	Ø20	20	M5	G17x1
