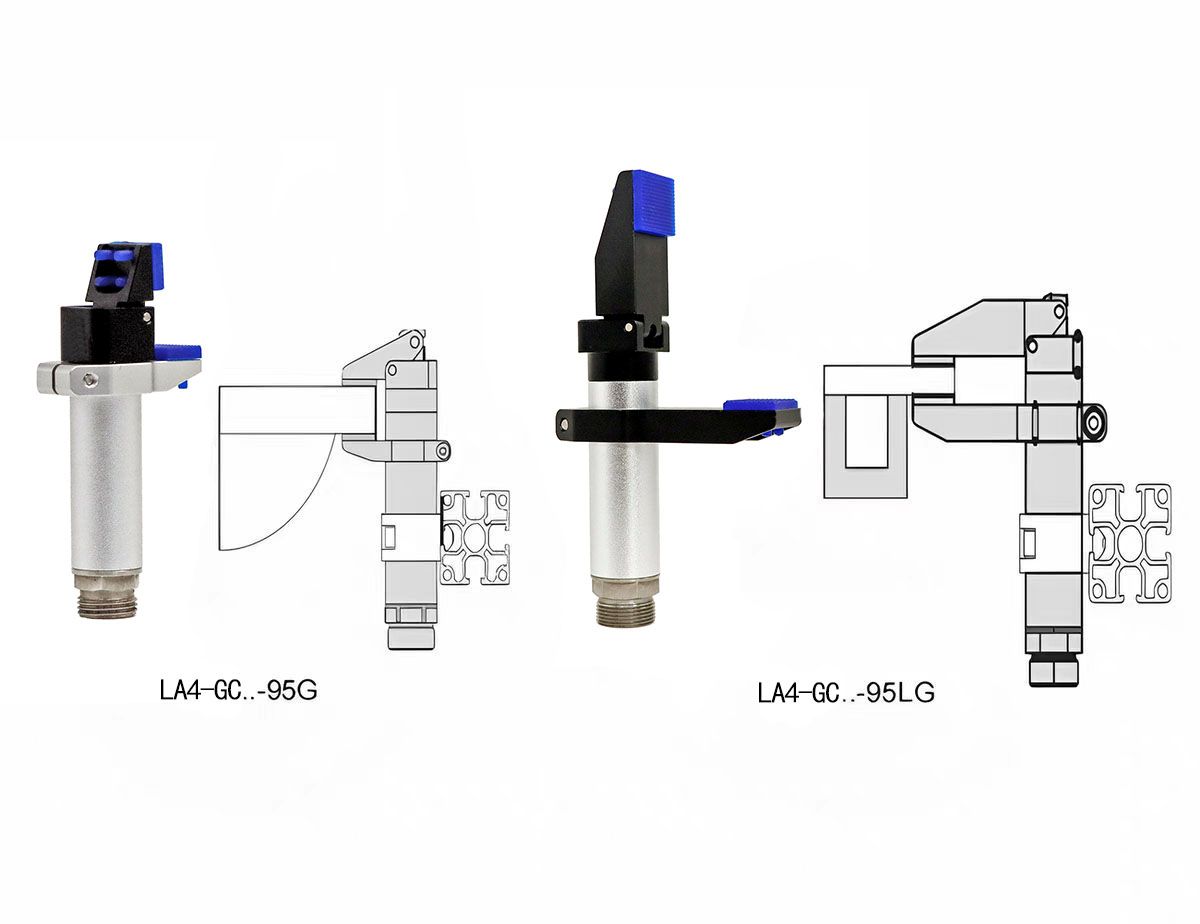

One Finger Angular Pneumatic Grippers LA4-GC-95G

The single-action indexing mechanism is a simple feeding mechanism that utilizes the principle of a mechanical one-way clutch. Its core value lies in its extreme simplicity, reliability, and low cost, making it a consistently popular basic design in numerous industrial automation equipment, especially in the fields of stamping and feeding. When your application does not require extremely high efficiency but highly values stability and cost, the single-action indexing mechanism is often the optimal solution.

Product Details

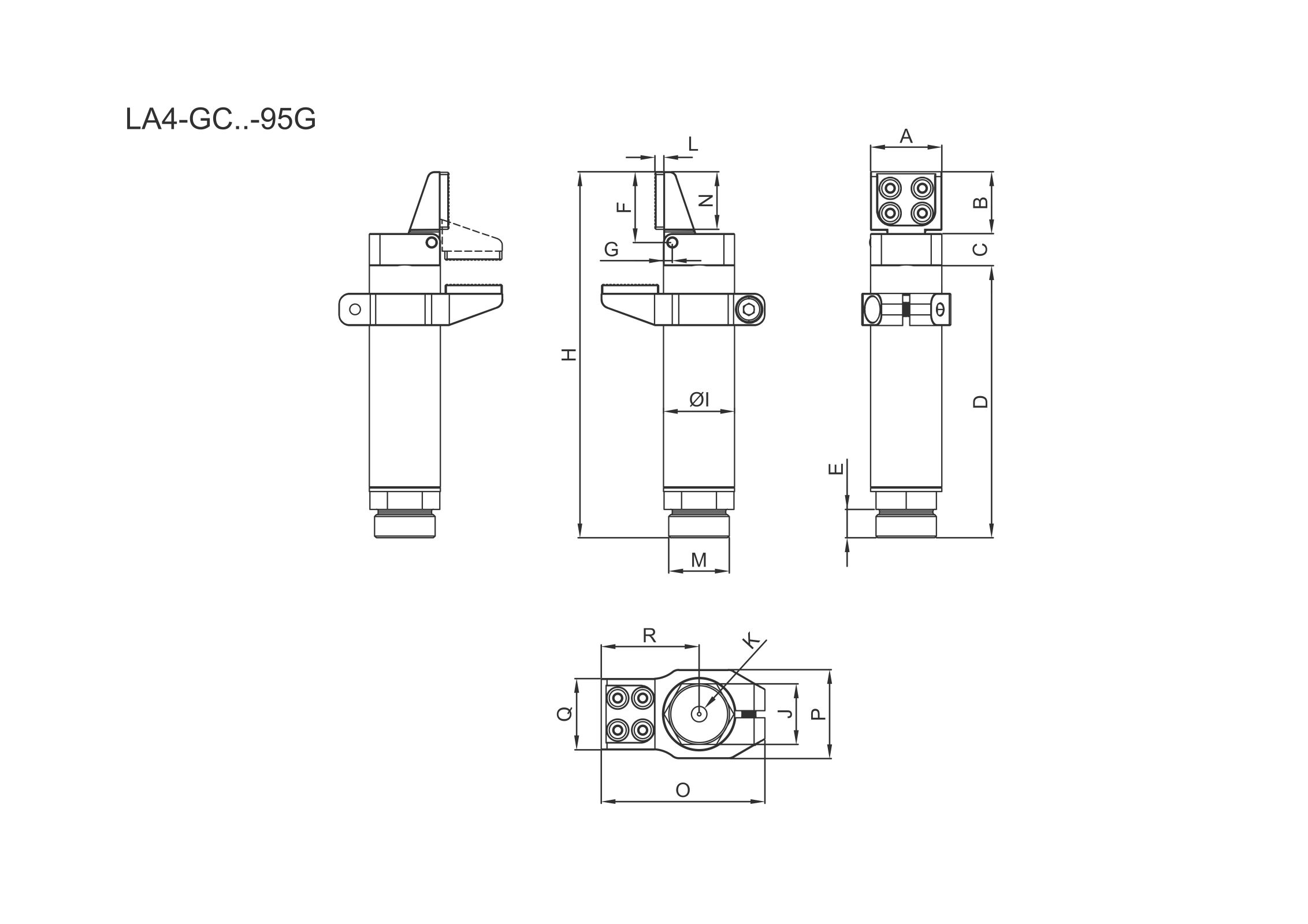

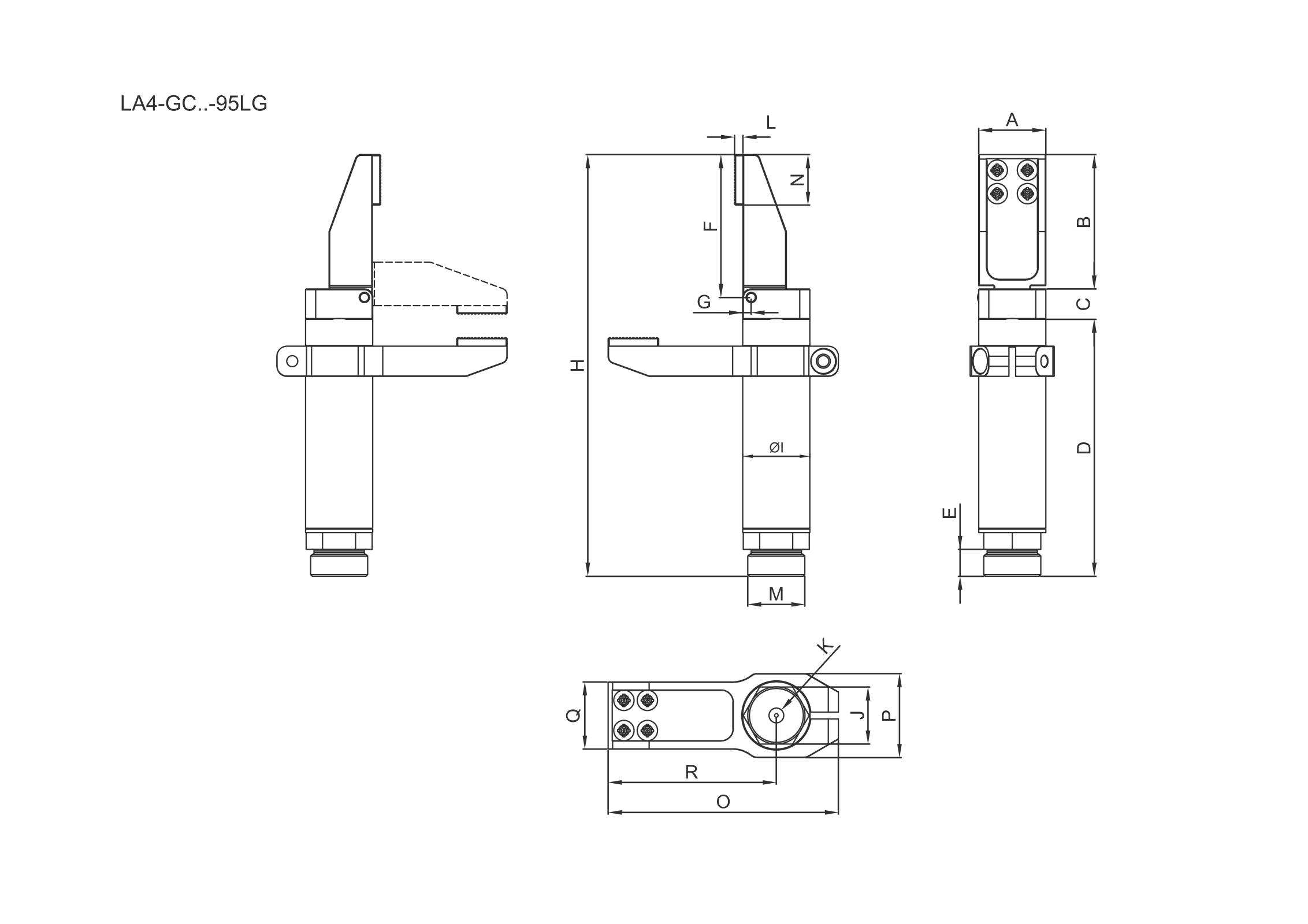

Model	Closing torque at 6 bar	Piston bore	Stroke	Weight	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	I(mm)	J(mm)	K(mm)	L(mm)	M(mm)	N(mm)	0(mm)	P(mm)	Q(mm)	R(mm)
0 LA4-GC14-95G	19Ncm	Ø10mm	95°	36g	14	12	10.5	49.5	5.5	14	2	72	Ø14	12	M5	2.5	M12x1	11	32	19	14	19
0 LA4-GC20-35EG	70Ncm	Ø16mm	95°	87g	20	17.5	9	76.5	8	20	2.5	103	Ø20	17	M5	2.5	M17x1	15	46	25	20	27.5
0 LA4-GC30-35G	300Ncm	Ø25mm	95°	300g	30	25	12	111	11	29	4	148	Ø30	27	G1/8	3	M27x1	20	63	37	30	40
0 LA4-GC20-95LG	70Ncm	Ø16mm	95°	104.8g	20	40	9	76.5	8	42.5	2.5	125.5	Ø20	17	M5	2.5	M27x1	15	68.5	25	20	50
