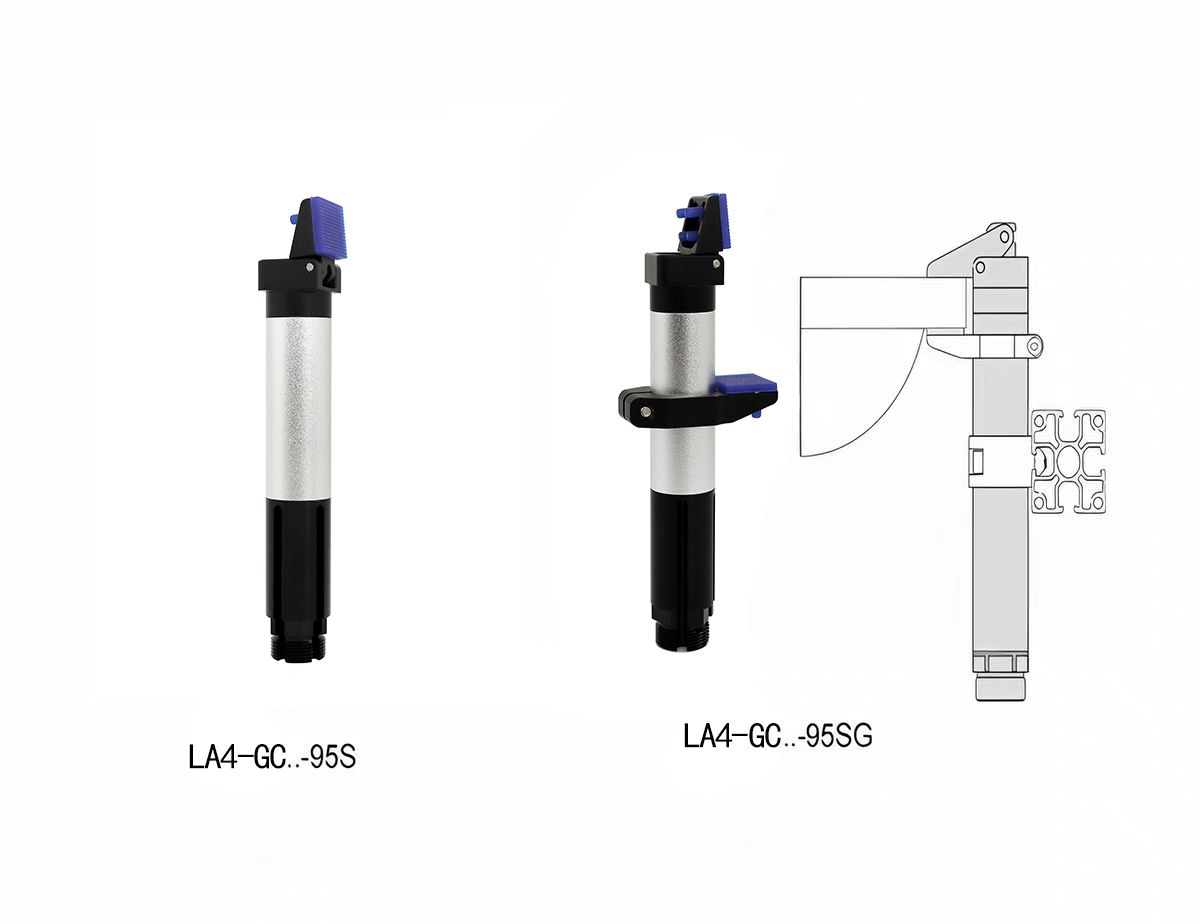

One Finger Angular Pneumatic Grippers LA4-GC20-95S
The single-action indexing mechanism is a simple feeding mechanism that utilizes the principle of a mechanical one-way clutch. Its core value lies in its extreme simplicity, reliability, and low cost, making it a consistently popular basic design in numerous industrial automation equipment, especially in the fields of stamping and feeding. When your application does not require extremely high efficiency but highly values stability and cost, the single-action indexing mechanism is often the optimal solution.
Product Details

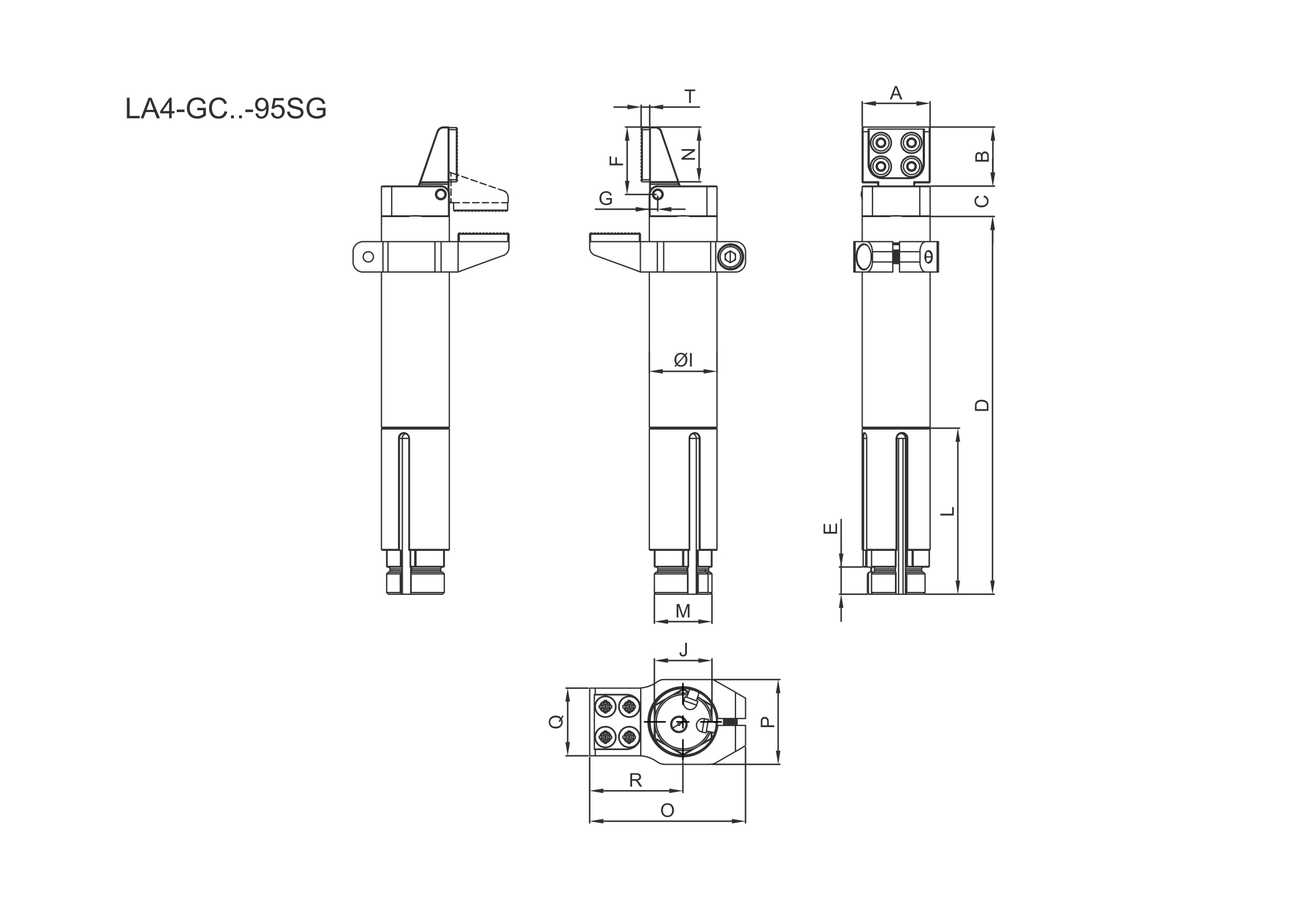

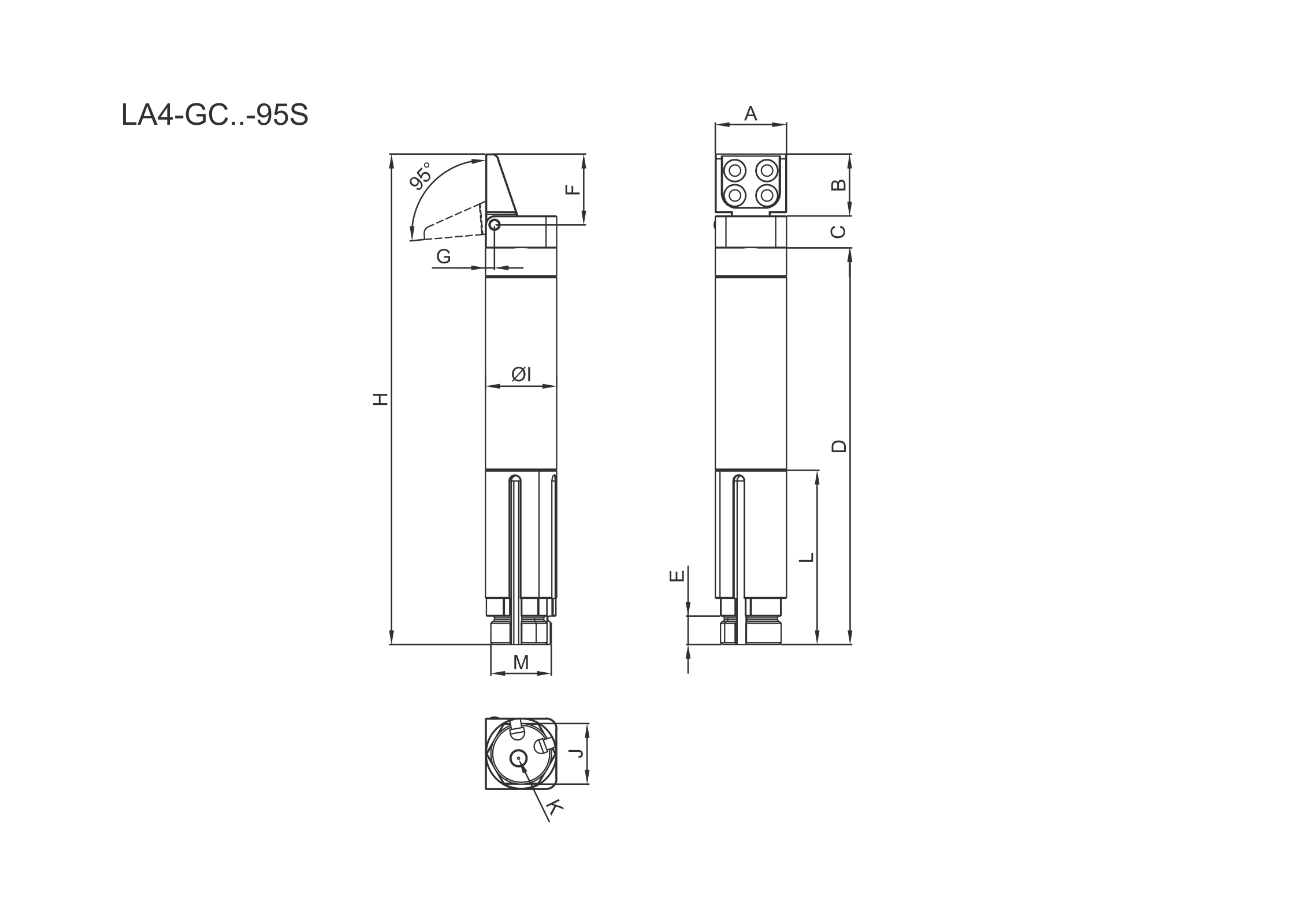

| Model | Closing torque at 6 bar | Piston bore | Stroke | Peso | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | l(mm) | J(mm) | K(mm) | L(mm) | M(mm) | N(mm) | 0(mm) | P(mm) | Q(mm) | R(mm) | T(mm) |
|
0
|
70Ncm | Ø16mm | 95° | 89g | 20 | 17.5 | 9 | 11.5 | 8 | 20 | 2.3 | 138 | 20 | 17 | M5 | 41 | M17x1 | - | - | - | - | - | - |
|
0
|
70Ncm | Ø16mm | 95° | 103g | 20 | 17.5 | 9 | 11.5 | 8 | 20 | 2.3 | 138 | 20 | 17 | M5 | 41 | M17x1 | 15 | 46 | 25 | 20 | 27.5 | 2.5 |
