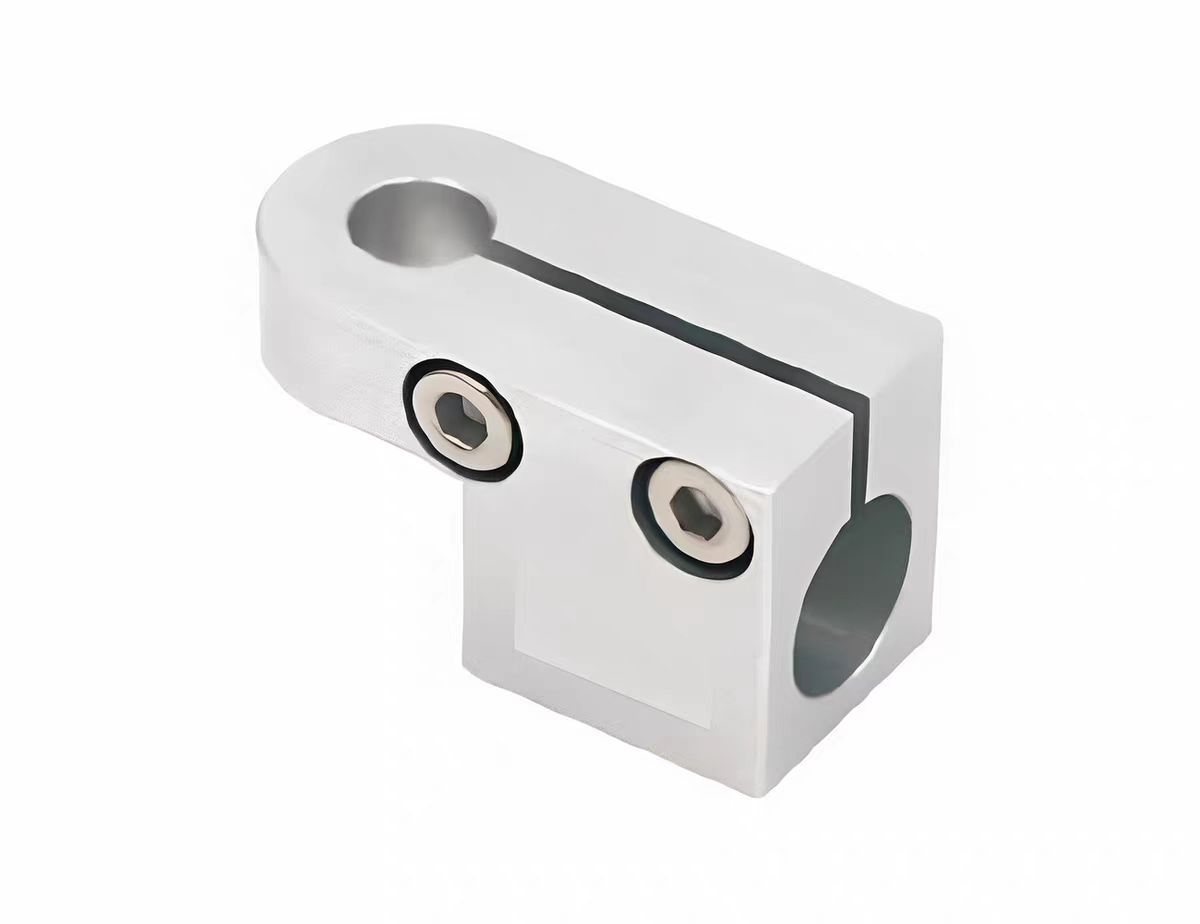

Rotation Bracket T LA3S-B

The rotating bracket is a type of mechanical component with unique functions and extreme flexibility. Its core function is: allowing the fixed object to rotate or adjust its angle around one or more axes, and being able to reliably lock in the desired position. It transforms static connections into dynamic and controllable movements, and is a key component for achieving diversified equipment functions, optimized human-computer interaction, and space savings.

Product Details

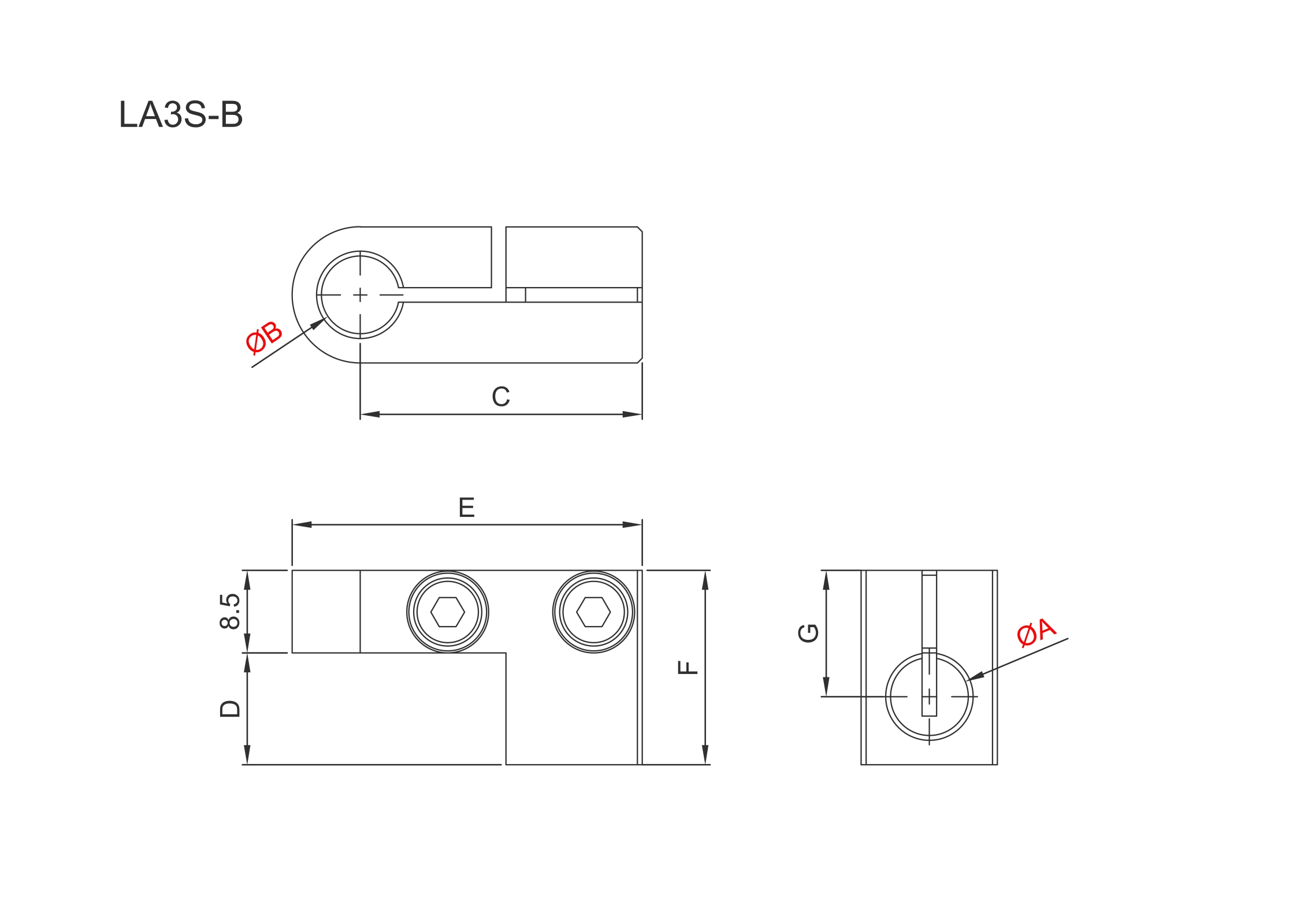

                          Model A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) Weight
0
LA3S-B1208
Ø12 Ø8 29 14 38 22.5 13.5 24g
0
LA3S-B-0808
Ø8 Ø8 29 11.5 36 20 13 16g
0
LA3S-B1212
Ø12 Ø12 29 14 38 22.5 13.5 18g
