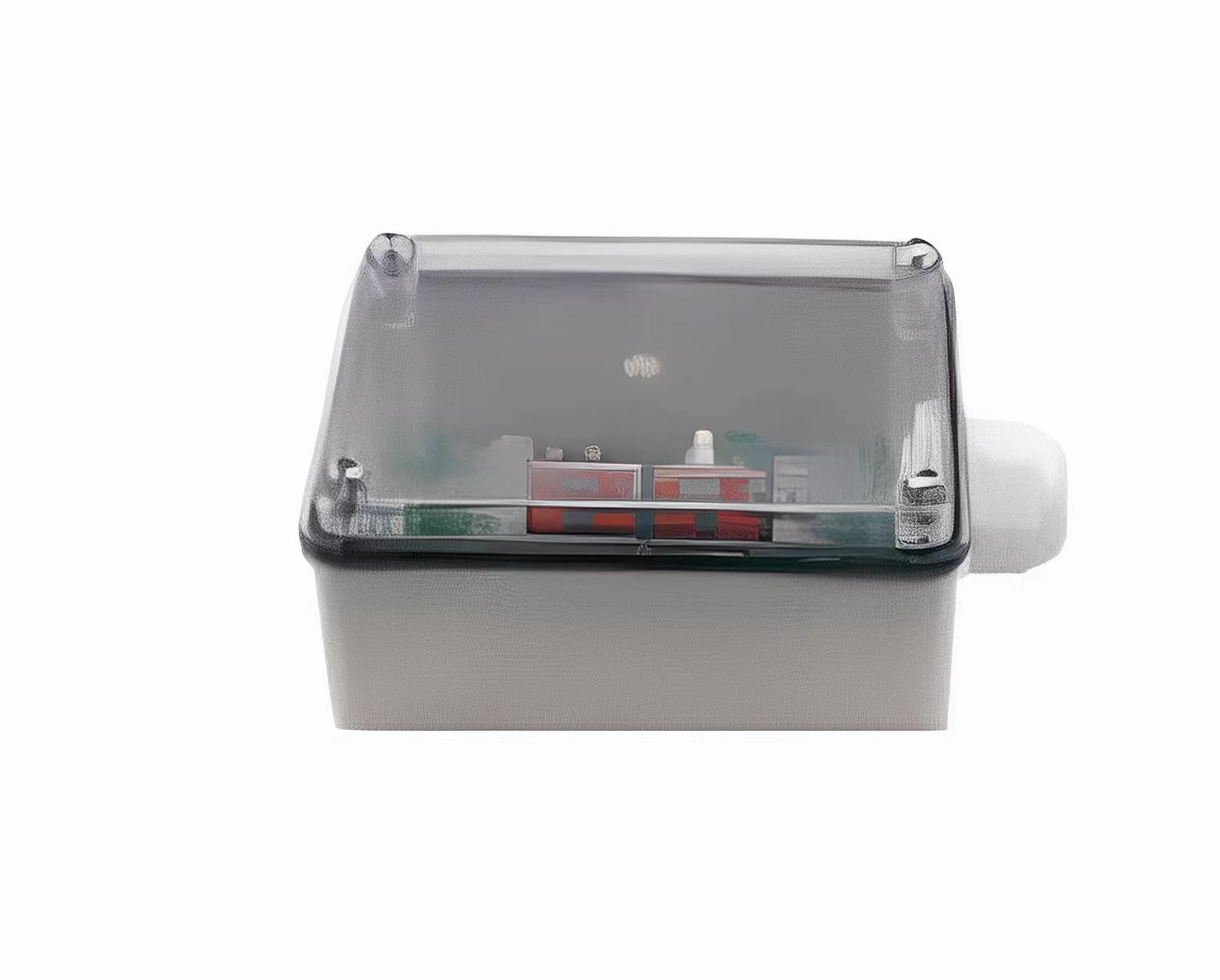

Signal Boxes

The signal box is a very practical and important component in the industrial robot automation system. It is like the "wiring hub" and "signal commander" of the tools at the end of the robot arm. By centrally managing the signal wiring, it enhances the reliability, maintainability and integration of the robot system, and is an essential part for achieving efficient and stable automated production.

Product Details

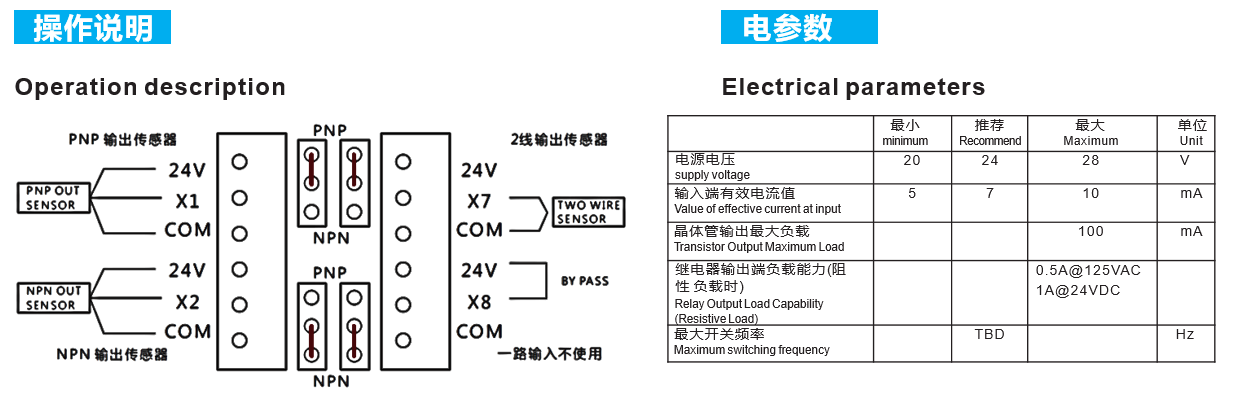

Electrical parameters
0
LA7-ASC-8A-B
Minimum Recommend Maximum Unit
Supply voltage 20 24 28  V
Value of effective currentat input 5 7 10 mA
Transistor Output Maximum Load     100 mA
Relay Output Load Capability(ResistiveLoad)     0.5A@125VAC1A@24VDC
Maximumswitchingfr   TBD   Hz
