Vacuum Cups LA6-D

A vacuum suction cup, also known as a vacuum gripper or suction nozzle, is an actuating component that uses the pressure difference generated by vacuum negative pressure to attach, grasp, and move objects. It is one of the most common "hands" in automated equipment and industrial robots (especially handling and loading/unloading robots), and is a key component of end-of-arm tools (EOAT). The core working principle is very simple: by evacuating the air between the suction cup and the surface of the workpiece, a vacuum is created, and the external atmospheric pressure then firmly presses the workpiece onto the suction cup.

Product Details

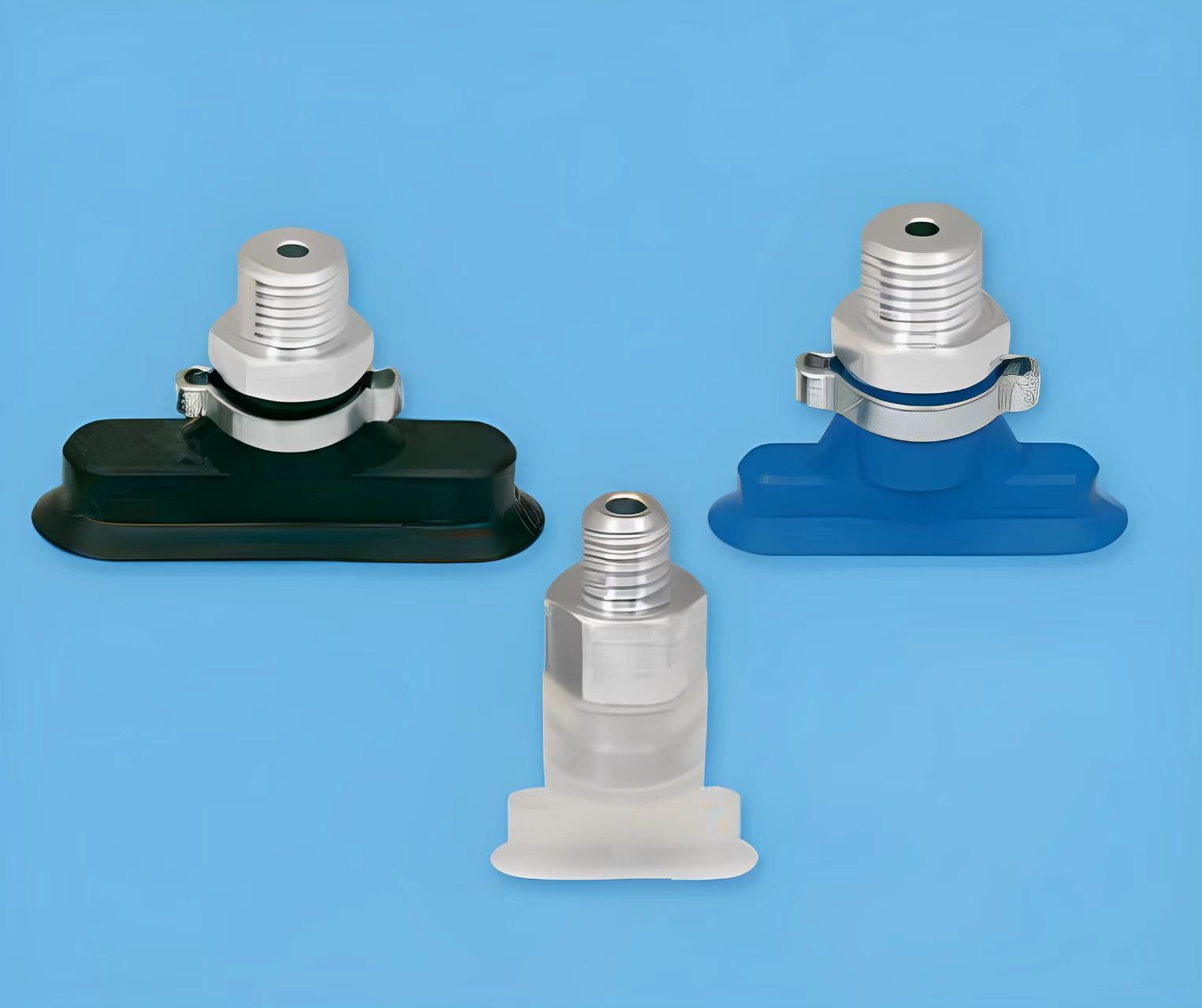

Materials	Shore Hardness	A Flexibility	Abrasion resistance	UV&weather resistance	Oil resistance	Heat resistance (in 'C)	Color
T: Translucent Silicone	50	＋＋＋	－	－	－	－40至220	Translucent
B:Siton@	60	＋	＋＋	－	＋＋	－25至170	Blue
K:Nitrile	60	＋	＋	－	＋＋	－30至120	Black

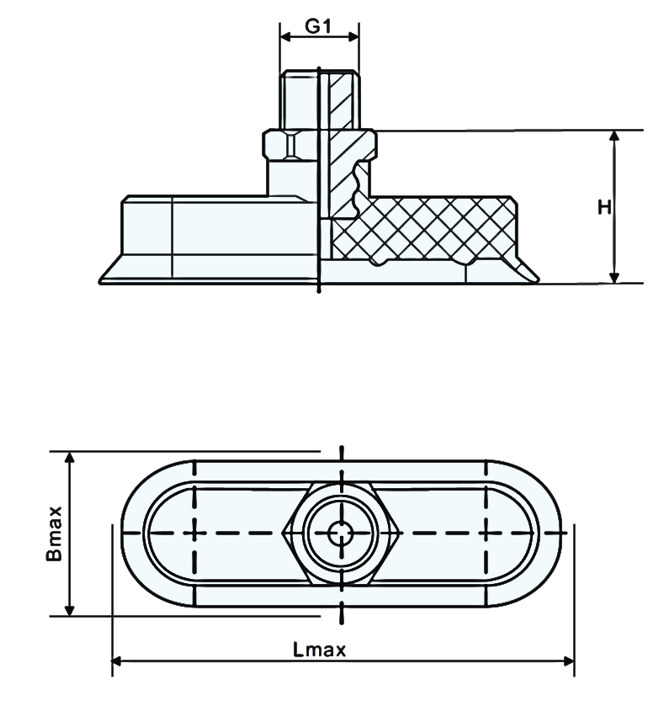

Model	Suction Force(N)¹	Recommended vacuum Inside(mm)	G1(mm)	Dk(mm)	Dmax(mm)	H(mm)	color			Weight
0 LA6-D2.5x4.5-T	0.42	2	M3-M	2.5	4.5	8	T	B	K	2g
0 LA6-D4.5x7.5-T	1	2	M3-M	4.5	7.5	8	T	B	K	2g
0 LA6-D5x13-T	1.8	2	M5-M	5	13	18	T	B	K	3g
0 LA6-D5.5x15.5-T	3.1	2	M5-M	5.5	15.5	17	T	B	K	3g
0 LA6-D7x18.5-T	4.5	2	M5-M	7	18.5	17	T	B	K	3g
0 LA6-D9x24.5-T	8	4	G1/8-M	9	24.5	17	T	B	K	7g
0 LA6-D11.5x30.5-T	12.2	4	G1/8-M	11.5	30.5	17	T	B	K	7g
0 LA6-D16.5x46-T	28.2	6	G1/4-M	16.5	46	26	T	B	K	15g
0 LA6-D22x61-T	50.1	6	G1/4-M	22	61	26	T	B	K	19g
0 LA6-D27.5x77-T	78.3	6	G1/4-M	27.5	77	26	T	B	K	27g
0 LA6-D33x92.5-T	112.6	6	G1/4-M	33	92.5	26	T	B	K	35g
0 LA6-D2.5x4.5-B	0.42	2	M3-M	2.5	4.5	8	T	B	K	2g
0 LA6-D4.5x7.5-B	1	2	M3-M	4.5	7.5	8	T	B	K	2g
0 LA6-D5x13-B	1.8	2	M5-M	5	13	18	T	B	K	3g
0 LA6-D5.5x15.5-B	3.1	2	M5-M	5.5	15.5	17	T	B	K	3g
0 LA6-D7x18.5-B	4.5	2	M5-M	7	18.5	17	T	B	K	3g
0 LA6-D9x24.5-B	8	4	G1/8-M	9	24.5	17	T	B	K	7g
0 LA6-D11.5x30.5-B	12.2	4	G1/8-M	11.5	30.5	17	T	B	K	7g
0 LA6-D16.5x46-B	28.2	6	G1/4-M	16.5	46	26	T	B	K	15g
0 LA6-D22x61-B	50.1	6	G1/4-M	22	61	26	T	B	K	19g
0 LA6-D27.5x77-B	78.3	6	G1/4-M	27.5	77	26	T	B	K	27g
0 LA6-D33x92.5-B	112.6	6	G1/4-M	33	92.5	26	T	B	K	35g
0 LA6-D2.5x4.5-K	0.42	2	M3-M	2.5	4.5	8	T	B	K	2g
0 LA6-D4.5x7.5-K	1	2	M3-M	4.5	7.5	8	T	B	K	2g
0 LA6-D5x13-K	1.8	2	M5-M	5	13	18	T	B	K	3g
0 LA6-D5.5x15.5-K	3.1	2	M5-M	5.5	15.5	17	T	B	K	3g
0 LA6-D7x18.5-K	4.5	2	M5-M	7	18.5	17	T	B	K	3g
0 LA6-D9x24.5-K	8	4	G1/8-M	9	24.5	17	T	B	K	7g
0 LA6-D11.5x30.5-K	12.2	4	G1/8-M	11.5	30.5	17	T	B	K	7g
0 LA6-D16.5x46-K	28.2	6	G1/4-M	16.5	46	26	T	B	K	15g
0 LA6-D22x61-K	50.1	6	G1/4-M	22	61	26	T	B	K	19g
0 LA6-D27.5x77-K	78.3	6	G1/4-M	27.5	77	26	T	B	K	27g
0 LA6-D33x92.5-K	112.6	6	G1/4-M	33	92.5	26	T	B	K	35g
