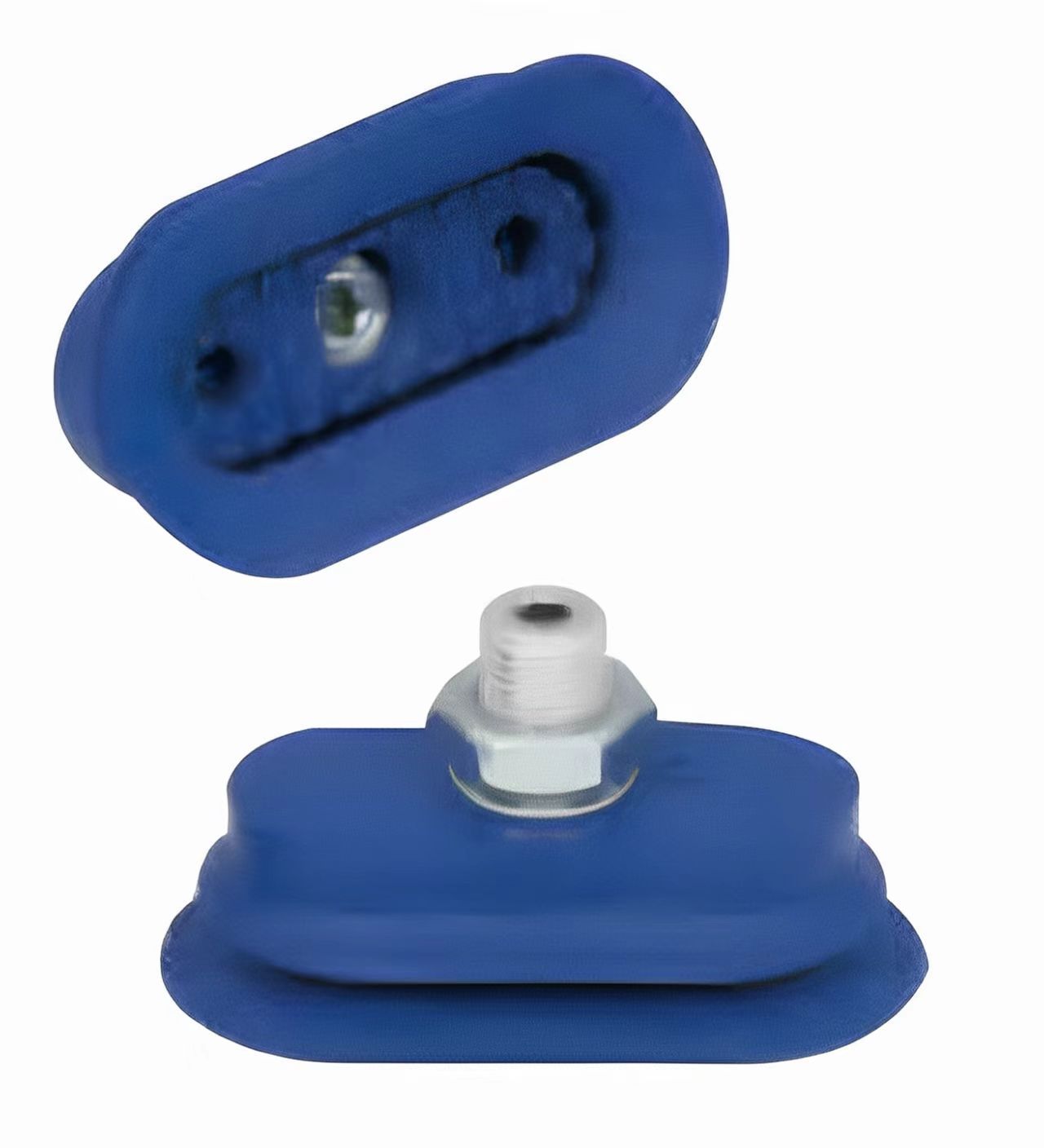

Vacuum Cups LA6-H

A vacuum suction cup, also known as a vacuum gripper or suction nozzle, is an actuating component that uses the pressure difference generated by vacuum negative pressure to adsorb, grasp and move objects. It is one of the most common "hands" in automated equipment and industrial robots (especially handling and loading/unloading robots), and is a key component of end-of-arm tools (EOAT). The core working principle is very simple: by evacuating the air between the suction cup and the surface of the workpiece, a vacuum is formed, and the external atmospheric pressure will firmly press the workpiece onto the suction cup.

Product Details

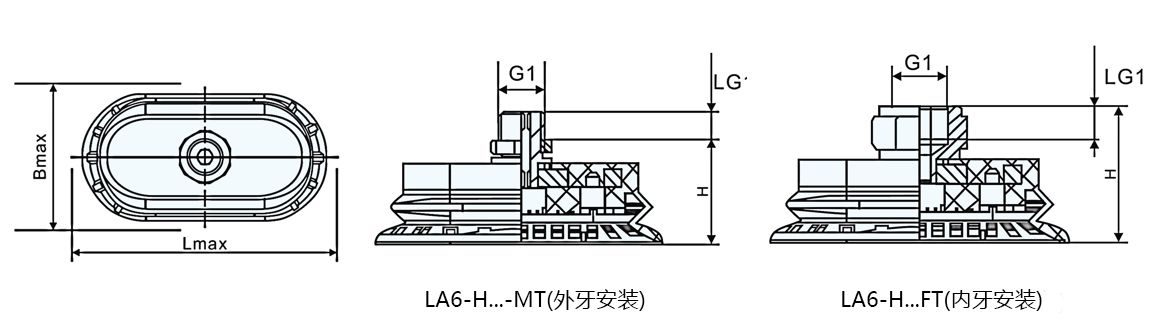

Model	Nozzles(N)¹	Pull off(N)²	Lateral force（N）²	Recommended vacuum Inside(mm)	Dmax(mm)	Lmax(mm)	G1(mm)	H(mm)	LG1(mm)	Weight
0 LA6-H33x63-MT	38	70	73	4	33	63	G3/8-M	27	8	49g
0 LA6-H33x63-FT	38	70	73	4	33	63	G3/8-F	35	9	70g
0 LA6-H43x83-MT	65	132	153	6	43	83	G3/8-M	29.7	8	67g
0 LA6-H43x83-FT	65	132	153	6	43	83	G3/8-F	37.7	9	88g
0 LA6-H59x114-MT	110	234	299	6	59	114	G3/8-M	35.5	8	87g
0 LA6-H59x114-FT	110	234	299	6	59	114	G3/8-F	43.5	9	109g
0 LA6-H140x70-FT	165	355	473	6	75	146	G3/8-F	47.5	9	142g
